Connection and operation

Unpacking the AUTOMIG
After unpacking and prior to use, proceed as follows
(see drawing):
Please note:
AUTOMIG 183i/233i has a permanently fixed trolley.
2
Permissible installation
Mains connection
Connect the machine to the correct mains supply.
Please read the type plate (U
the machine.
yellow/green
brown
black
grey
yellow/green
brown
black
grey
0
l
1
Downloaded from www.Manualslib.com
Warning
Read warning notice
and instruction manual
carefully prior to initial
operation and save the
information for later use.
273i
2
) on the rear side of
1
3x400V
3x230-400V (boost)
L1
L2
L3
N
1x230-400V (boost)
L
N
2
manuals search engine
Important!
In order to avoid destruction
of plugs and cables, good
electric contact is required
when connecting earth cables
and welding hoses to the
machine.
Connection of welding hose
Lifting instructions

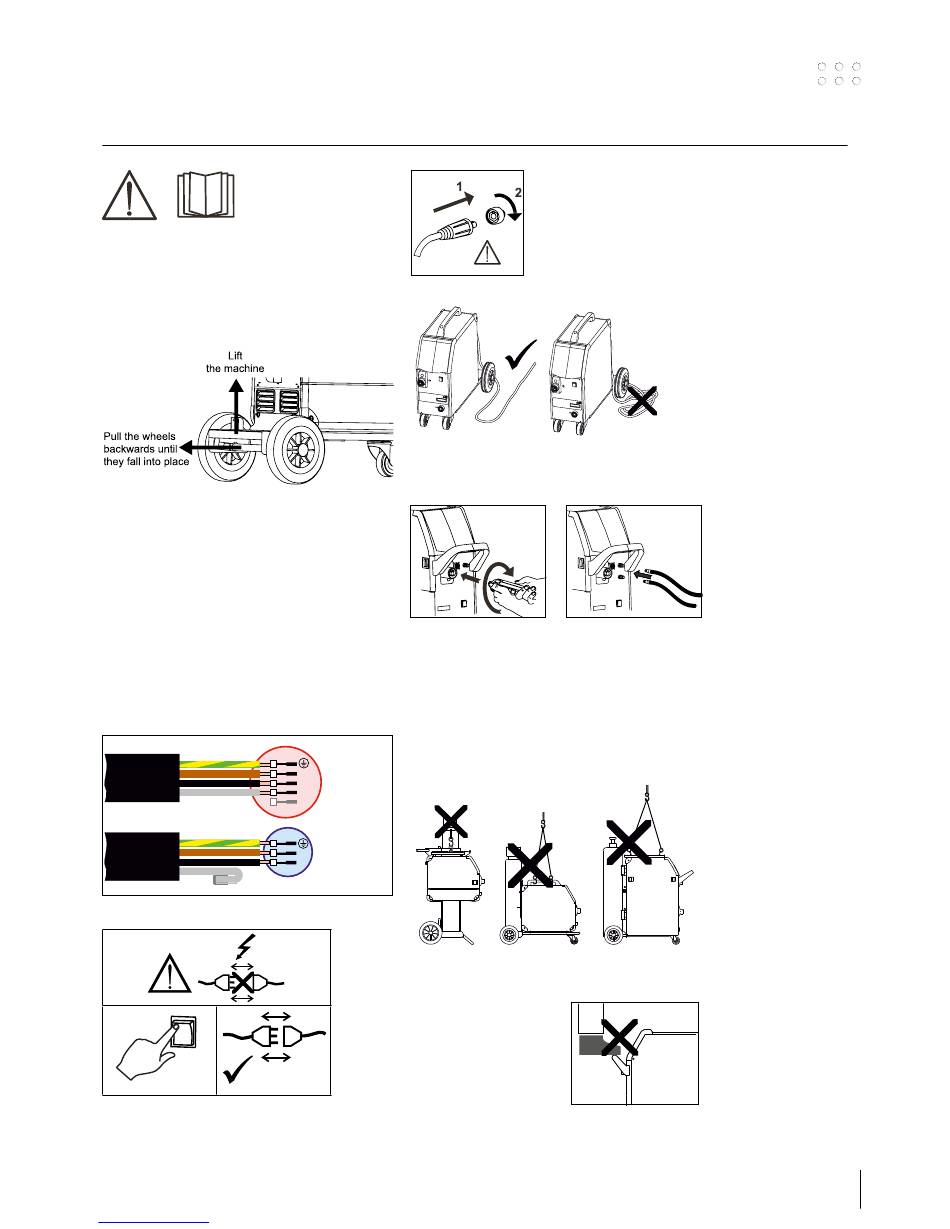

Lifting hooks can be used at the sack barrow for
lifting with a crane (figure 1).
The trolley with four wheels cannot be lifted with a
crane but only manually using the handle (figure 2).
The machine must not be lifted with a mounted gas
cylinder!
Fig. 1 Fig. 2
Do not lift the machine by
the handle.
Do not step on the handle.
9
