Exhaust duct

Note: The device manufacturer does not assume any warranty
for complaints attributable to the pipe section.
The device achieves its optimum performance by means of a
■
short, straight exhaust air pipe and as large a pipe diameter
as possible.
As a result of long rough exhaust air pipes, many pipe bends
■
or pipe diameters that are smaller than 150 mm, the optimum
extraction performance is not achieved and fan noise is
increased.
The pipes or hoses for laying the exhaust air line must
■
consist of non-combustible material.
Round pipes
An inner diameter of 150 mm, but at least 120 mm, is
recommended.
Flat ducts
The inner cross-section must correspond to the diameter of the
round pipes.
dia. 150 mm ca. 177 cm
2
dia. 120 mm ca. 113 cm
2
Flat ducts should not have any sharp deflections.
■
Use sealing strips for deviating pipe diameters.
■

Connecting the appliance to the power supply

Connecting the air extractor
Note: If using an aluminium pipe, smooth the connection area
beforehand.
Attach the air extractor pipe directly to the air-pipe connector.
1.
Connect to air extractor opening.
2.
Seal the joints appropriately.
3.
Connect the power supply
Plug the mains plug into the earthed socket.
1.
If a fixed connection is required, please follow the instructions
2.
in the Electrical Connection section.
24

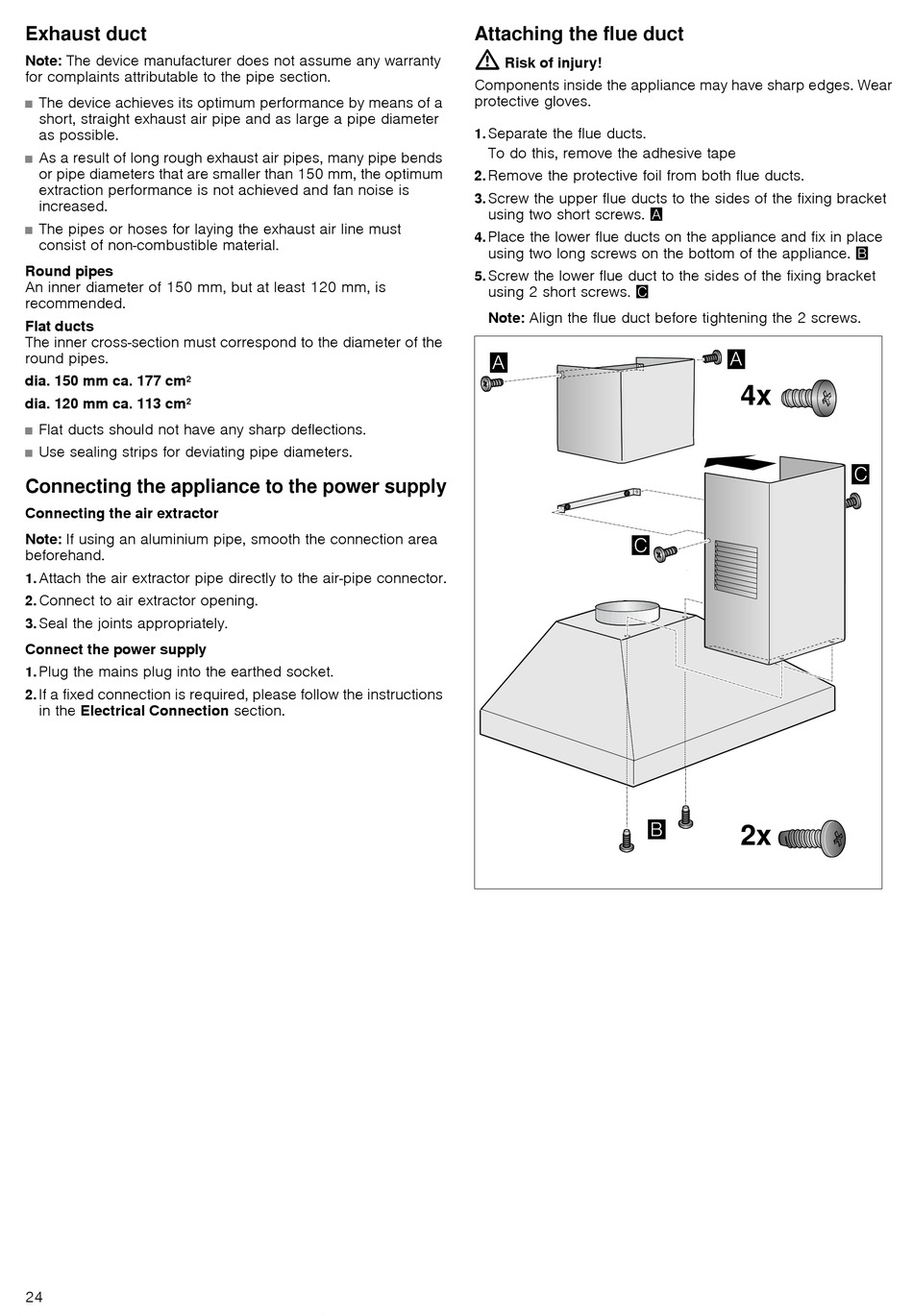

Attaching the flue duct

:
Risk of injury!
Components inside the appliance may have sharp edges. Wear
protective gloves.
Separate the flue ducts.
1.
To do this, remove the adhesive tape
Remove the protective foil from both flue ducts.
2.
Screw the upper flue ducts to the sides of the fixing bracket
3.
using two short screws. ¨
Place the lower flue ducts on the appliance and fix in place
4.
using two long screws on the bottom of the appliance. ©
Screw the lower flue duct to the sides of the fixing bracket
5.
using 2 short screws. ª
Note: Align the flue duct before tightening the 2 screws.
