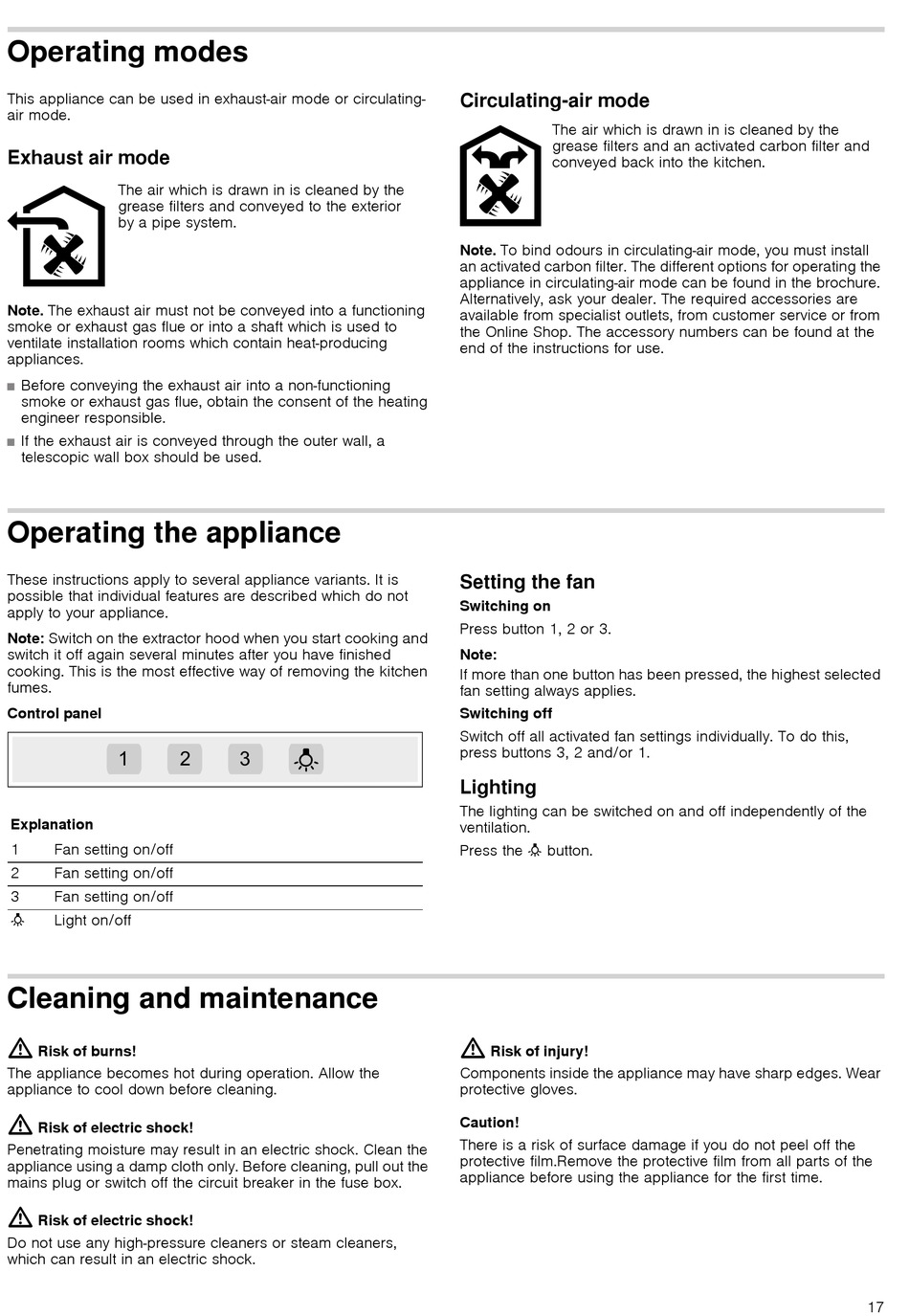

Operating modes

This appliance can be used in exhaust-air mode or circulating-
air mode.
Exhaust air mode
The air which is drawn in is cleaned by the
grease filters and conveyed to the exterior
by a pipe system.
Note. The exhaust air must not be conveyed into a functioning
smoke or exhaust gas flue or into a shaft which is used to
ventilate installation rooms which contain heat-producing
appliances.
Before conveying the exhaust air into a non-functioning
■
smoke or exhaust gas flue, obtain the consent of the heating
engineer responsible.
If the exhaust air is conveyed through the outer wall, a
■
telescopic wall box should be used.

Operating the appliance

These instructions apply to several appliance variants. It is
possible that individual features are described which do not
apply to your appliance.
Note: Switch on the extractor hood when you start cooking and
switch it off again several minutes after you have finished
cooking. This is the most effective way of removing the kitchen
fumes.
Control panel
Explanation
1 Fan setting on/off
2 Fan setting on/off
3 Fan setting on/off
Light on/off
A

Cleaning and maintenance

:
Risk of burns!
The appliance becomes hot during operation. Allow the
appliance to cool down before cleaning.
:
Risk of electric shock!
Penetrating moisture may result in an electric shock. Clean the
appliance using a damp cloth only. Before cleaning, pull out the
mains plug or switch off the circuit breaker in the fuse box.
:
Risk of electric shock!
Do not use any high-pressure cleaners or steam cleaners,
which can result in an electric shock.

Circulating-air mode

Note. To bind odours in circulating-air mode, you must install
an activated carbon filter. The different options for operating the
appliance in circulating-air mode can be found in the brochure.
Alternatively, ask your dealer. The required accessories are
available from specialist outlets, from customer service or from
the Online Shop. The accessory numbers can be found at the
end of the instructions for use.
a n c e O p e r a t i n g t h e a p p l i
Setting the fan
Switching on
Press button 1, 2 or 3.
Note:
If more than one button has been pressed, the highest selected
fan setting always applies.
Switching off
Switch off all activated fan settings individually. To do this,
press buttons 3, 2 and/or 1.
Lighting
The lighting can be switched on and off independently of the
ventilation.
Press the A button.
a n c e C l e a n i n g a n d m a i n t e n
:
Risk of injury!
Components inside the appliance may have sharp edges. Wear
protective gloves.
Caution!
There is a risk of surface damage if you do not peel off the
protective film.Remove the protective film from all parts of the
appliance before using the appliance for the first time.
The air which is drawn in is cleaned by the
grease filters and an activated carbon filter and
conveyed back into the kitchen.
17
