SKIRT HEIGHT AND OPERATION CHECK

Preliminary Operations

1. Empty the hopper (as shown in Use chapter), because the
weight of the waste inside the hopper can affect the skirt
height check.
2. Drive the machine on a level ground that is suitable for
checking the skirt height.
3. Turn the ignition key (61) to "0" and engage the parking
brake.
Side Skirt Check
4. Remove the left and right doors (13 and 12) by turning the
fasteners.

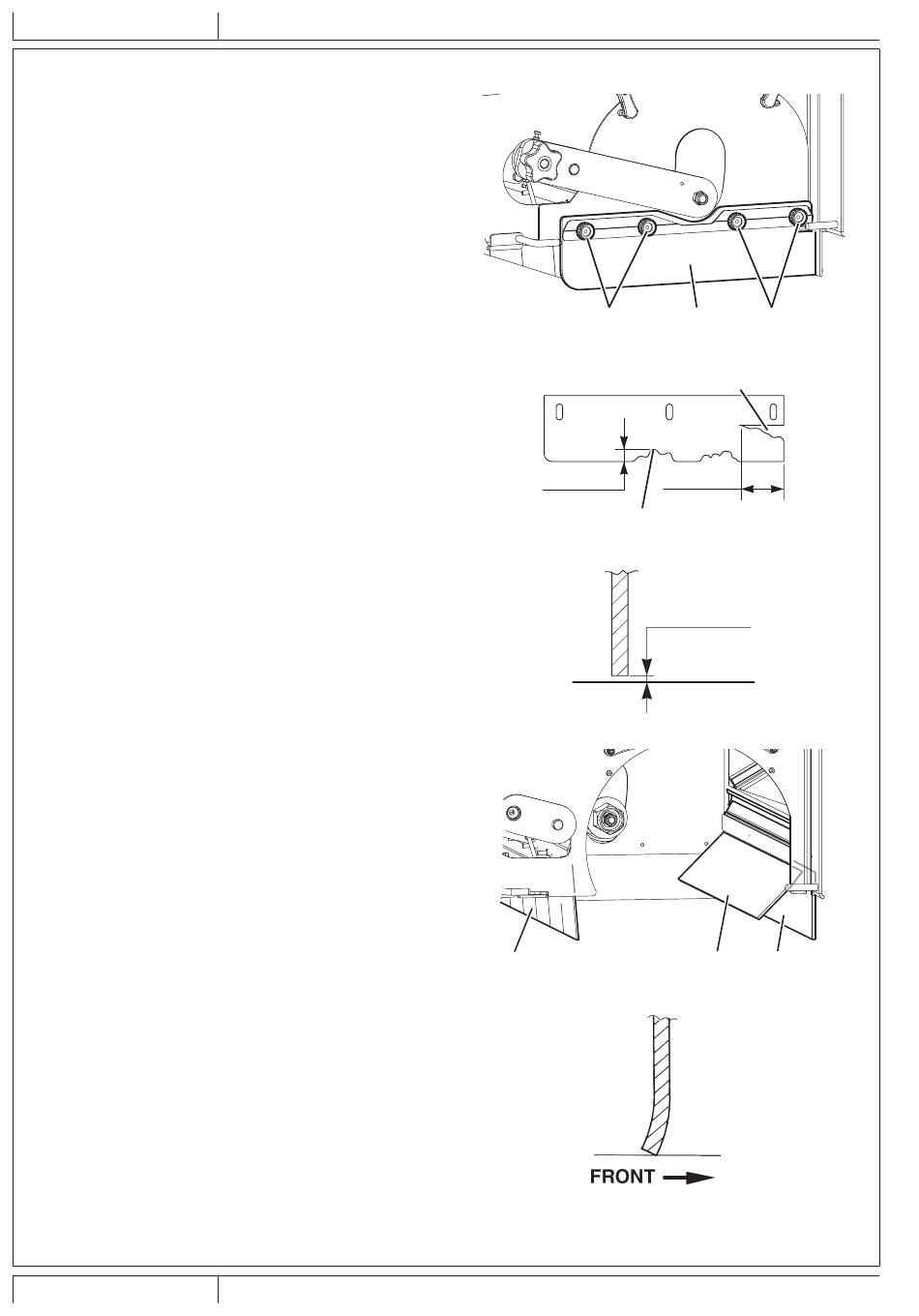

5. Check the side skirts (A, Fig. 15) for integrity.
Replace the skirts when they have cuts (C, Fig. 16) larger
than 20 mm or cracks/tears (D) larger than 10 mm (for skirt
replacement, refer to the Service Manual).
6. Check that the distance from the floor of the side skirts (A,
Fig. 15) is within 0 - 3 mm (Fig. 17).
If necessary, loosen the knobs (B, Fig. 15) and adjust the
skirt position. Then tighten the knobs (B).
Front and Rear Skirt Check
7. Remove the main broom as shown in the relevant
paragraph.
8. Check the front skirt (E, Fig. 18) and rear skirts (F) and (G)
for integrity.
Replace the skirts when they have cuts (C, Fig. 16) larger
than 20 mm or cracks/tears (D) larger than 10 mm.
9. Check that the front (E, Fig. 18) and rear skirt (G) slightly
rub ground without being detached from it (Fig. 19).
10. For the skirt replacement, see the Service Manual.
Reassembly
11. Assemble the components in the reverse order of
disassembly.
28
USER MANUAL
FLOORTEC R 870 - 1464824000
B
Figure 15
> 10 mm > 20 mm
(> 0,4 in) (> 0,8 in)
D
Figure 16
0÷3 mm
(0÷0,12 in)
Figure 17
E
Figure 18
Figure 19
A B
P100602
C
P100603
P100604
F G
P100605
P100606
