7 PREPARING FOR TEST

Please read the information in Section 1 'Working Safely' on
page en-2 before using the equipment. If in doubt, contact
Elcometer or your local Elcometer supplier.

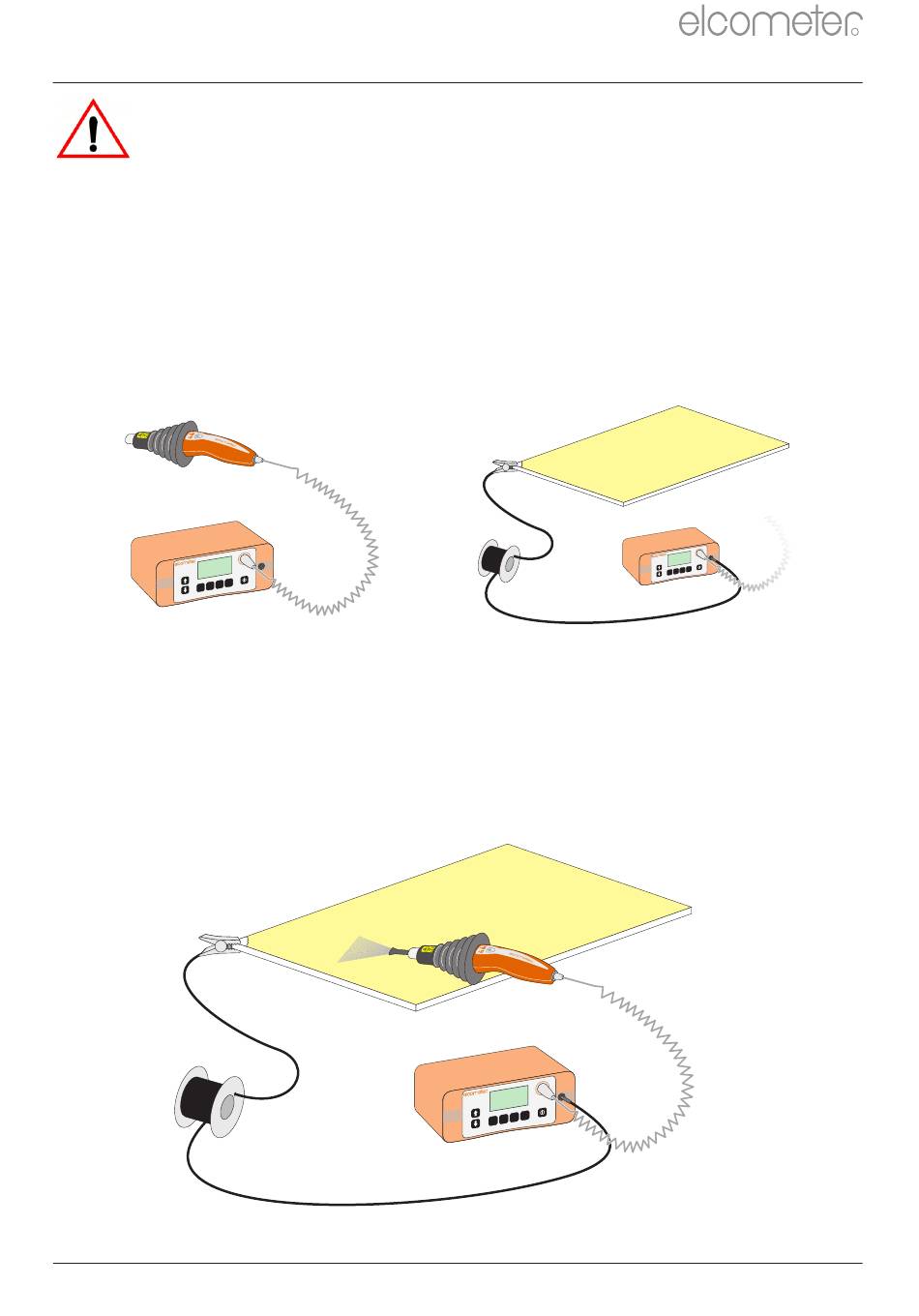

7.1 CONNECT THE CABLES

1 Connect the high voltage probe handle to the instrument using
the grey curly cable (Figure 1).
2 Connect the clamp of the earth signal return cable to an exposed
section of substrate. Plug the other end of the cable into the
instrument (Figure 2).
R
7.2 FIT THE PROBE ACCESSORY
Select the probe accessory best suited for the work being undertaken,
see Section 12 'Probe Accessory Selection' on page en-22, and attach
it to the high voltage probe handle (Figure 3).
www.elcometer.com
Figure 1
R
Figure 3
R
Figure 2
en-14
