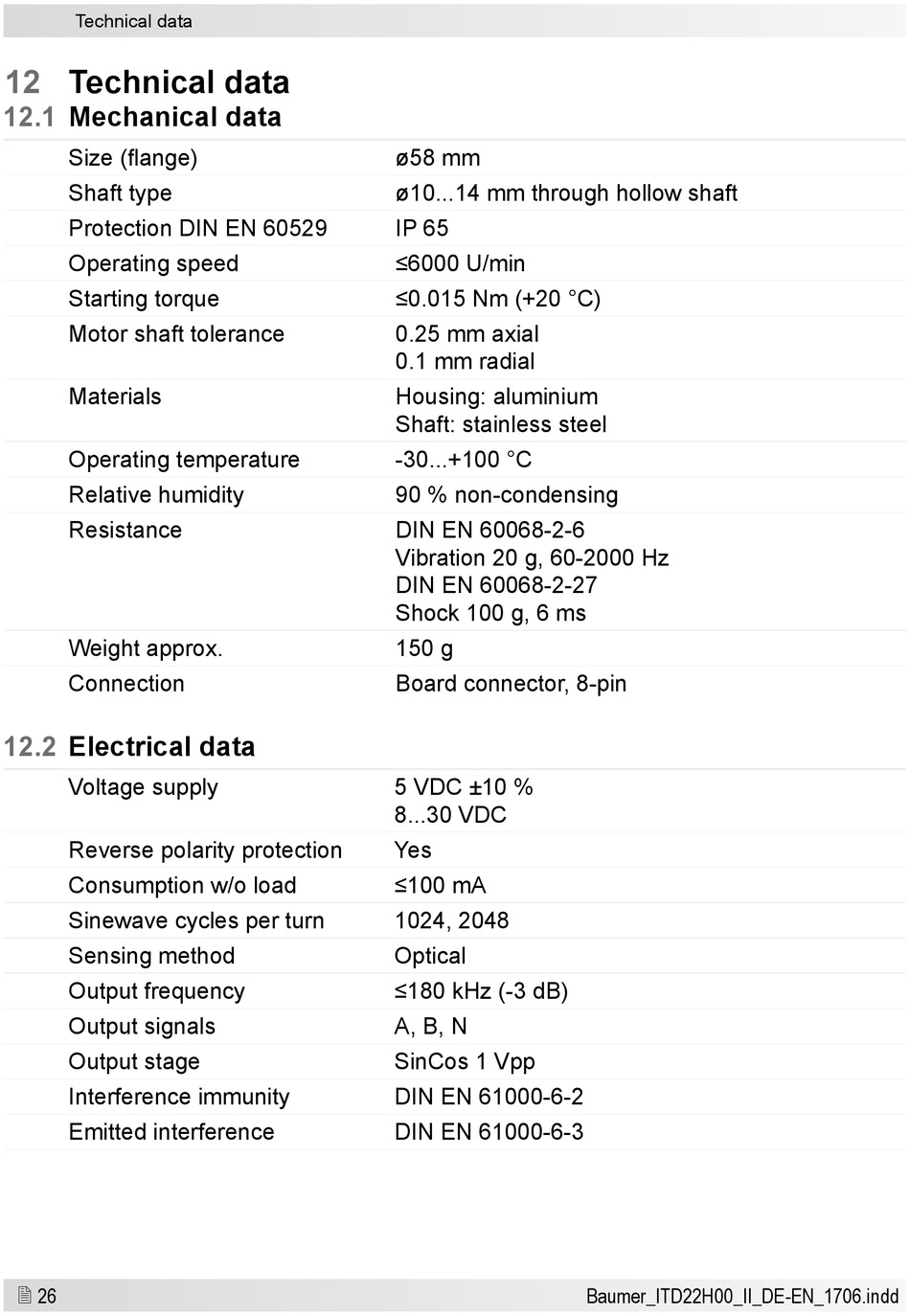

Technical data

12 Technical data
12.1

Mechanical data

Size (flange)
Shaft type
Protection DIN EN 60529
Operating speed
Starting torque
Motor shaft tolerance
Materials
Operating temperature
Relative humidity
Resistance
Weight approx.
Connection
12.2

Electrical data

Voltage supply
Reverse polarity protection
Consumption w/o load
Sinewave cycles per turn
Sensing method
Output frequency
Output signals
Output stage
Interference immunity
Emitted interference
26

ø58 mm
ø10...14 mm through hollow shaft
IP 65
≤6000 U/min
≤0.015 Nm (+20 °C)
0.25 mm axial
0.1 mm radial
Housing: aluminium
Shaft: stainless steel
-30...+100 °C
90 % non-condensing
DIN EN 60068-2-6
Vibration 20 g, 60-2000 Hz
DIN EN 60068-2-27
Shock 100 g, 6 ms
150 g
Board connector, 8-pin
5 VDC ±10 %
8...30 VDC
Yes
≤100 mA
1024, 2048
Optical
≤180 kHz (-3 dB)
A, B, N
SinCos 1 Vpp
DIN EN 61000-6-2
DIN EN 61000-6-3
