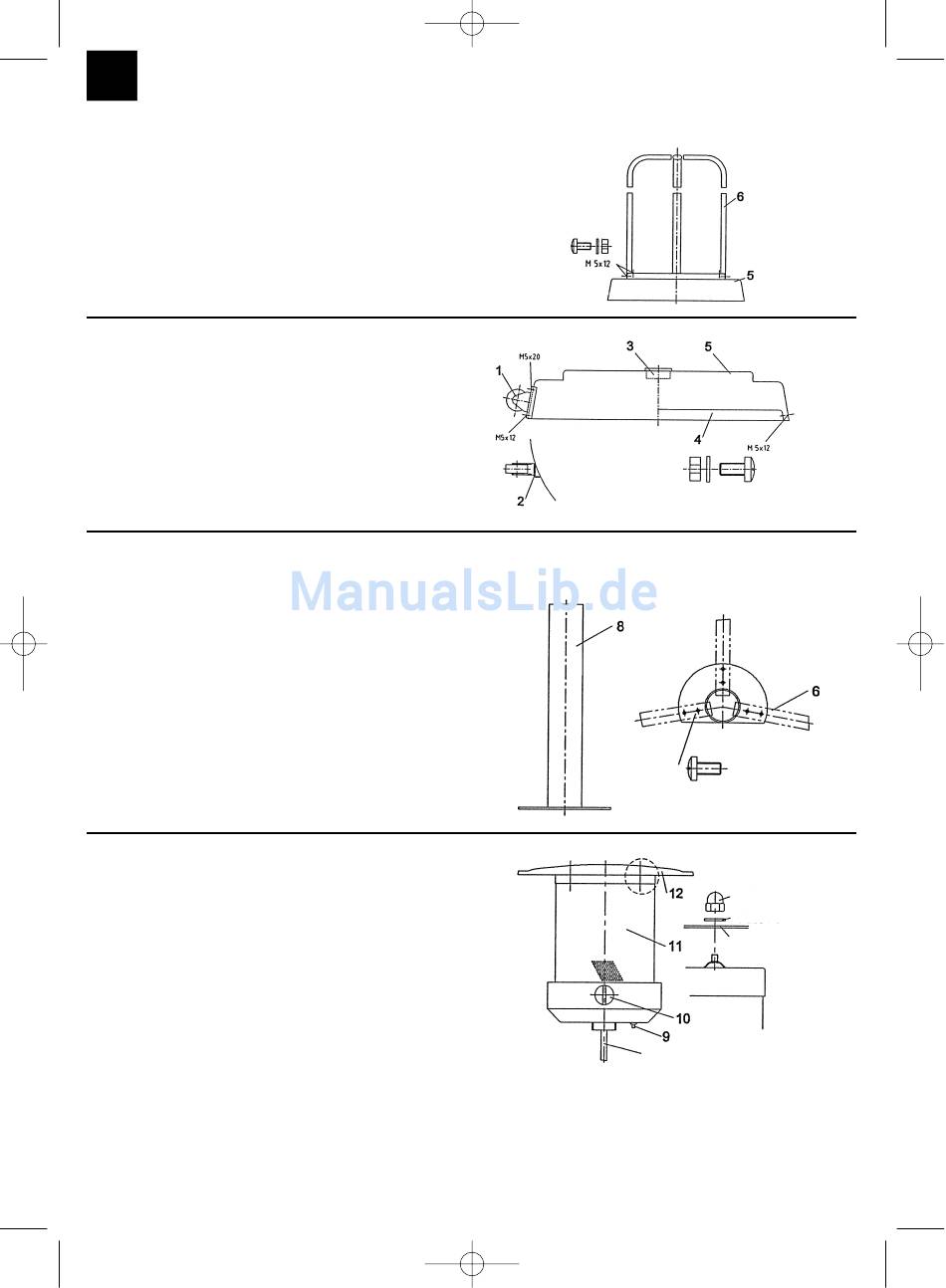

3. Assembly

3.1 Fitting the hoops
Do not tighten the hex nuts yet!
3.2 Fitting the foot base
Fit the wheels.
3.3 Connecting piece
Now tighten the nuts from section 3.2.
If the tube is not exactly vertical, align
with leveling material (washers).
3.4 Reflector / Heating element / Top
The heating element is supplied already assembled
with its fittings, top and hose
Important!
Do not kink or damage the hose.
10
25.10.2001 11:00 Uhr Seite 10
9x raised cheesehead
screw M5x12
9x hex nut M5
9x washer 5.3
2x raised cheesehead screw
M5x20
8x raised cheesehead screw
M5x12
8x hex nut M5
8x washer
6x raised cheesehead screw M5x16
Gas pipe
Cap nut M8
Washer Ø 17
Reflector
