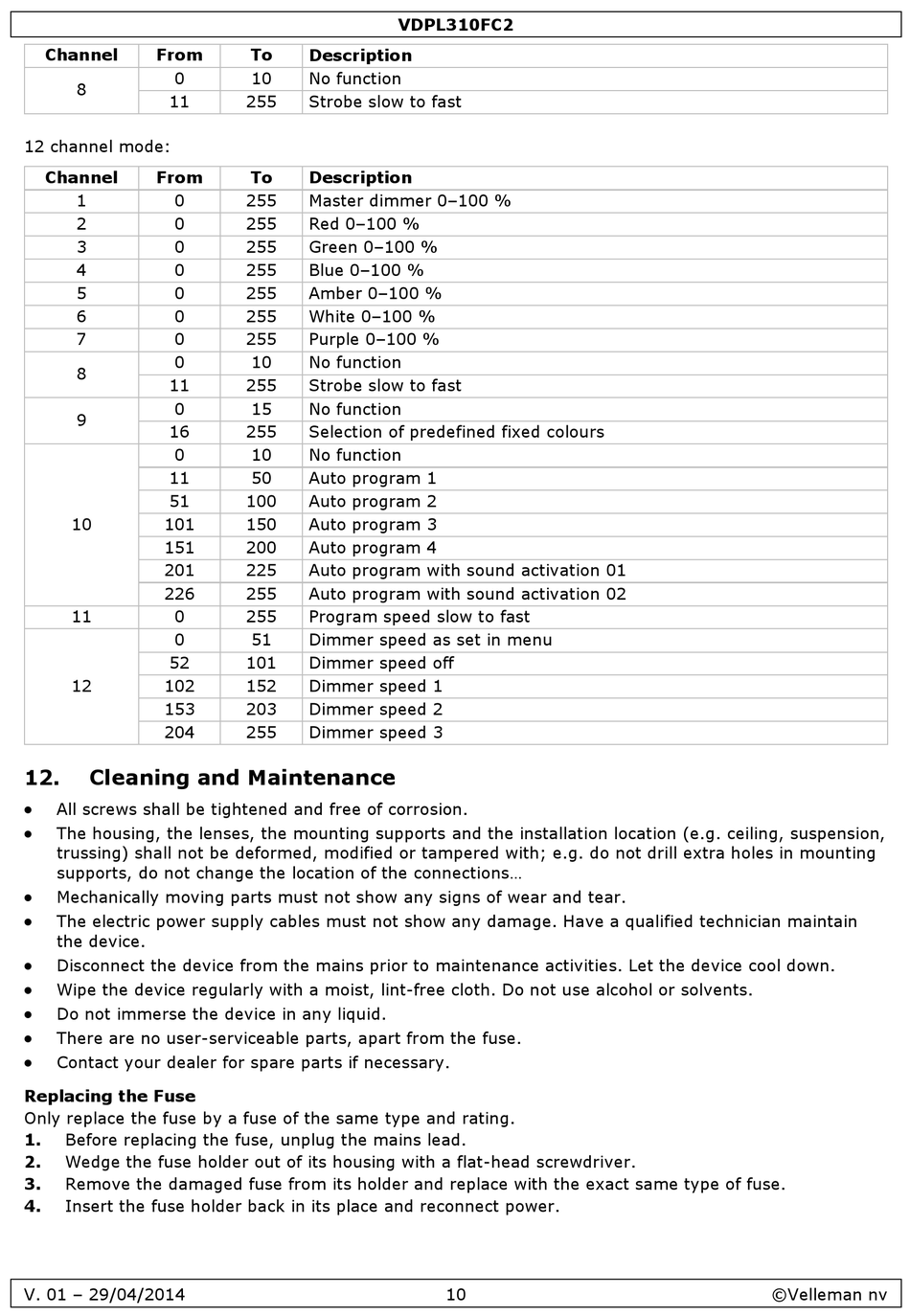

Cleaning And Maintenance - HQ Power VDPL310FC2 Bedienungsanleitung

Channel From
0
8
11
12 channel mode:
Channel From
1 0
2 0
3 0
4 0
5 0
6 0
7 0
0
8
11
0
9
16
0
11
51
10 101
151
201
226
11 0
0
52
12 102
153
204
12.

Cleaning and Maintenance


All screws shall be tightened and free of corrosion.

The housing, the lenses, the mounting supports and the installation location (e.g. ceiling, suspension,
trussing) shall not be deformed, modified or tampered with; e.g. do not drill extra holes in mounting
supports, do not change the location of the connections...

Mechanically moving parts must not show any signs of wear and tear.

The electric power supply cables must not show any damage. Have a qualified technician maintain
the device.

Disconnect the device from the mains prior to maintenance activities. Let the device cool down.

Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.

Do not immerse the device in any liquid.

There are no user-serviceable parts, apart from the fuse.

Contact your dealer for spare parts if necessary.
Replacing the Fuse
Only replace the fuse by a fuse of the same type and rating.
1. Before replacing the fuse, unplug the mains lead.
2. Wedge the fuse holder out of its housing with a flat-head screwdriver.
3. Remove the damaged fuse from its holder and replace with the exact same type of fuse.
4. Insert the fuse holder back in its place and reconnect power.
V. 01 – 29/04/2014
VDPL310FC2
To Description
10 No function
255 Strobe slow to fast
To Description
255 Master dimmer 0–100 %
255 Red 0–100 %
255 Green 0–100 %
255 Blue 0–100 %
255 Amber 0–100 %
255 White 0–100 %
255 Purple 0–100 %
10 No function
255 Strobe slow to fast
15 No function
255 Selection of predefined fixed colours
10 No function
50 Auto program 1
100 Auto program 2
150 Auto program 3
200 Auto program 4
225 Auto program with sound activation 01
255 Auto program with sound activation 02
255 Program speed slow to fast
51 Dimmer speed as set in menu
101 Dimmer speed off
152 Dimmer speed 1
203 Dimmer speed 2
255 Dimmer speed 3
10 ©Velleman nv
