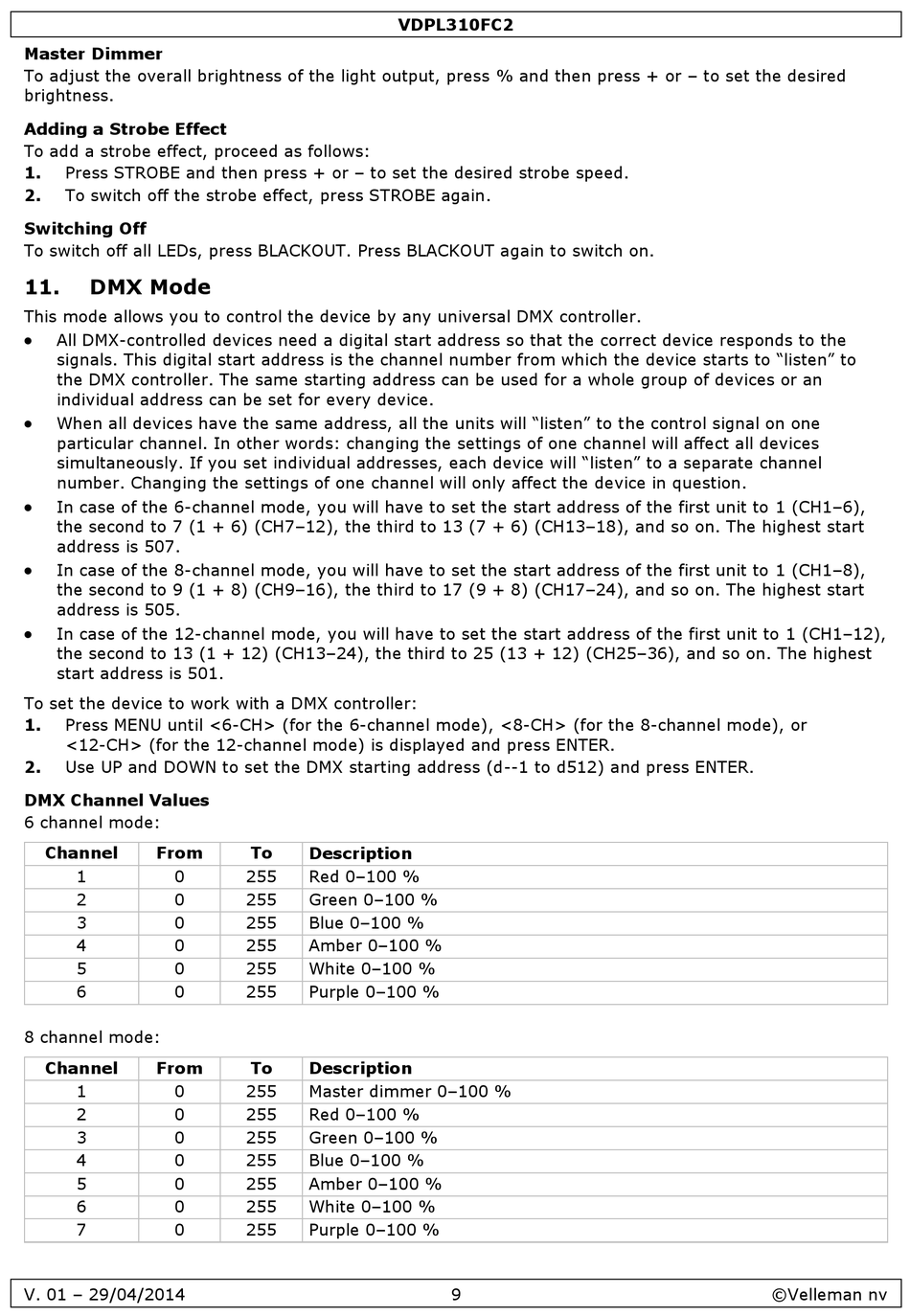

Master Dimmer

To adjust the overall brightness of the light output, press % and then press + or – to set the desired
brightness.
Adding a Strobe Effect
To add a strobe effect, proceed as follows:
1. Press STROBE and then press + or – to set the desired strobe speed.
2. To switch off the strobe effect, press STROBE again.

Switching Off

To switch off all LEDs, press BLACKOUT. Press BLACKOUT again to switch on.
11.

DMX Mode

This mode allows you to control the device by any universal DMX controller.

All DMX-controlled devices need a digital start address so that the correct device responds to the
signals. This digital start address is the channel number from which the device starts to "listen" to
the DMX controller. The same starting address can be used for a whole group of devices or an
individual address can be set for every device.

When all devices have the same address, all the units will "listen" to the control signal on one
particular channel. In other words: changing the settings of one channel will affect all devices
simultaneously. If you set individual addresses, each device will "listen" to a separate channel
number. Changing the settings of one channel will only affect the device in question.

In case of the 6-channel mode, you will have to set the start address of the first unit to 1 (CH1–6),
the second to 7 (1 + 6) (CH7–12), the third to 13 (7 + 6) (CH13–18), and so on. The highest start
address is 507.

In case of the 8-channel mode, you will have to set the start address of the first unit to 1 (CH1–8),
the second to 9 (1 + 8) (CH9–16), the third to 17 (9 + 8) (CH17–24), and so on. The highest start
address is 505.

In case of the 12-channel mode, you will have to set the start address of the first unit to 1 (CH1–12),
the second to 13 (1 + 12) (CH13–24), the third to 25 (13 + 12) (CH25–36), and so on. The highest
start address is 501.
To set the device to work with a DMX controller:
1. Press MENU until <6-CH> (for the 6-channel mode), <8-CH> (for the 8-channel mode), or
<12-CH> (for the 12-channel mode) is displayed and press ENTER.
2. Use UP and DOWN to set the DMX starting address (d--1 to d512) and press ENTER.
DMX Channel Values
6 channel mode:
Channel From
1 0
2 0
3 0
4 0
5 0
6 0
8 channel mode:
Channel From
1 0
2 0
3 0
4 0
5 0
6 0
7 0
V. 01 – 29/04/2014
VDPL310FC2
To
Description
255 Red 0–100 %
255 Green 0–100 %
255 Blue 0–100 %
255 Amber 0–100 %
255 White 0–100 %
255 Purple 0–100 %
To Description
255 Master dimmer 0–100 %
255 Red 0–100 %
255 Green 0–100 %
255 Blue 0–100 %
255 Amber 0–100 %
255 White 0–100 %
255 Purple 0–100 %
