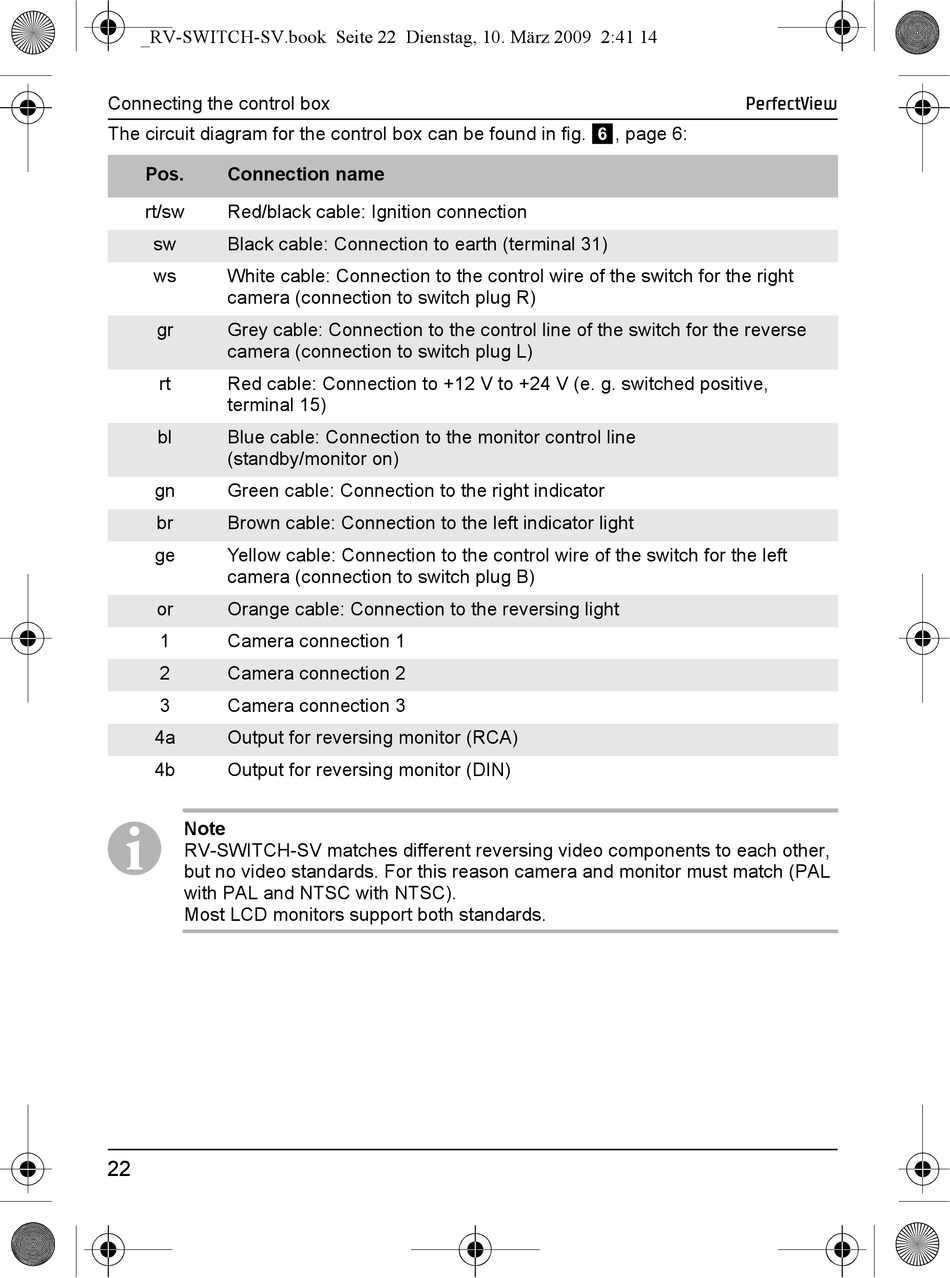

Connecting the control box
The circuit diagram for the control box can be found in fig. 6, page 6:
Pos. Connection name
rt/sw Red/black cable: Ignition connection
sw Black cable: Connection to earth (terminal 31)
ws White cable: Connection to the control wire of the switch for the right
camera (connection to switch plug R)
gr Grey cable: Connection to the control line of the switch for the reverse
camera (connection to switch plug L)
rt Red cable: Connection to +12 V to +24 V (e. g. switched positive,
terminal 15)
bl Blue cable: Connection to the monitor control line
(standby/monitor on)
gn Green cable: Connection to the right indicator
br Brown cable: Connection to the left indicator light
ge Yellow cable: Connection to the control wire of the switch for the left
camera (connection to switch plug B)
or Orange cable: Connection to the reversing light
1 Camera connection 1
2 Camera connection 2
3 Camera connection 3
4a Output for reversing monitor (RCA)
4b Output for reversing monitor (DIN)
Note
I
RV-SWITCH-SV matches different reversing video components to each other,
but no video standards. For this reason camera and monitor must match (PAL
with PAL and NTSC with NTSC).
Most LCD monitors support both standards.
