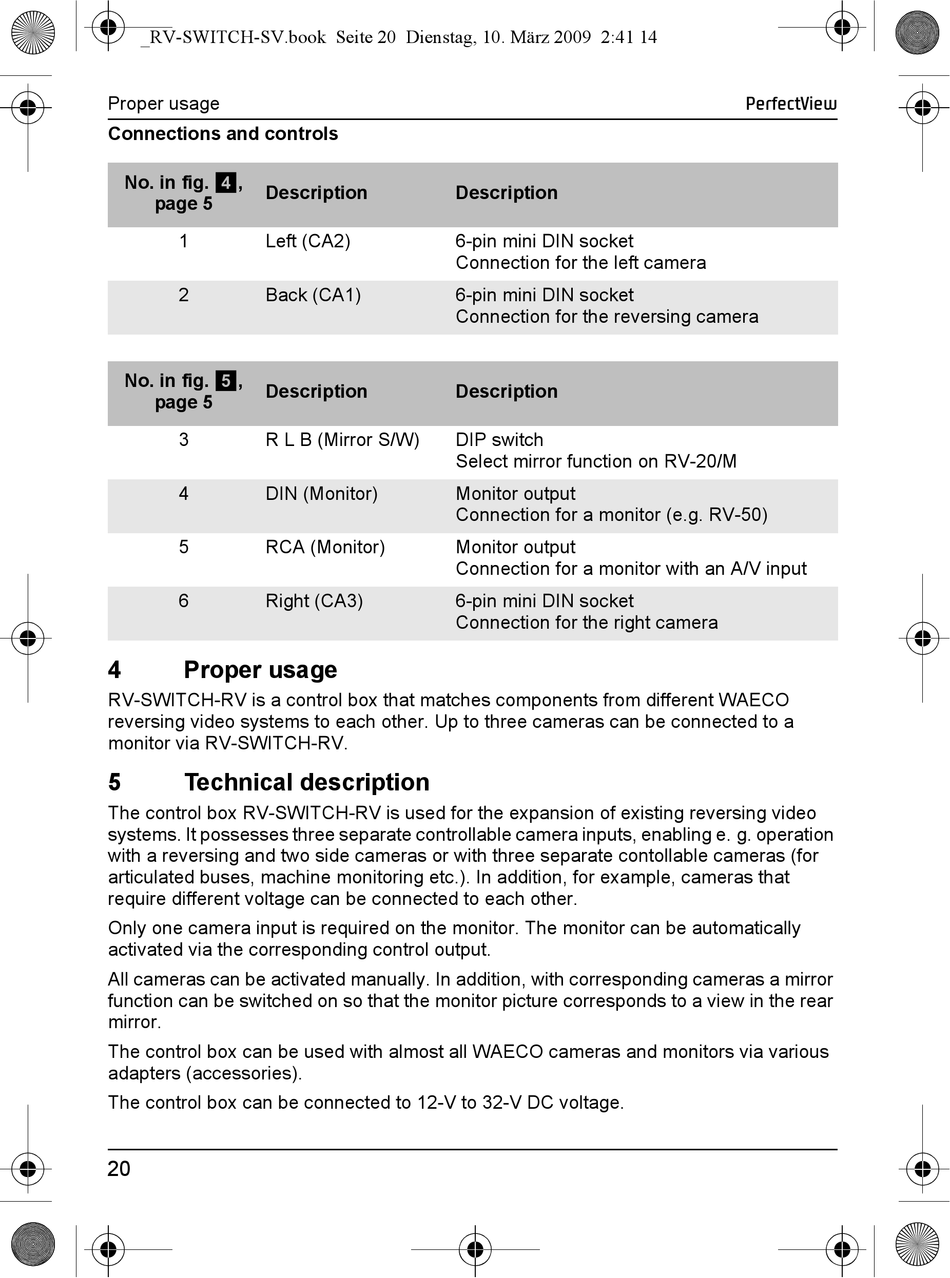

Proper Usage; Technical Description - Waeco PerfectView Accessory Bedienungsanleitung

_RV-SWITCH-SV.book Seite 20 Dienstag, 10. März 2009 2:41 14

Proper usage

Connections and controls
No. in fig. 4,
Description
page 5
1 Left (CA2)
2 Back (CA1)
No. in fig. 5,
Description
page 5
3 R L B (Mirror S/W)
4 DIN (Monitor)
5 RCA (Monitor)
6 Right (CA3)
4 Proper usage
RV-SWITCH-RV is a control box that matches components from different WAECO
reversing video systems to each other. Up to three cameras can be connected to a
monitor via RV-SWITCH-RV.
5

Technical description

The control box RV-SWITCH-RV is used for the expansion of existing reversing video
systems. It possesses three separate controllable camera inputs, enabling e. g. operation
with a reversing and two side cameras or with three separate contollable cameras (for
articulated buses, machine monitoring etc.). In addition, for example, cameras that
require different voltage can be connected to each other.
Only one camera input is required on the monitor. The monitor can be automatically
activated via the corresponding control output.
All cameras can be activated manually. In addition, with corresponding cameras a mirror
function can be switched on so that the monitor picture corresponds to a view in the rear
mirror.
The control box can be used with almost all WAECO cameras and monitors via various
adapters (accessories).
The control box can be connected to 12-V to 32-V DC voltage.
20
Description
6-pin mini DIN socket
Connection for the left camera
6-pin mini DIN socket
Connection for the reversing camera
Description
DIP switch
Select mirror function on RV-20/M
Monitor output
Connection for a monitor (e.g. RV-50)
Monitor output
Connection for a monitor with an A/V input
6-pin mini DIN socket
Connection for the right camera
