Storch 120 Compact Bedienungsanleitung Seite 58

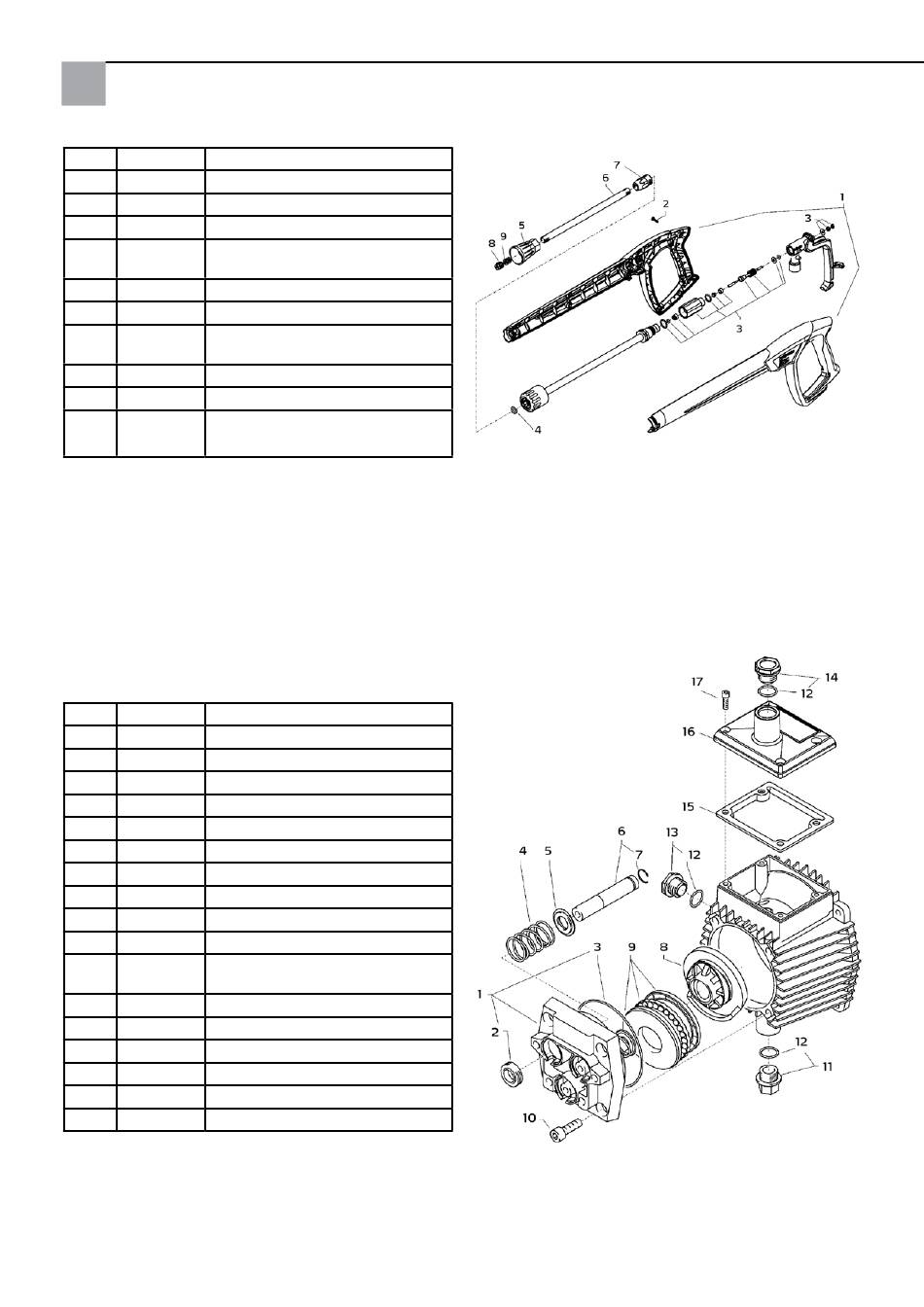

Item Art. No. Designation
1 65 62 28 Pistol shell half right + left
2 65 62 29 Screw 3.5 x 14
3 65 62 31 Repair kit spray gun handle
4 65 65 59 O-ring ST30 for high pressure
hose and lance
5 65 62 32 Tip guard M12 x 1
6 65 62 33 Pipe 500 mm
7 65 62 34 ST30 Nipple M22 x 1.5/R1/4" with
ISK
8 65 63 29 Flat jet nozzle
9 65 62 37 Aluminium seal ring
65 65 33 High pressure spray gun handle
Not
illustra-
ted
Gearbox part
Item Art. No. Designation
1 65 62 52 Housing platen
2 65 62 53 Oil seal 14 x 24 x 7
3 65 62 54 O-ring 83 x 2
4 65 62 56 Plunger spring
5 65 62 57 Spring pressure washer 14 mm
6 65 62 58 Plunger 14 mm AZ-L
7 65 62 59 Retaining ring 14 mm
8 65 63 31 Swash plate 9.5°
9 65 62 62 Axial grooved ball bearing 3-part
10 65 62 63 Hexagon socket screw M8 x 25
11 65 62 64 Oil drain plug M18 x 1.5 with
magnet
12 65 62 66 O-ring 12 x 2
13 65 64 33 Oil sight glass
14 65 64 32 Oil cap red
15 65 62 67 Oil cap seal
16 65 62 68 Cover for oil housing
17 65 60 98 Hexagon socket screw M5 x 12
58
