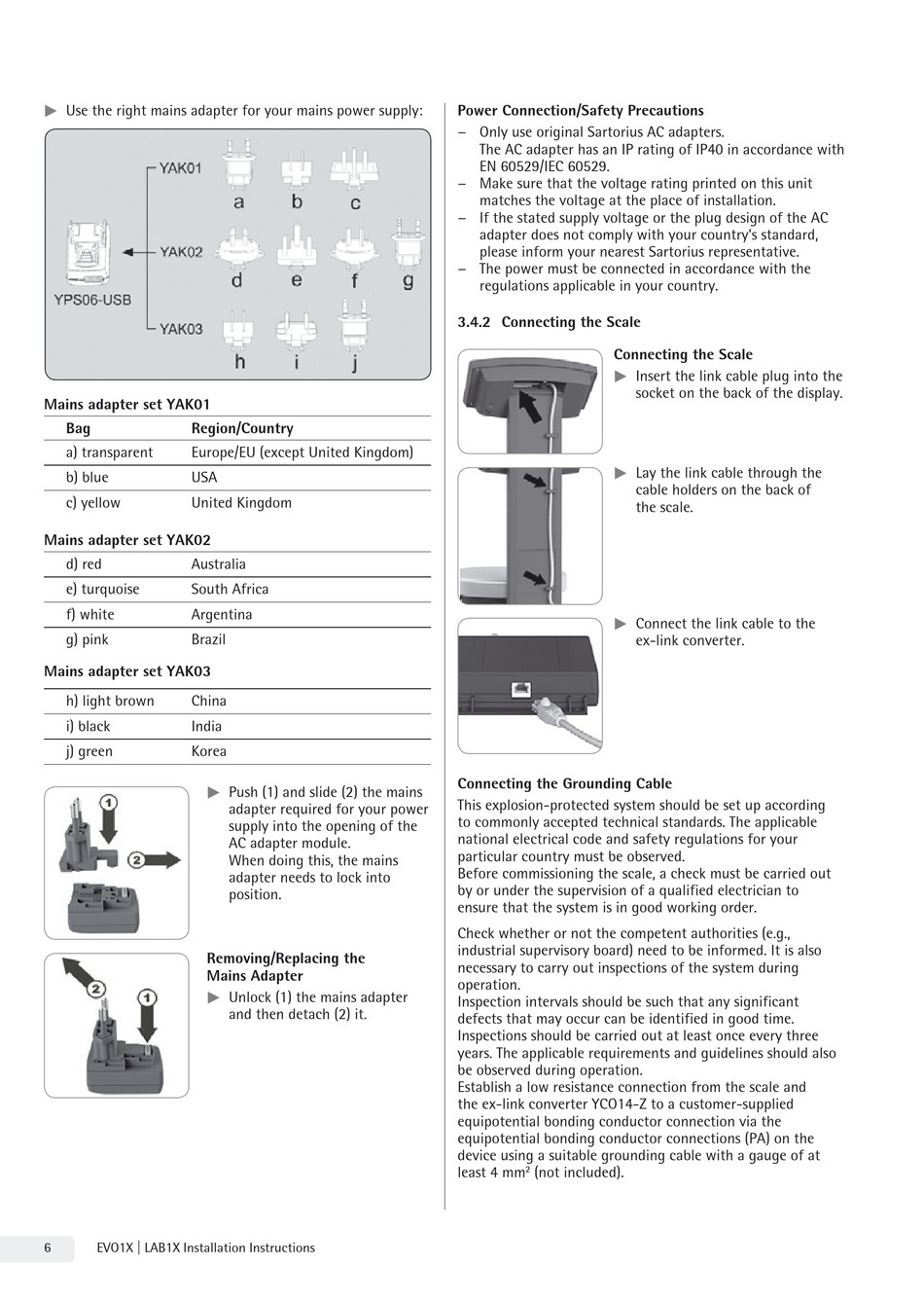

Sartorius PMA.Evolution EVO1X Installationsanleitung Seite 6

t
Use the right mains adapter for your mains power supply:
Mains adapter set YAK01
Bag Region/Country
a) transparent Europe/EU (except United Kingdom)
b) blue USA
c) yellow United Kingdom
Mains adapter set YAK02
d) red Australia
e) turquoise South Africa
f) white Argentina
g) pink Brazil
Mains adapter set YAK03
h) light brown China
i) black India
j) green Korea
t
Removing/Replacing the
Mains Adapter
t
6 EVO1X | LAB1X Installation Instructions
Push (1) and slide (2) the mains
adapter required for your power
supply into the opening of the
AC adapter module.
When doing this, the mains
adapter needs to lock into
position.
Unlock (1) the mains adapter
and then detach (2) it.
Power Connection/Safety Precautions
− Only use original Sartorius AC adapters.
The AC adapter has an IP rating of IP40 in accordance with
EN 60529/IEC 60529.
− Make sure that the voltage rating printed on this unit
matches the voltage at the place of installation.
− If the stated supply voltage or the plug design of the AC
adapter does not comply with your country's standard,
please inform your nearest Sartorius representative.
− The power must be connected in accordance with the
regulations applicable in your country.
3.4.2 Connecting the Scale
Connecting the Scale
t
t
t
Connecting the Grounding Cable
This explosion-protected system should be set up according
to commonly accepted technical standards. The applicable
national electrical code and safety regulations for your
particular country must be observed.
Before commissioning the scale, a check must be carried out
by or under the supervision of a qualified electrician to
ensure that the system is in good working order.
Check whether or not the competent authorities (e.g.,
industrial supervisory board) need to be informed. It is also
necessary to carry out inspections of the system during
operation.
Inspection intervals should be such that any significant
defects that may occur can be identified in good time.
Inspections should be carried out at least once every three
years. The applicable requirements and guidelines should also
be observed during operation.
Establish a low resistance connection from the scale and
the ex-link converter YCO14-Z to a customer-supplied
equipotential bonding conductor connection via the
equipotential bonding conductor connections (PA) on the
device using a suitable grounding cable with a gauge of at
2
least 4 mm (not included).
Insert the link cable plug into the
socket on the back of the display.
Lay the link cable through the
cable holders on the back of
the scale.
Connect the link cable to the
ex-link converter.
