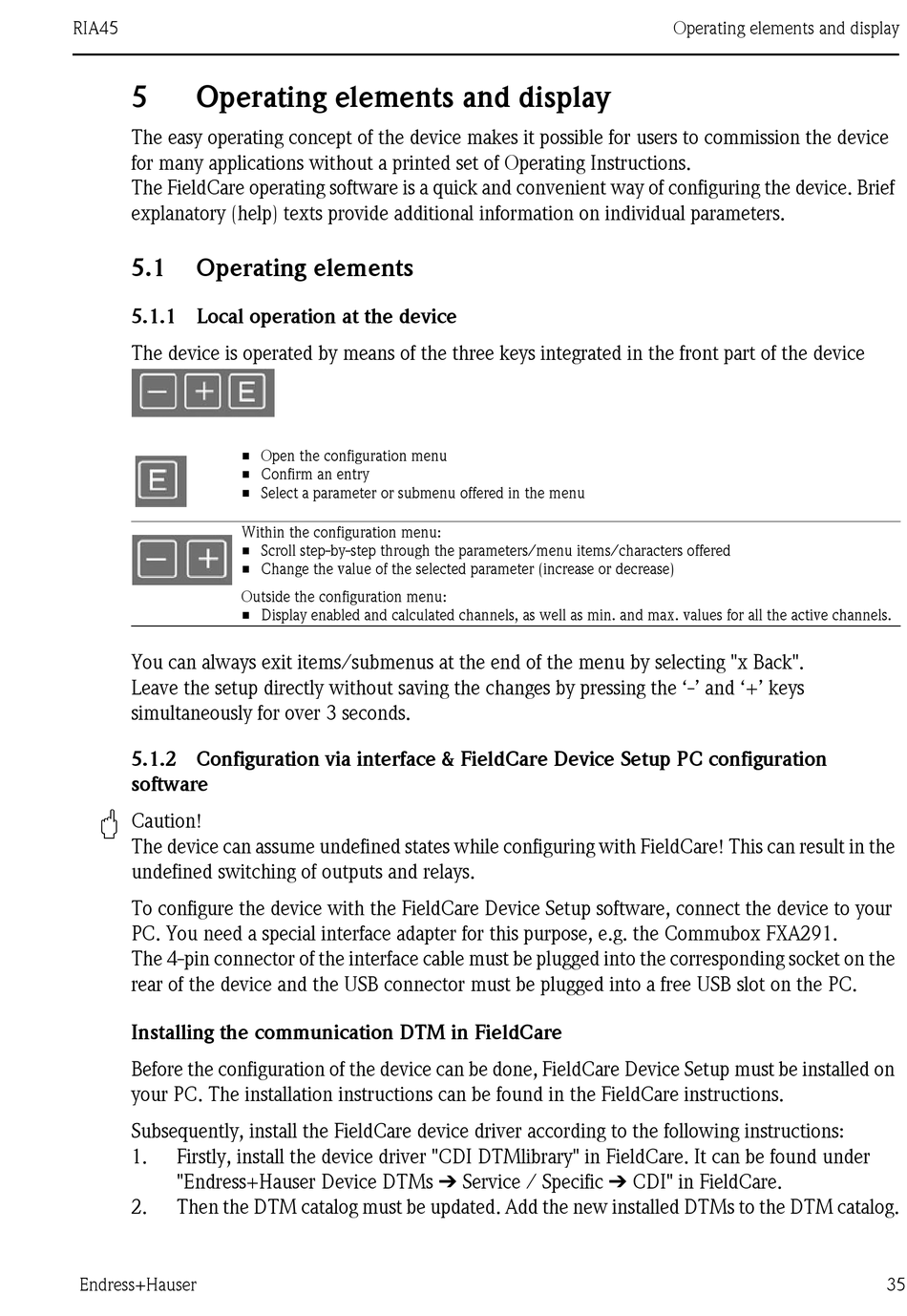

Operating elements and display

The easy operating concept of the device makes it possible for users to commission the device
for many applications without a printed set of Operating Instructions.
The FieldCare operating software is a quick and convenient way of configuring the device. Brief
explanatory (help) texts provide additional information on individual parameters.
5.1

Operating elements

5.1.1 Local operation at the device
The device is operated by means of the three keys integrated in the front part of the device
• Open the configuration menu
• Confirm an entry
• Select a parameter or submenu offered in the menu
Within the configuration menu:
• Scroll step-by-step through the parameters/menu items/characters offered
• Change the value of the selected parameter (increase or decrease)
Outside the configuration menu:
• Display enabled and calculated channels, as well as min. and max. values for all the active channels.
You can always exit items/submenus at the end of the menu by selecting "x Back".
Leave the setup directly without saving the changes by pressing the '-' and '+' keys
simultaneously for over 3 seconds.
5.1.2 Configuration via interface & FieldCare Device Setup PC configuration
software
"
Caution!
The device can assume undefined states while configuring with FieldCare! This can result in the
undefined switching of outputs and relays.
To configure the device with the FieldCare Device Setup software, connect the device to your
PC. You need a special interface adapter for this purpose, e.g. the Commubox FXA291.
The 4-pin connector of the interface cable must be plugged into the corresponding socket on the
rear of the device and the USB connector must be plugged into a free USB slot on the PC.
Installing the communication DTM in FieldCare
Before the configuration of the device can be done, FieldCare Device Setup must be installed on
your PC. The installation instructions can be found in the FieldCare instructions.
Subsequently, install the FieldCare device driver according to the following instructions:
1. Firstly, install the device driver "CDI DTMlibrary" in FieldCare. It can be found under
"Endress+Hauser Device DTMs É Service / Specific É CDI" in FieldCare.
2. Then the DTM catalog must be updated. Add the new installed DTMs to the DTM catalog.
