7. Working life

7.2.5 Motor limiting table

Version Max. motor weight in kg Centre of gravity distance
in mm
RK MultiLine II Z 16 400

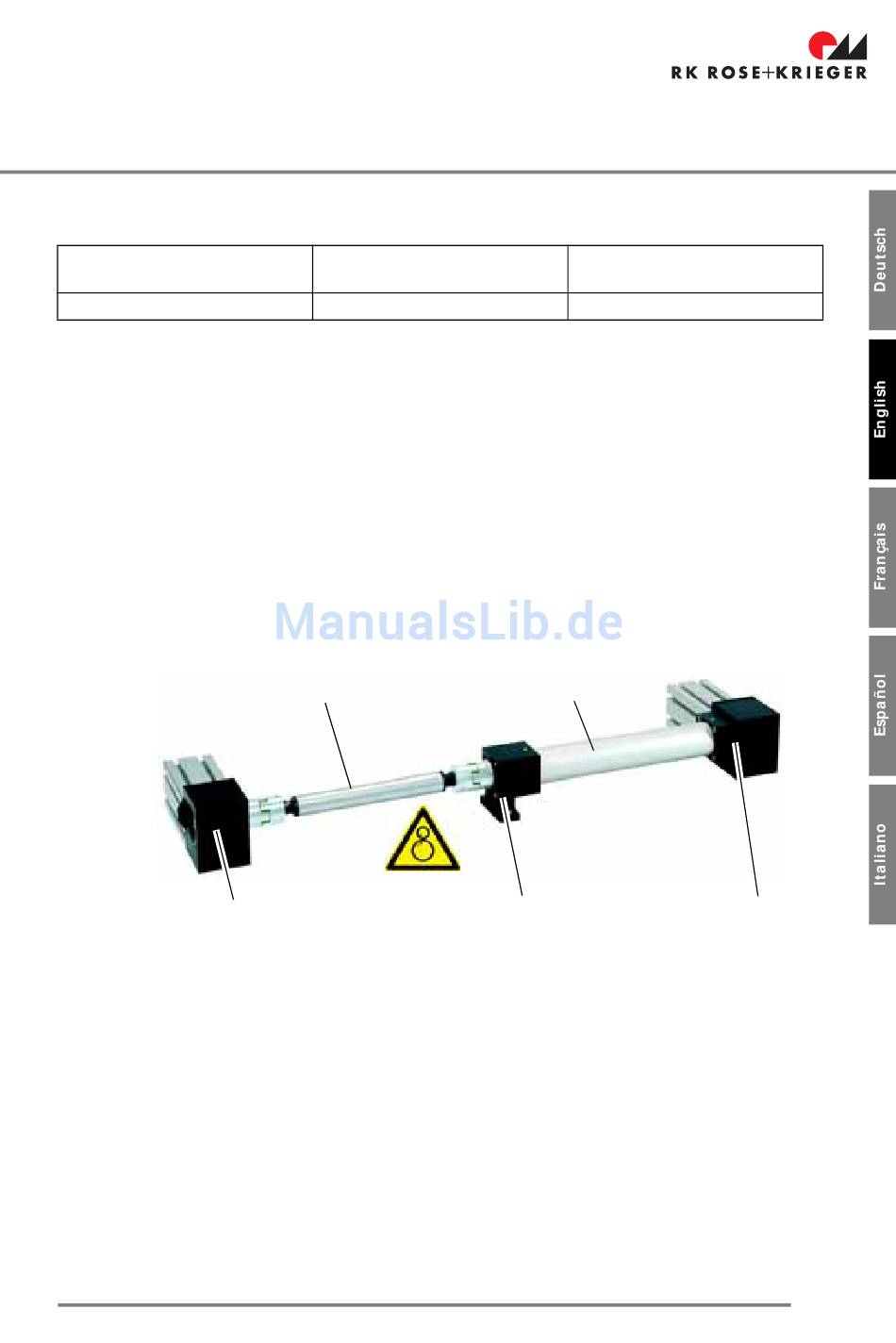

Transfer units
Linear units arranged in parallel must be matched to the transfer shaft to transfer torques. This
can - just as with the motor - be fixed to the steering with couplings, depending on the version.
If the designed installation length is greater than the maximum installation length or maximum
speed determined from the "estimated shaft design" formula, then a stationary bearing support
is used to absorb the corresponding loads.
Estimated shaft design:
max. installation length [mm] = (2720 - speed [min-1]) + 2 x 107.5
max. speed [min-1] = 2720 - L [mm]
The interface combinations determined by RK Rose+Krieger GmbH from coupling and transfer
unit are binding.
without protection with protection
Steering Stationary bearing support Steering
