7. Working life

7.2.2 Torques

Torque guideline values for metric shaft screws to DIN EN ISO 4762 at 90% use of the 0.2% ex-
pansion limit, for a coefficient of fiction of 0.14.
Dimension
M4
M5
M6
M8
M10
Pay attention to the information in the installation instructions for the accessories. This contains
information for installing your application.

7.2.3 Installation with fixings

In all installation work, you must adhere to the specified torques for the screws used. Note the
tempering for the screws and separate information for accessories supplied. Only compliant con-
ditions will guarantee the safety and long working life of the linear shaft. Take the values from the
table in these instructions.

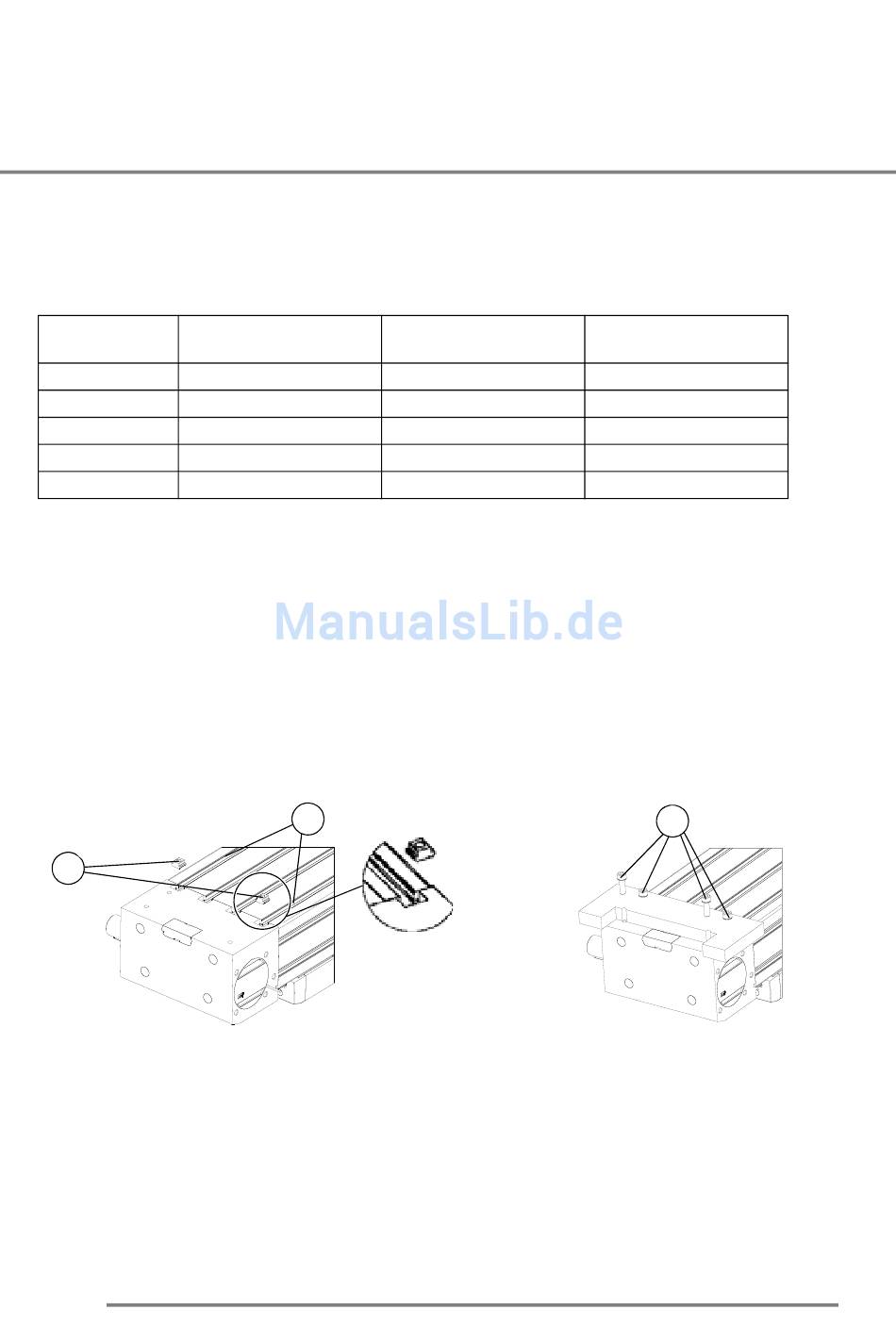

Sliding block fixings
This linear unit can be fixed with RK sliding block fixings (1) on a suitable base. The RK sliding block
fixings are swivelled, positioned and fixed in the section grooves (2) on the underside.
1
44
Rigidity 8.8
Torque M (Nm)
A
3,0
5,9
10
25
49
2
Rigidity 10.9
Torque M (Nm)
A
4,4
8,7
15
35
72
Rigidity 12.9
Torque M (Nm)
A
5,1
10
15
43
84
3
