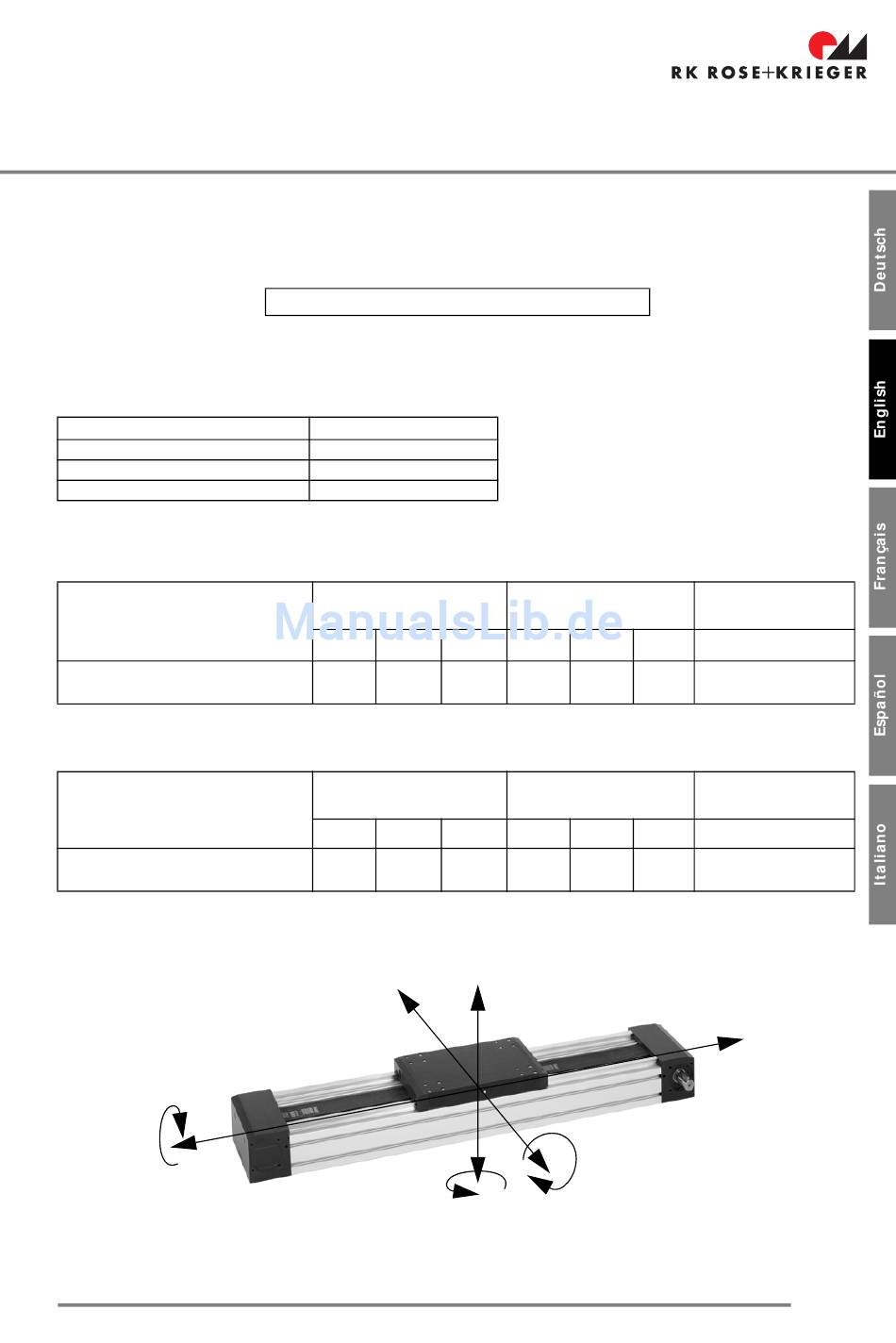

6.5 Loading data*

In dynamic operation, this must be considered for the design:
6.5.1 Idling torque/Effective diameter of serrated washer/Toothed washer
pitch circumference
Idling torque, max.
Toothed washer pitch circumference
Effective diameter of serrated washer

6.5.2 RK MultiLine II Z

Version
RK MultiLine II Z
Ball rails

6.5.3 RK MultiLine II R

Version
RK MultiLine II R
Ball rails
* referred to guidance slots (values static, guidance unit covering the whole area)
** Timing belt pre-tension 0.8 x Fx
Mx

6.6 Emissions

The A-rated equivalent continuous sound pressure level of these linear units is below 85 dbA.
Fx max = m * a [m/s2]
RK MultiLine II
2 Nm
216 mm
68,75 mm
Permitted force (N)
**
Fy Fz
Fx
4700 10000 10000
Permitted force (N)
Fx Fy Fz
- 10000 10000
Fy
Mz
6. Product information
Permitted torque
(Nm)
Mx My Mz
720 900 900
Permitted torque
(Nm)
Mx My Mz
720 900 900
Fz
My
max. Travel speed
5 m/s
max. Travel speed
5 m/s
Fx
