6.4.2 Lateral loading

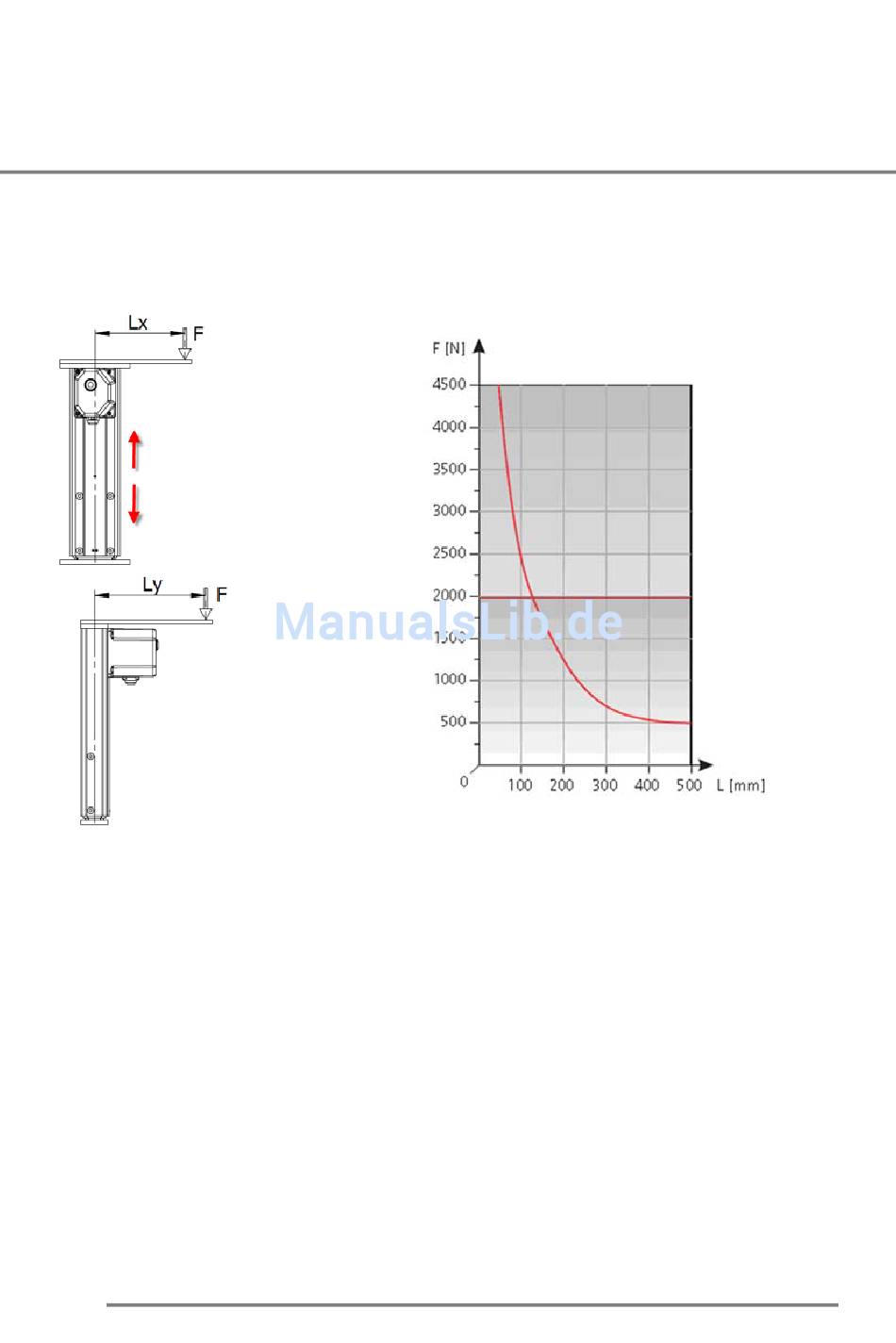

The lateral loading F must not exceed the value for continuous operation according to the
diagram. Higher temporary static loads are possible. In event of high lateral loads, the
Twin System should be used in all cases.
M = L xF= 250 Nm (dynamic)
x x
F
Pressure
F
Pressure
F
Tension
F
Tension
M = L xF= 250 Nm (dynamic)
x x

6.5 Emissions

The A-rated equivalent continuous sound pressure level of these linear units is below 60 dB(A) at
a microphone distance of 30 cm.
42
= 2000 N (Version A)
= 4500 N (Version B)
= 2000 N (Version A)
= 4000 N (Version B)
Lifting speed
8 mm/s
Lifting speed
20 mm/s
