7. Life phases

7.5.2 Lambda Colonne with external controller: function synchronous

The lifting column is connected to the external controller.
It can traverse up to four lifting columns (depending on the loading data and requirements).
The following external controllers can be exempted:
•
RK MultiControl duo for up to two lifting columns synchronously
•
Synchronisation control for LAMBDA Colonne (LBC) / LAMBDA E-Cylinder (LBM) up to two
drives, can be controlled synchronously
•
Synchronisation control for LAMBDA Colonne (LBC) / LAMBDA E-Cylinder (LBM) up to two
drives, can be controlled synchronously + one drive additionally
Connecting the manual control switch
The manual control switch is connected directly to the controller.
•
Two-button manual control switch (Up - Down) for traversing the lifting column.
•
6-button hand switch with display (6-pin manual control switch connector) for traversing
lifting columns. Saving of user-specific positions and carrying out settings.
Synchronous run

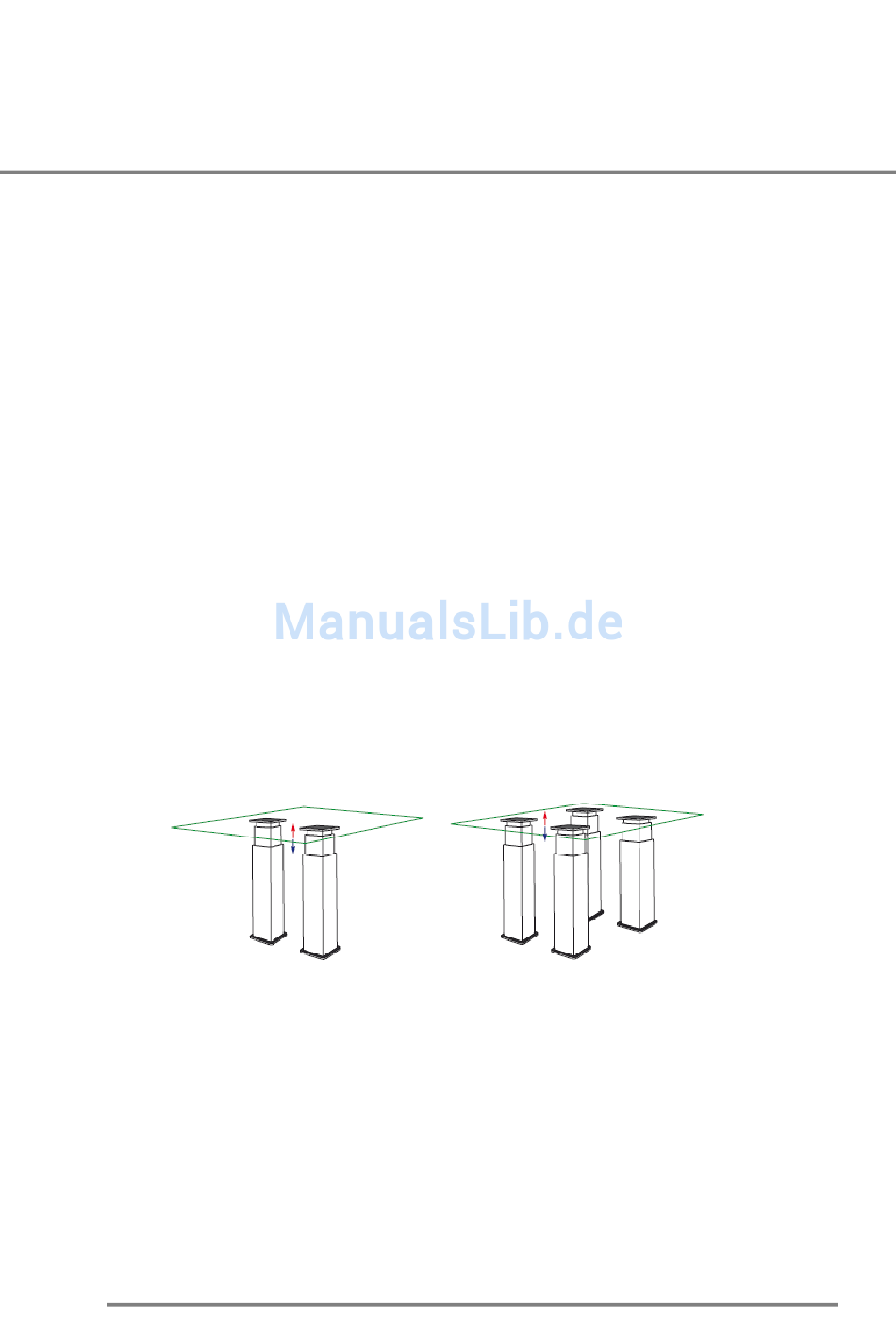

At least two columns are traversed in synchronous run.
The controller in conjunction with the sensors installed ensure for the synchronous run.
The level of all columns will be permanently adapted in both travel directions, even with different
loads.
The synchronous run accuracy (synchronous run tolerance) is: 2 - 6 mm.
