Specification - MA lighting dot2 Kurzanleitung

Specification

4 DMX – OUT
(XLR 5 pin) on the rear side
Ethernet RJ 45 Network connector 10/100 BASE-T/X
For connection to a PC or laptop (directly or via a switch)
Channels 2048 Channels (4 x 512 Channels)
2" TFT
color monitor
Can only operated together with a laptop / PC with installed dot2 onPC software or a dot2
console.
Note: The dot2 system can handle up to 4096 channels, regardless if a device is working solo or
if there are multiple devices in a session.

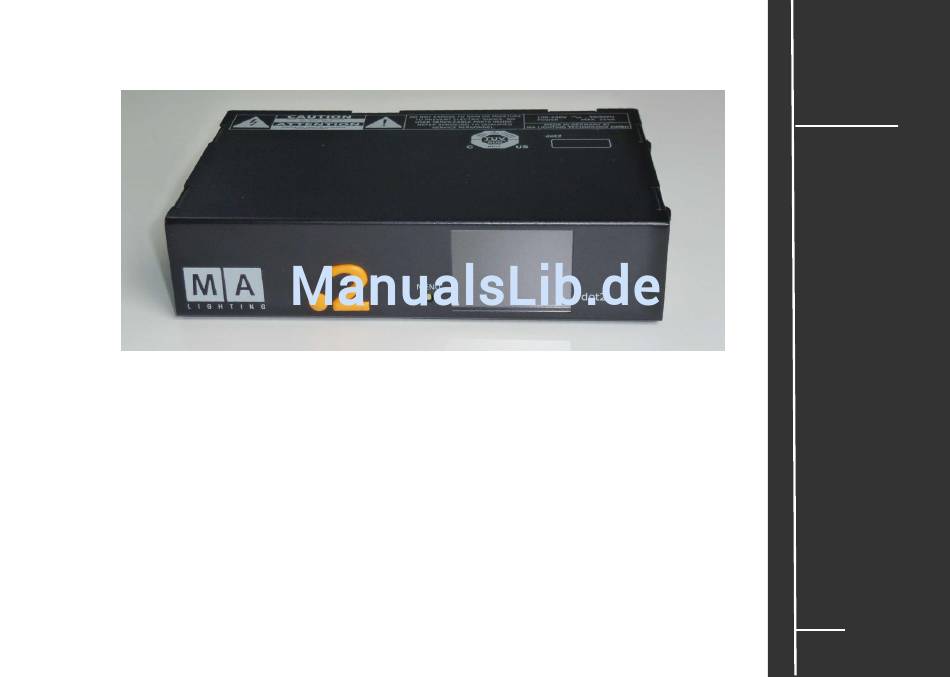

dot2
Node4
Data
Transport
Safety
Instructions
Limitation
Quickstart
Connect
Quickstart
ON / OFF
Maintenance
Conformity
24
