6
CAUTION: Keep your hands away from the drill while the unit
is on. Do not stare into the laser beam.
10. Move the laser-arm so that laser beam is pointing into the
hole in the white paper on the work table.
11. Turn the unit OFF and tighten the screws underneath the
platform to secure the arm into position.
12. Re-align the work table housing and the motor housing
and push in the work table lock-pin. Slowly push the plat-
form down until the work table lock-pin clicks into place.
Turn the unit ON and check if the laser beam aligns with
the hole in the paper. If the laser beam does not align with
the hole, repeat steps 8 through 11.
13. Remove the paper from the work table. Adhere the two
labels provided to the back of the unit, directly above the
serial number label. The laser light should illuminate the tip
of the drill when turned on.
VII. Accessories
PX102 100 Medium Pins and Sleeves
PX116 100 Long Pins and Sleeves
PX117 100 Short Pins and Sleeves
PX154 100 Dual Pins and Sleeves
PX114 1000 Long Pins and Sleeves
PX112 1000 Medium Pins and Sleeves
PX115 1000 Short Pins and Sleeves
PX153 1000 Dual Pins and Sleeves
PX155 1000 Tri-Plus Medium Pins and Sleeves
PX156 1000 Tri-Plus Long Pins and Sleeves
PX145 100 Self-Articulating Pins and Sleeves
PX144 1000 Self-Articulating Pins and Sleeves
PX145S 1000 Self-Articulating Sleeves
PX118 100 Articulating Pins
PX146 3 Flexible Molds
PX147 1 Flexible Mold – Full Arch
PX148 2 Flexible Molds – Left and Right Quadrant
PX200 Pindex System Handsaw and Blades
P48 100 Pin-Mates
PX125 Pindex Laser Retro-fit Kit
VIII. Replacement parts
PX119 3 Carbide Drills
PX120 1 Reamer
PX124 10 Bulbs
PX201 12 Replacement Blades for Handsaw, 0.007"/
0.18mm
PX202 12 Replacement Blades for Handsaw, 0.010"/
0.25mm
PX301 100 Replacement Blades for Handsaw, 0.007"/
0.18mm
® Pins
PX302 100 Replacement Blades for Handsaw, 0.010"/
0.25mm
P38 12 Proxima ®
IX. Unit specifications
Pindex Laser
Cat. No. Net Weight Voltage
PX113L 8.25 lbs./ 115
3.7 kg. 60 HZ
PXM113L 8.25 lbs./ 100
3.7 kg. 50/60 HZ
P113LCE 8.25 lbs./ 220/230
3.7 kg. 50/60 HZ
P113LUK 8.25 lbs./ 220/230
3.7 kg. 50/60 HZ

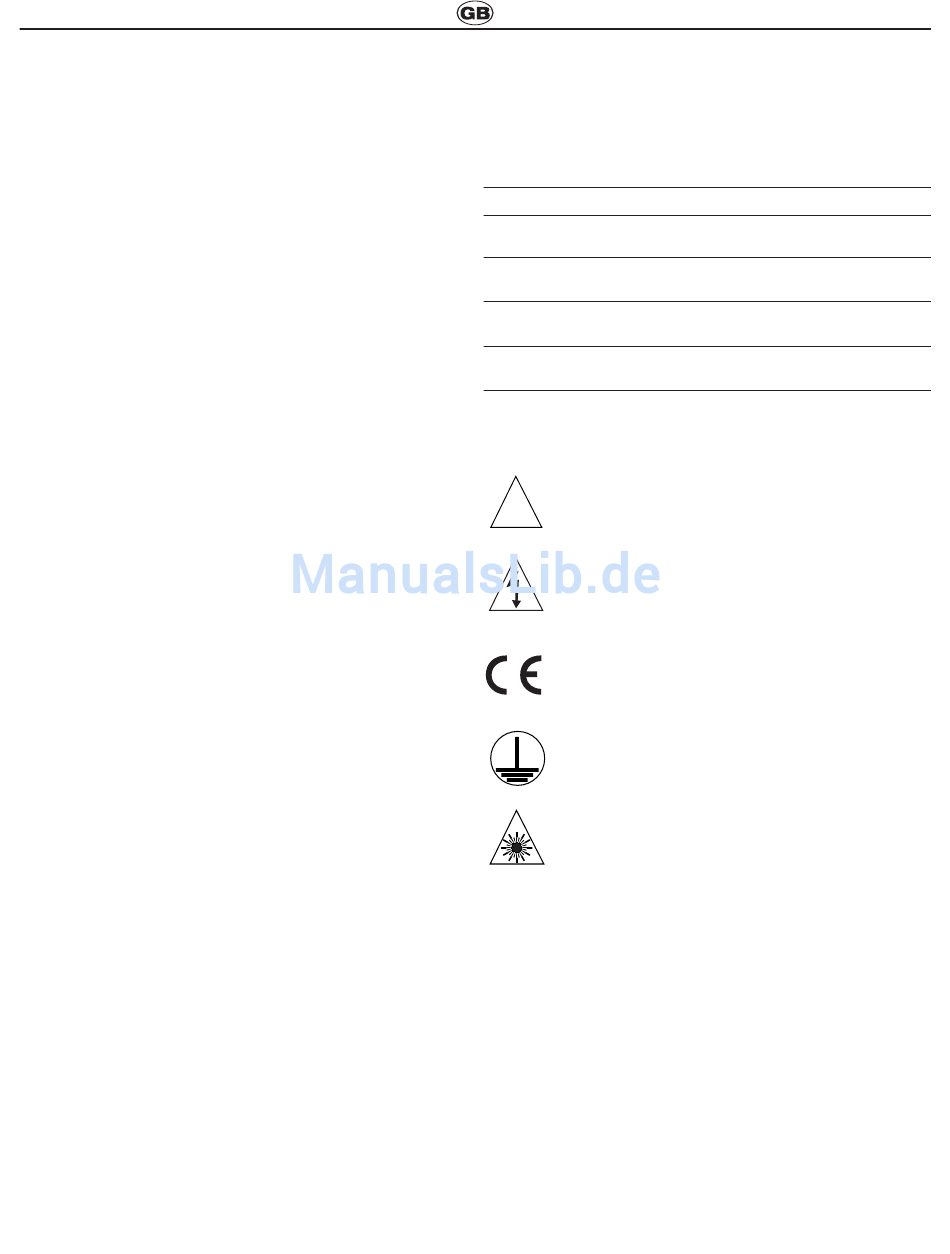

X. Product markings
ISO 3862
!
Caution (refer to accompanying documents)
ISO 3862
Caution, risk of electric shock
Protective Conductor Terminal
EN 60825-1
Class II Laser Product
XI. Warnings
WARNING: The unit should be turned off when not in use. Make
sure all fingers are clear of the drill before pressing the base down
or pushing the drill up.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED IN THE OWNER'S GUIDE MAY RESULT IN HAZ-
ARDOUS RADIATION EXPOSURE.
CAUTION: This product contains a laser system and is classified
as a CLASS II LASER PRODUCT. To use this model properly,
read the Instruction Manual carefully and keep this manual for
your future reference. In case of any trouble with this model,
please contact your nearest "AUTHORIZED service distributor."
To prevent direct exposure to the laser beam, do not try to open
the enclosure.
Owner's Guide
Saw Blades
Current Watts
0.7 amp 100
nominal nominal
0.7 amp 100
nominal nominal
0.5 amp 100
nominal nominal
0.5 amp 100
nominal nominal
Fuse
2 amp
slow blow
2 amp
slow blow
3AG
.75 amp
3AG
.75 amp
