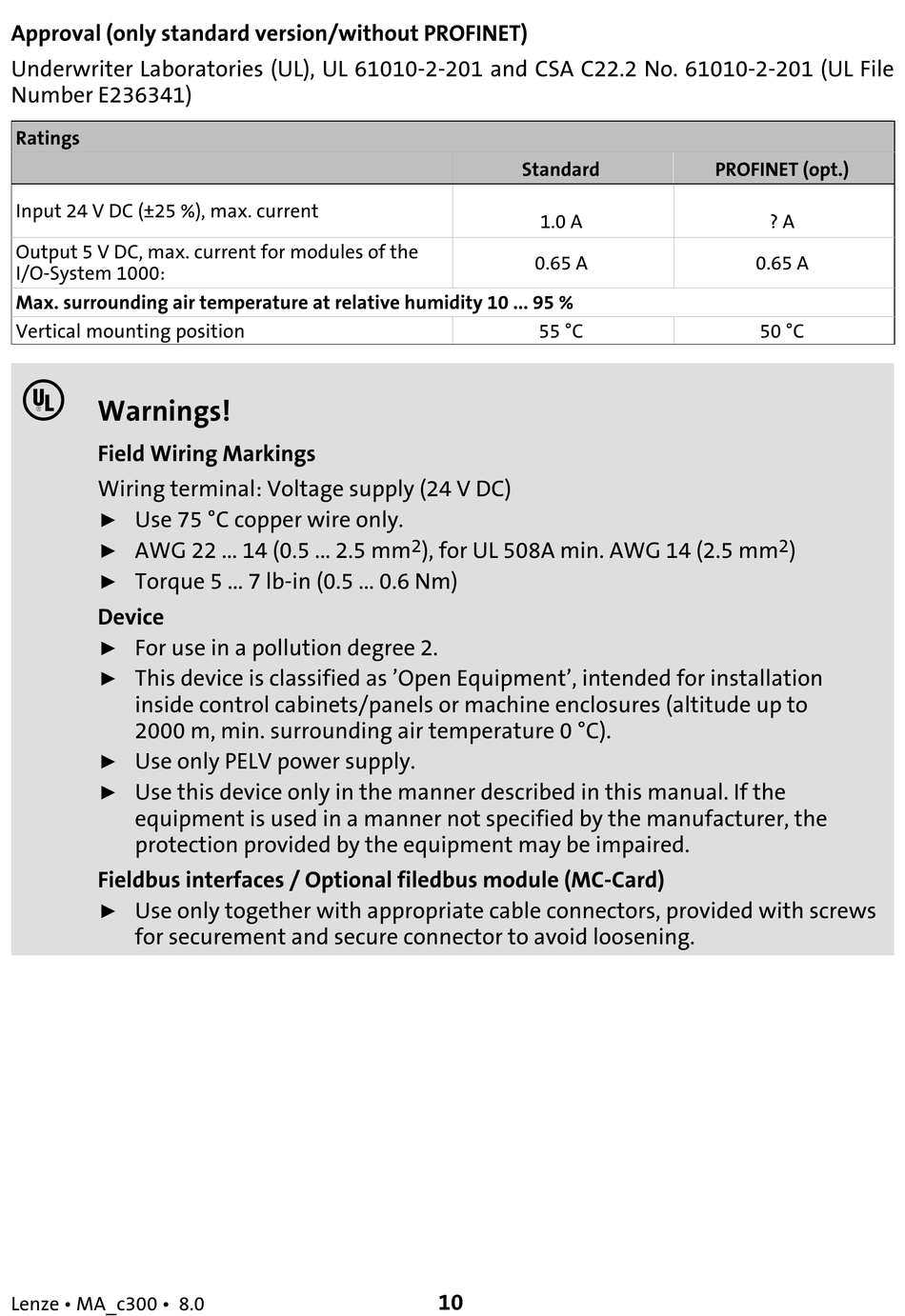

Lenze C300 Montageanleitung Seite 10

Approval (only standard version/without PROFINET)
Underwriter Laboratories (UL), UL 61010−2−201 and CSA C22.2 No. 61010−2−201 (UL File
Number E236341)
Ratings
Input 24 V DC (±25 %), max. current
Output 5 V DC, max. current for modules of the
I/O−System 1000:
Max. surrounding air temperature at relative humidity 10 ... 95 %
Vertical mounting position
J
Warnings!
Field Wiring Markings
Wiring terminal: Voltage supply (24 V DC)
Use 75 °C copper wire only.
ƒ
AWG 22 ... 14 (0.5 ... 2.5 mm
ƒ
Torque 5 ... 7 lb−in (0.5 ... 0.6 Nm)
ƒ
Device
For use in a pollution degree 2.
ƒ
This device is classified as 'Open Equipment', intended for installation
ƒ
inside control cabinets/panels or machine enclosures (altitude up to
2000 m, min. surrounding air temperature 0 °C).
Use only PELV power supply.
ƒ
Use this device only in the manner described in this manual. If the
ƒ
equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
Fieldbus interfaces / Optional filedbus module (MC−Card)
Use only together with appropriate cable connectors, provided with screws
ƒ
for securement and secure connector to avoid loosening.
Lenze ¯ MA_c300 ¯ 8.0
Standard
1.0 A
0.65 A
55 °C
2
), for UL 508A min. AWG 14 (2.5 mm
10
PROFINET (opt.)
? A
0.65 A
50 °C
2
)
