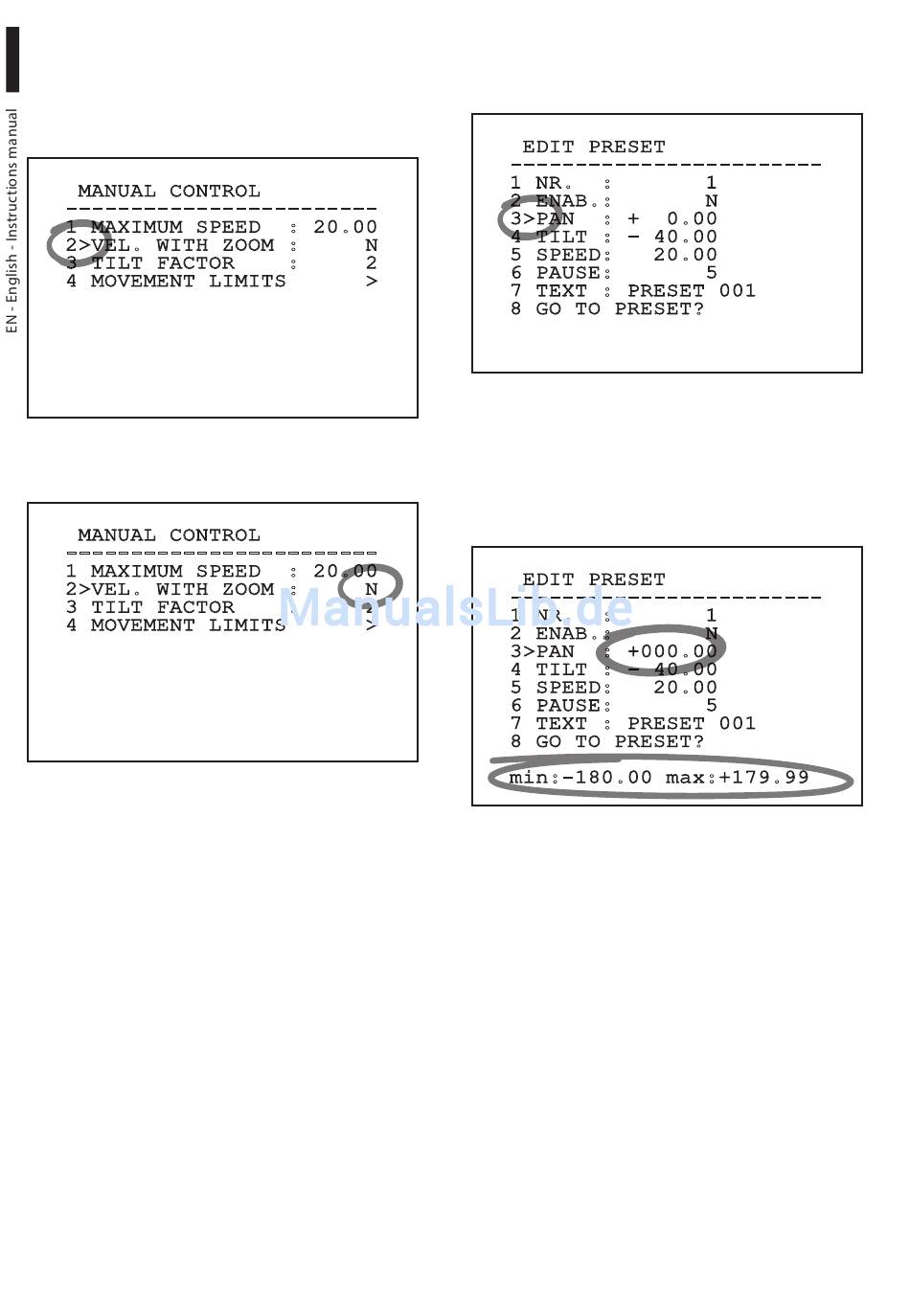

10.1.1.3 How to modify the parameters

Move the cursor to the parameter to be changed and
confirm. The field will start flashing, indicating that it
is in change mode. Use the joystick (up and down) to
show the possible options.
MANUAL CONTROL
------------------------
1 MAXIMUM SPEED
2>VEL. WITH ZOOM :
3 TILT FACTOR
4 MOVEMENT LIMITS
Fig. 70
Confirm after having identified the option required.
MANUAL CONTROL
------------------------
1 MAXIMUM SPEED
2>VEL. WITH ZOOM :
3 TILT FACTOR
4 MOVEMENT LIMITS
Fig. 71
The field will stop flashing to confirm the selection
made.
38
: 20.00
N
: 2
>
: 20.00
N
: 2
>

10.1.1.4 How to change the numeric fields

Move the cursor to the parameter to be changed and
confirm.
EDIT PRESET
------------------------
1 NR. :
2 ENAB.:
3>PAN : +
4 TILT : - 40.00
5 SPEED:
6 PAUSE:
7 TEXT : PRESET 001
8 GO TO PRESET?
Fig. 72
The first digit in the numeric field to be changed will
flash and the last line of the display will show the
accepted limits for the field. Move in the field (left
and right) and change the sign or the numeric value
(up and down).
EDIT PRESET
------------------------
1 NR. :
2 ENAB.:
3>PAN : +000.00
4 TILT : - 40.00
5 SPEED:
6 PAUSE:
7 TEXT : PRESET 001
8 GO TO PRESET?
min:-180.00 max:+179.99
Fig. 73
After making the change, confirm. The cursor returns
to the left and the modified digit will stop flashing.
The field will be forced to the minimum or maximum
value permitted if an unexpected value is entered.
1
N
0.00
20.00
5
1
N
20.00
5
