Do not try to go faster, maintain steady pressure on the pressure
roller and let the machine move at its own pace.
Should an edge get stuck, it must always be removed
in the same direction as the machine moves it. Never
pull an edge backwards, as the pressure roller and
the feed cylinder will become dirty from contact
with the glue.
We recommend gluing some test pieces first to practice using
the PEB250.
Check and refill the glue tank regularly.

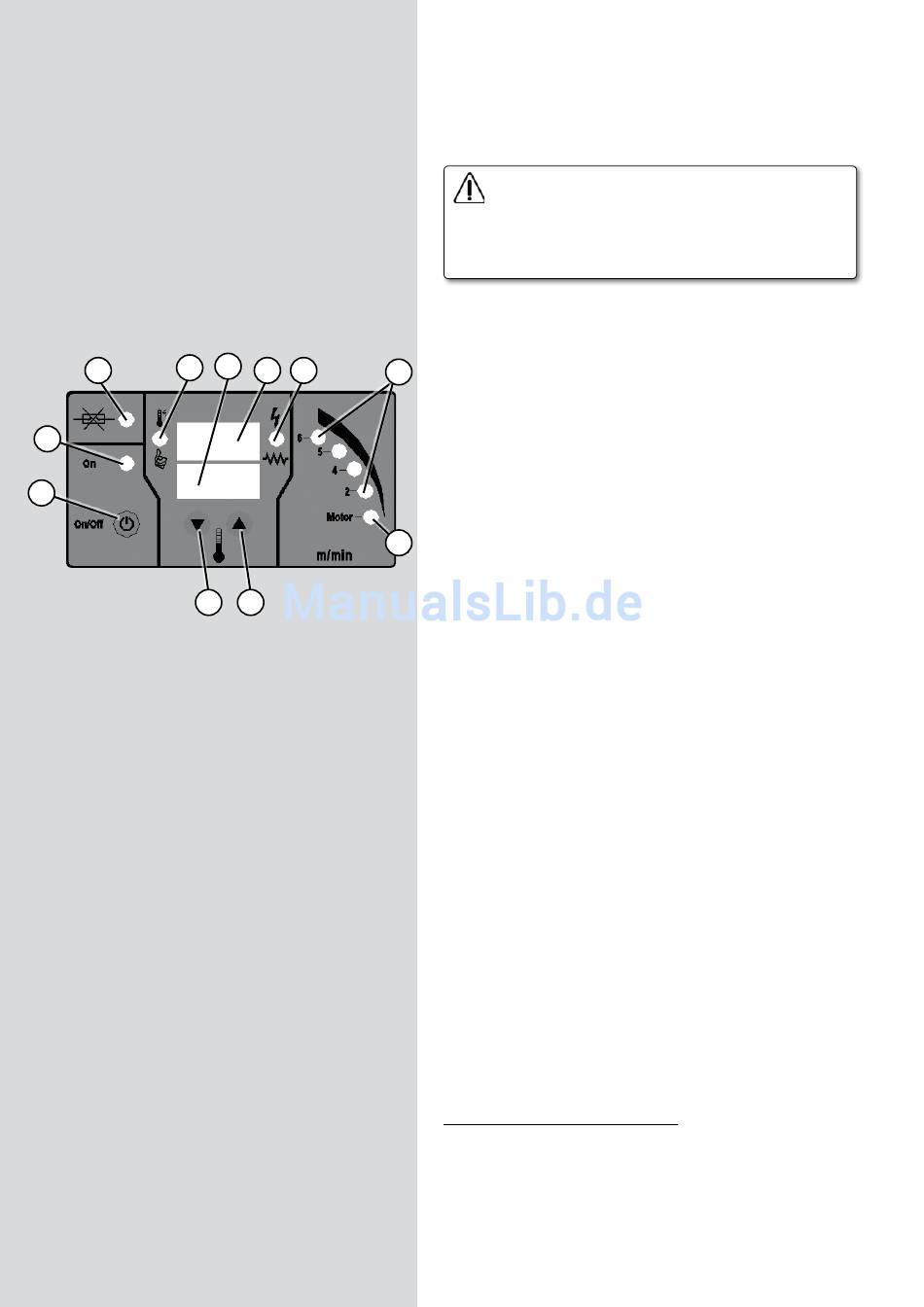

10.2.2 Functions and indicators on the Control panel (Fig.
16-3)
A - Main switch.
The machine's electrical supply is connected in position ON and
disconnected in position OFF. In addition, pressing it once will
eliminate all the warnings and errors. Keeping it pressed down
for 2 seconds will disconnect the machine and the word OFF
will appear on screen F.
B - White LED.
Indicates that the main switch is in the ON position.
C - Decrease pushbutton for temperature selection.
Pushing it lowers the temperature.
D - Increase pushbutton for temperature selection.
Pushing it raises the temperature.
E - Selected temperature. It displays the selected operating
temperature. It also displays the safety alarms and maintenance
warnings.
F - Real temperature reading.
Displays the real glue temperature at all times.
G - Machine status indicator LED (Green).
This LED will remain off while the glue is heating up. When the
temperature shown on screen F reaches the preset temperature
less 5ºC (41ºF), a double Beep noise will be heard and the LED
will come on.
H - LED (green). The elements that heat the glue tank are
operating intermittently. The LED is on when the elements are
receiving the current.
I - LED (green). Indicates that the motor can be started so that
the glue starts to move up through the gluing roller. The LED
comes on when the glue temperature reaches 110ºC (230ºF).
J - LEDs (yellow) indicating the working speed. When the working
speed changes, this will be shown by the corresponding LED.
K- Led (red) indicates that fuse K (Fig. 16-3) on the machine
has blown.
Change of temperature scale ºC – ºF: To change the temperature
scale from ºC to ºF or vice versa, you must keep the pushbuttons
C and D pressed (Fig. 16-3), while the lead for the machine is
plugged into the mains. The scale will change each time that
you repeat this operation.
