Installation

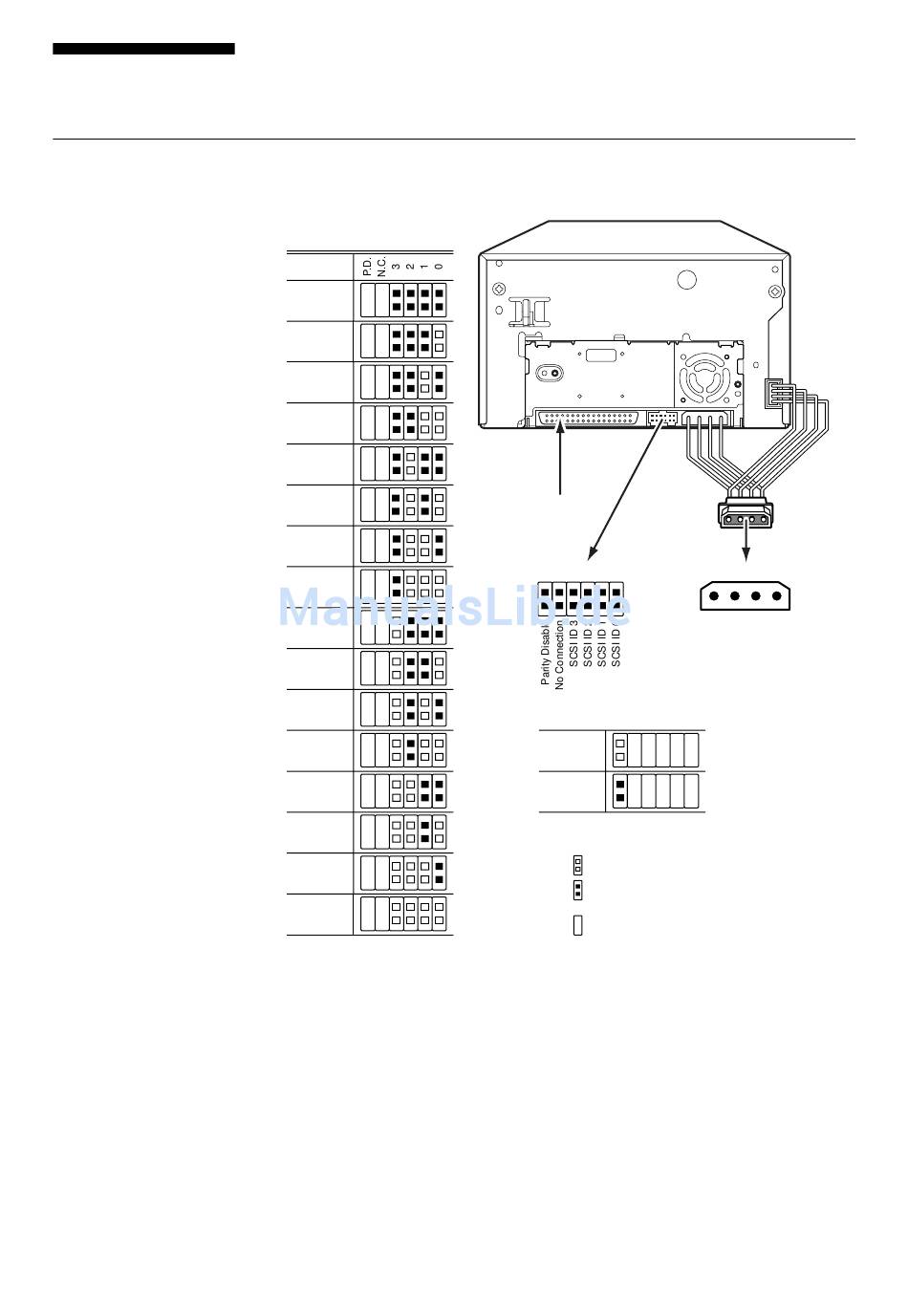

SCSI Connection/Setting the SCSI ID

Parity Disable Jumper
SCSI ID
SCSI ID
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Parity check function can be disabled by Jumper. Parity check is disabled
while left end jumper is installed. Parity generate function is always enabled.
SCSI Connector
Jumpers
Parity
Disable
Enable
Note: = CLOSED / Jumper
= OPEN / Jumper not installed
Don't care
Power Connector
4 3 2 1
5V GND GND 12V
23
Chapter 2 Operation
