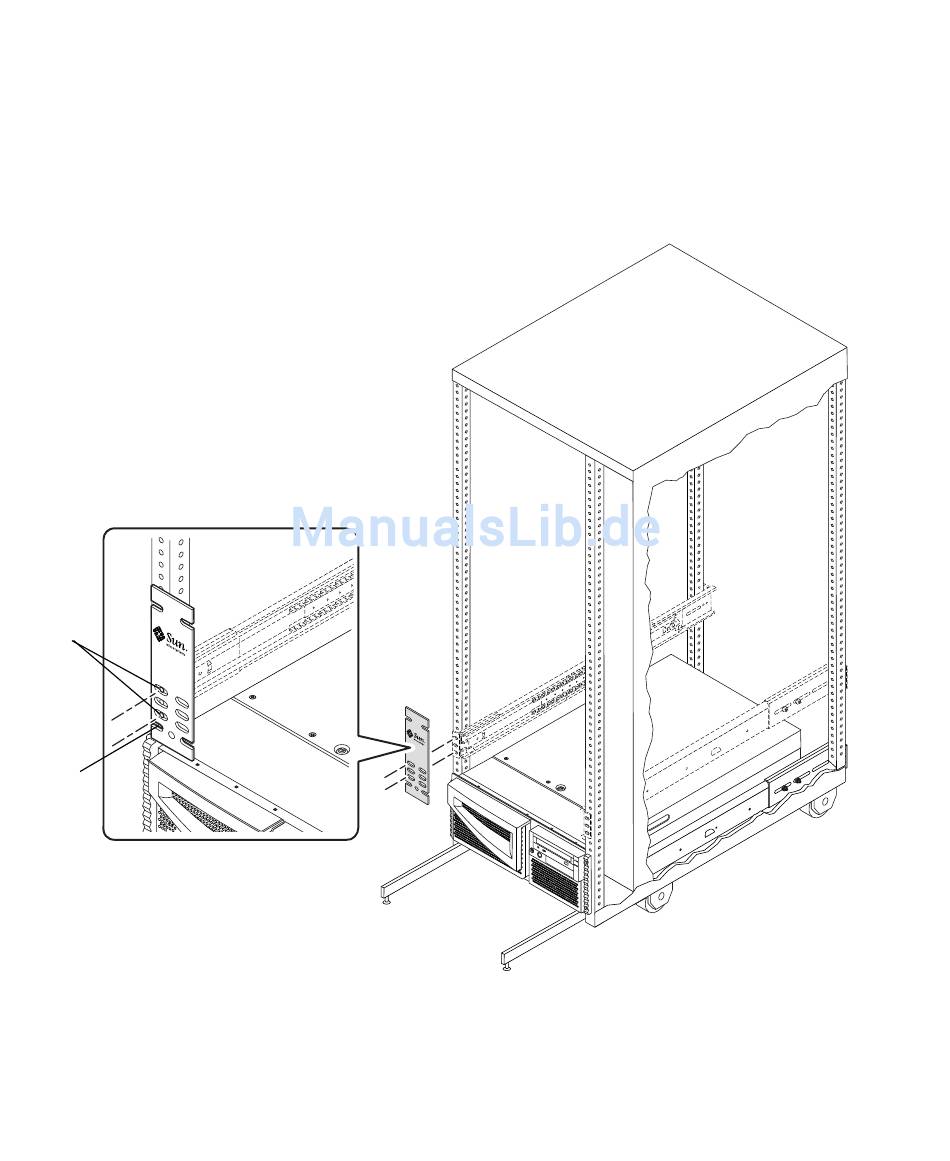

d. Looking through the three holes on the Rack Buddy, locate the two rack rail
holes that are most visible through the Rack Buddy and mark them.
Use these two rack rail holes to attach the slide assembly to the rack rail. You will
only use two of the three holes to attach the slide assembly. The assembly bracket
has three holes to allow for the differences in spacing between the rack rail holes.
Mark the corresponding holes on the right front vertical rack rail.
Rack rail
holes
Server
mounting
hole
en-14 Sun Enterprise 220R Server Setup and Rackmounting Guide • December 1999
