Attach the Mounting Brackets to Each
Slide Assembly
Attach a short and a long mounting bracket to the outside of each slide assembly.
Repeat these steps for each slide assembly.
1. Attach a short mounting bracket to the front of each slide assembly.

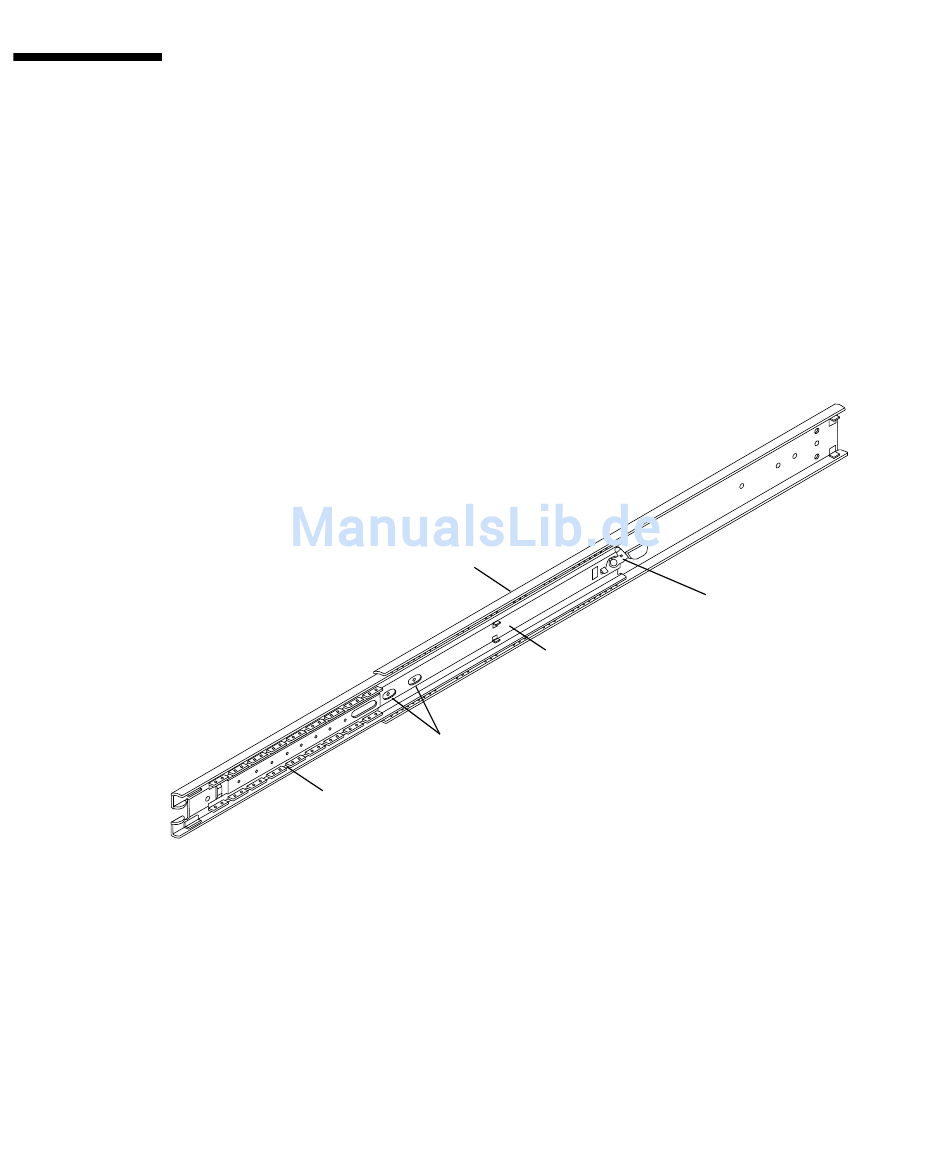

a. Extend the slide assembly to expose the holes for the front mounting bracket.
Release the coil spring catch on the inner rail to extend the slide assembly.
Slide assembly
Coil spring catch
Front
Inner rail
Holes for front mounting bracket
Runner
