CAUTION
Do not lift by cart handle when loading or unloading.

Specifications

Specifications Common to All Sprayers
Maximum pressure ..........................23 MPa (3300 PSI)
Halogenated solvent compatible......Yes
Inlet paint filter .................................10 mesh "rock catcher"
Outlet paint filter...............................50 mesh, 18 in.
Pump inlet ........................................3/4" NPT(F)
Pump outlet......................................1/2" NPT(F) to paint filter
Paint filter hose connections............1/4" NPS(M)
Line width range ..............................5–60 cm (2"–24")
Dimensions ......................................150 cm L (59") x
Fluid section wetted parts:
Electroless nickel plated ductile iron, electroless nickel plated
carbon steel, stainless steel, tungsten carbide, Teflon, thiokol
impregnated leather, ultra high molecular weight polyethylene.
LineCoat 820
Liters per minute (LPM) ...................4.9 (1.3 GPM)
Maximum tip sizes ...........................1 gun = .036" (.91 mm)
Power ...............................................Honda 4.0 HP, 4-stroke,
Fuel capacity....................................0.66 US gallons (2.49
Weight ..............................................107 kg (235 lbs.)
Maximum spraying speed
(feet/minute, 4" line width) ...............520 lineal feet (158 m)
Maximum spraying speed
(miles/hour, 4" line width).................6 mph (9.7 kph)
LineCoat 840
Liters per minute (LPM) ...................6.4 (1.7 GPM)
Maximum tip sizes ...........................1 gun = .041" (1.0 mm)
Power ...............................................Honda 5.5 HP, 4-stroke,
Fuel capacity....................................0.97 US gallons (3.67
Weight ..............................................111 kg (235 lbs.)
Maximum spraying speed
(feet/minute, 4" line width) ...............585 lineal feet (178 m)
Maximum spraying speed
(miles/hour, 4" line width).................7 mph (11.3 kph)
R
2
3/8" NPT(F) (plugged)
69 cm W (27") x
102 cm H (40")
2 guns = .026" (.66 mm)
single cylinder, overhead
valve engine w/oil alert
liters), approx. 3 hours run
time
2 guns = .031" (0.79 mm)
single cylinder, overhead
valve engine w/oil alert
liters), approx. 3.5 hours
run time
GB
LineCoat 860
Liters per minute (LPM) ...................2.0 (7.6 GPM)
Maximum tip sizes ...........................1 gun = .046" (1.2 mm)
Power ...............................................Honda 5.5 HP, 4-stroke,
Fuel capacity....................................0.97 US gallons (3.67
Weight ..............................................116 kg (255 lbs.)
Maximum spraying speed
(feet/minute, 4" line width) ...............685 lineal feet (209 m)
Maximum spraying speed
(miles/hour, 4" line width).................8 mph (12.9 kph)

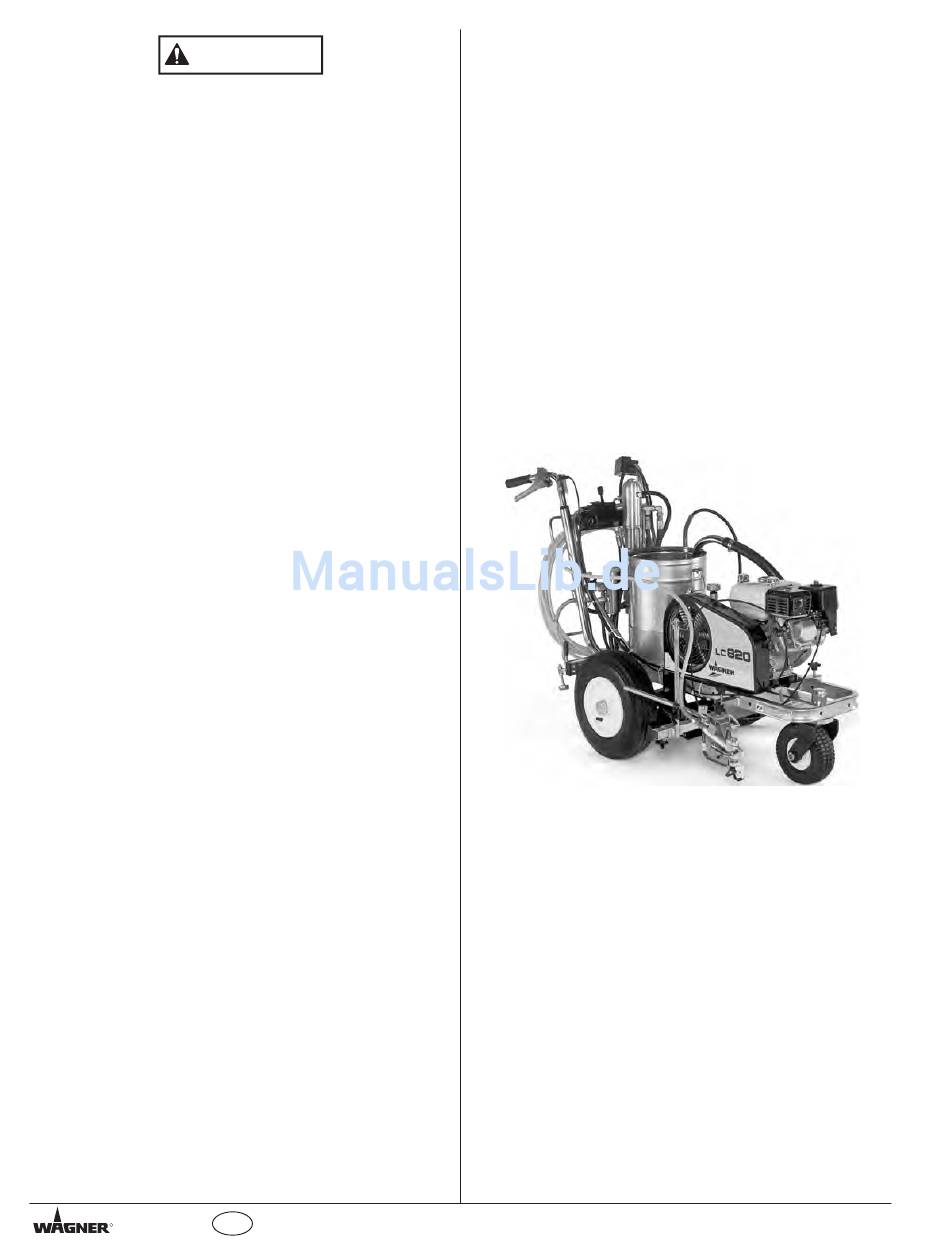

General Description

The line stripers described in this manual include the LineCoat
820, LineCoat 840, and LineCoat 860. These airless sprayers
are precision power tools used for spraying many types of
materials. Read and follow this Owner's Manual carefully for
proper operating instructions, maintenance, and safety
information.
4
2 guns = .033" (0.84 mm)
single cylinder, overhead
valve engine w/oil alert
liters), approx. 3.5 hours
run time
