C) Installation into the Radio Recess
• Remove the front control panel.
• Carefully remove the plastic frame in the front of the system, by bending it slightly to the outside and
pulling it off from the unit.

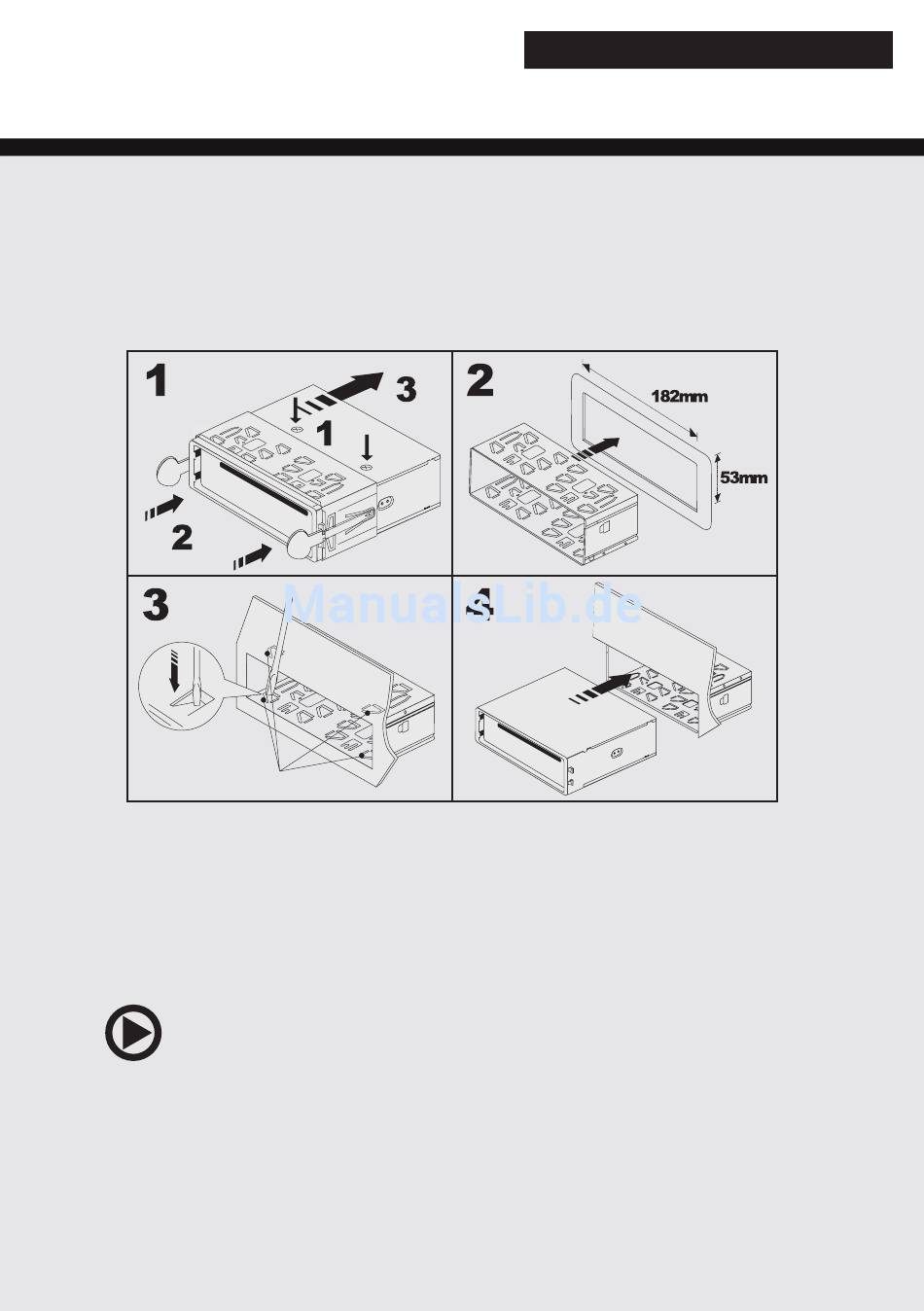

• Remove the two security screws of the CD drive (fig. 1, no. 1).
• Unlock the installation frame with the two unlocking keys (fig. 1, no. 2).
• Remove the installation frame towards the back of the system (fig. 1, no. 3).
• Insert the frame into the respective cut-out in the vehicle (fig. 2).
• Bend down some clips in the installation frame until the frame is securely fastened in the recess.
• When you have made all the electrical contacts (see "Electric Connection") insert the CD tuner into the
frame until it locks in (fig. 4).
• Replace the frame cover of the front control panel.
Keep the two unlocking keys. You will need them for a later removal of the CD tuner.
