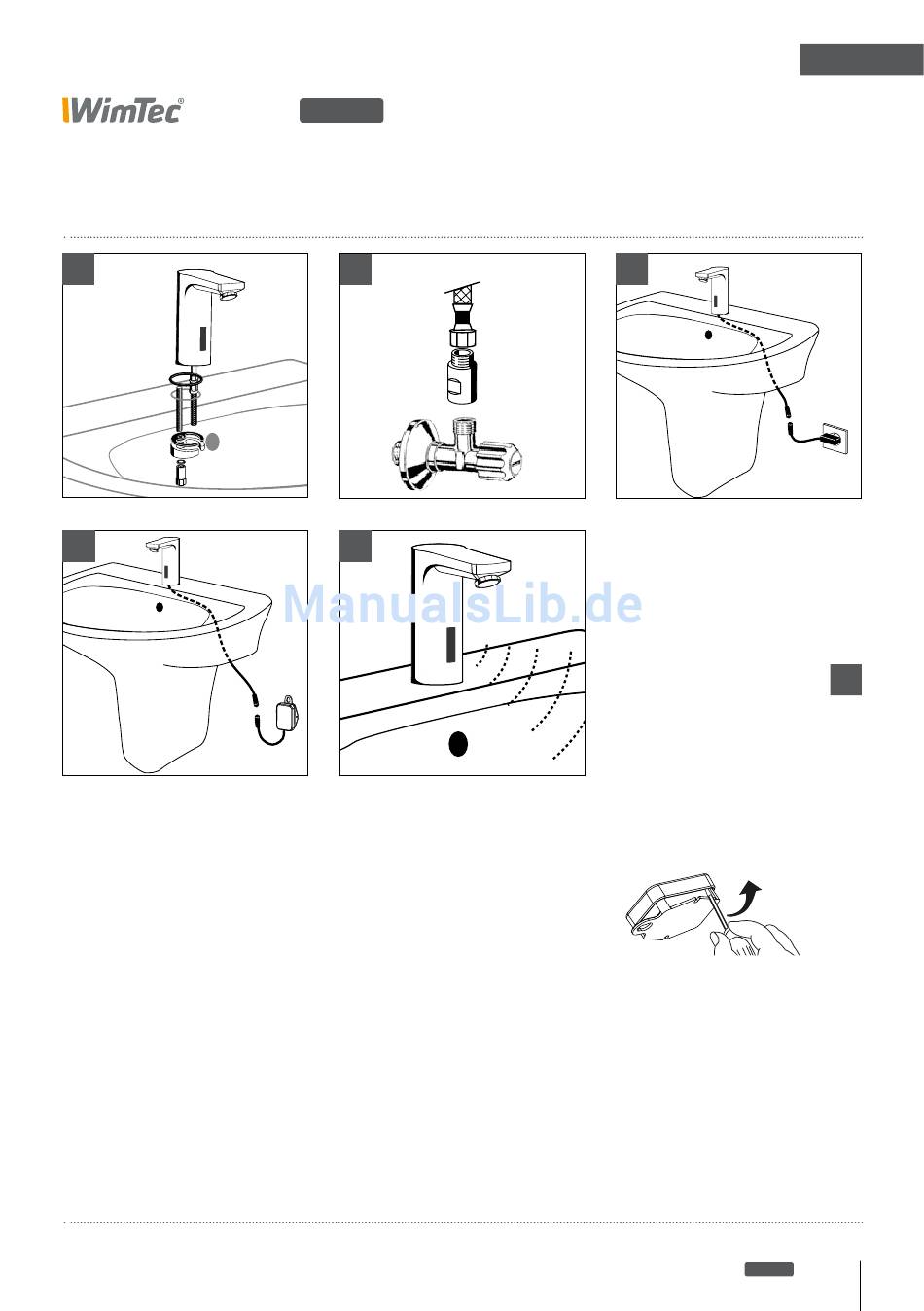

1. Fasten the fitting to the washbasin.
2. When installing the mixed water version, use a return
flow valve with prefilter or generally use an angle valve
with prefilter.
3a. Mains version: Connect the power supply to the fitting –
open the water valve.
3b.
Battery version: Place the battery into the battery module
and connect the battery to the fitting – open the water valve.
4.
Automatic range adjustment.
After approx. 5 s the LED flashes 3 times and the fitting is
operational. Do not trigger the sensor when performing
the range adjustment!
