6.

Preparing the device for use

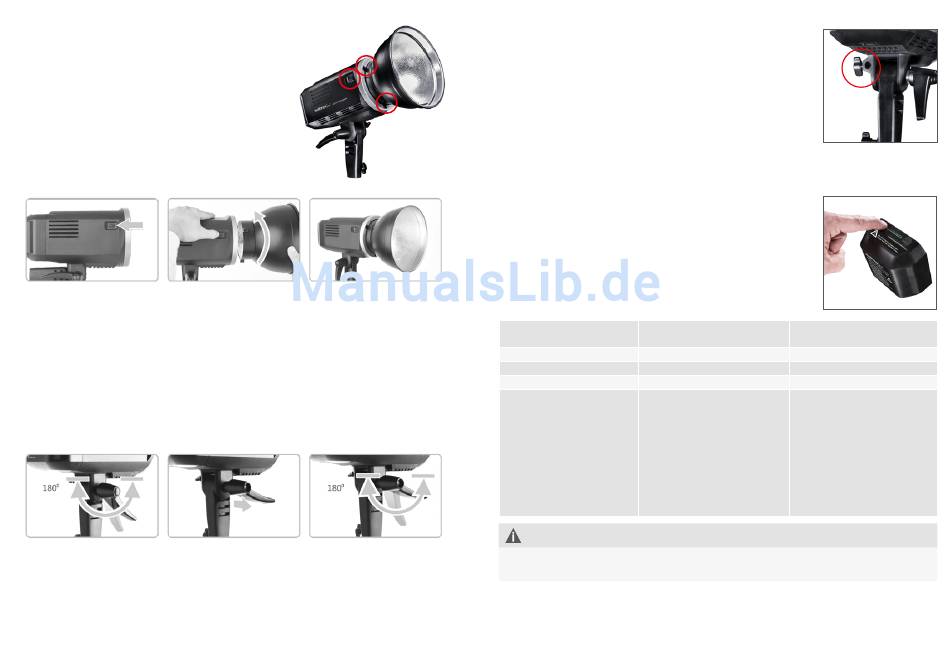

6.1 Mounting the lamp reflector
The Walimex pro LED2Go 60 video light can be operated
with or without the bowens standard reflector. We recom-
mend that the reflector and the battery be installed on a
lamp stand before assembly.
• Remove the bulbs protective cover (26)
• Insert the reflector into the reflector holder and turn the
reflector up to the stop
• A click indicates the correct locking of the reflector
• The reflector is installed correctly
• Proceed in the reverse order when disassembling the
reflector
1. Press down the accessory 2. Insert the reflector into the accessory mount and turn clock
locking ring. wise to lock it into place.

6.2 Mounting the light on a lamp stand

• Loosen the mounting screw (9)
• Place the light with the bracket on a suitable lamp stand or ceiling mount
• Tighten the fastening screw of the lamp holder (9) again
• Loosen the lever for the angle adjustment of the lamp holder (11)
• Set the desired tilt angle of the light
• Retighten the angle adjustment lever (11) of the light
• The lamp is correctly installed and ready for use
• Proceed in reverse order to disassemble the device
1. To adjust the LED Light, 2. The direction adjusting handle's rotation angle is res-
pull out the direction adjus- trained from 0 to 180 degrees below the body. To adjust
ting handle, then turn the the direction adjusting handle by 360 degrees, pull out the
handle clockwise to tighten handle, adjust to the appropriate angle, then continue with
the adjusting screw or turn step 1 while making sure that the handle does not touch the
the handle anticlockwise to body.
loosen the adjusting screw.
30
6.3 Assembly of a reflector umbrella
The lamp holder (8) has a hole holder for the use of umbrella reflec-
tors. The special opening in the reflector is punched out and must be
bent slightly
• When mounting the reflector, ensure that the opening for the
umbrella is correctly positioned
• Loosen the mounting screw of the umbrella reflector holder (10)
• Slide the rod of the umbrella through the opening in the reflector
holder
• Slide the rod of the umbrella through the opening of the lamp holder
• Tighten the mounting screw for the umbrella holder
• Check that the umbrella is securely fixed
• Proceed in the reverse order when disassembling the umbrella reflector

6.4 Check battery charging status

• Check the charging status before using or charging the battery
pack
• Press the button on the battery charge indicator (15)
• The display indicates the battery charging status (see table)
Battery Level Indication LED Indication on the
Display Battery
3 bars 1 red led + 3 green led
2 bars 1 red led + 2 green led
1 bars 1 red led +1 green led
Symbol blinks 1 red led + red led blinks
NOTE
Note that during charging time the Indicators shows no correct values for the battery
charging status. If necessary, remove the charger cable.
Status
Full battery
Medium battery
Low battery < 25%
"Very low battery < 10%.
The battery level is going to
be used out immediately and
the light will auto power off in
1 minute.
Note: Recharge the battery as
soon as possible (within 10-
14 days ) to prevent a deep
discharge with damage of the
battery"
31
