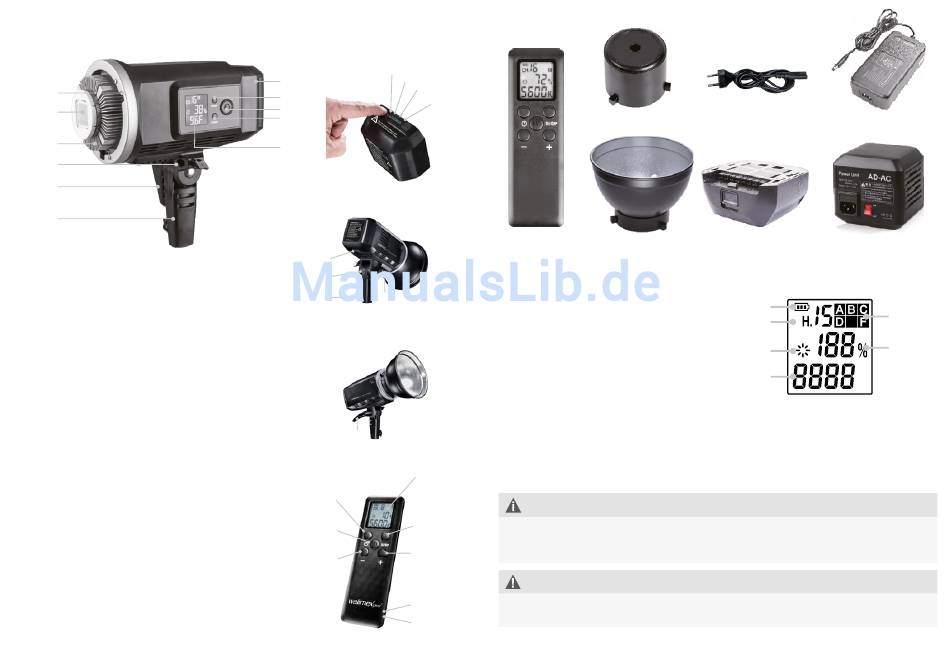

Overview of components and control elements

3
1
2
10
11
8
Device/Light
1 LED beads
2 Heatsink led beads
3 Mounting adapter reflector (Bowens compatible)
4 ON/OFF power switch device
5 Select dial + SET button
6 CH/GRP button
7 LCD display (White in Blue)
8 Mounting bracket
9 Fastening screw device holder
10 Holder umbrella input with fixation screw
11 Lever angle adjustment device holder
12 Locking switch reflector holder
13 Lithium polymer battery
14 Locking switch battery
15 Knob battery charge control
16 Battery charge control display
17 Charging socket battery
Remote Control
18 LCD display (black in wWhite)
19 Power Switch ON/OFF
20 CH/GRP channel/group select button
21 SET button adjustment knob
22 „-" button down
23 „+" Button up
24 Battery compartment
25 Battery compartment cover
28
15
13
12
16
4
17
5
6
7
14
10
9 12
11
18
19
20
21
23
22
24
25

Accessories

Lamp cover
Remote Standard
control reflector
Accessories
26 Lamp protection cover
27 Power cord
28 Battery charger
29 Standard lamp reflector
(Bowens compatible)
30 Battery pack (Lithium-Polymer)
31 AD-AC Power Source
(Optional Accessory)
32 Remote Control
5.

Quick reference guide

6. Preparing the device for use / mounting on a stand
7. Power supply
8. Operating the device, Settings and Display signals page 34
9. Troubleshooting
NOTE
Detailed instructions for the following activities can be found in the relevant sections of these
instructions for use. Strictly follow the sequence of the following activities during first time
use, to prevent damage to the device.
WARNING
With any action you take you should pay attention to the safety notes in the corresponding
paragraphs.
Power cord Battery charger
Lithium battery pack AD-AC power source
(optional accessory)

LCD Panel

Controllable
Battery Level Group (6)
C
Channel (16)
Fan Stop Sign
Light
Brightness
Temperature
page 30
page 33
page 36
