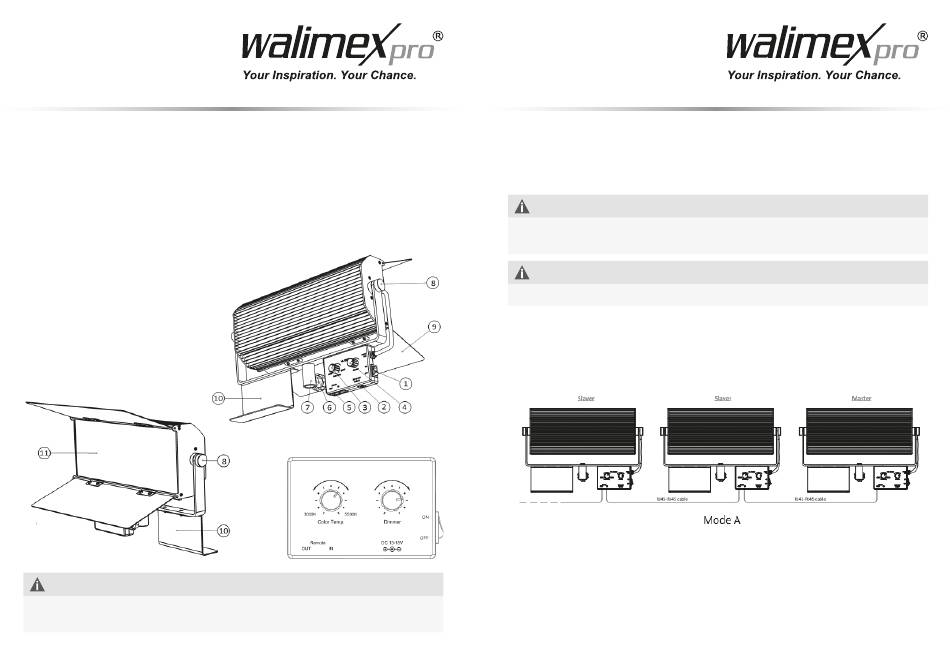

4. Overview of components and control elements
(The illustration may differ depending on the model)
1. On/Off-switch
2.
DC-socket 13-18V
3.
Controller to dim the colour temperature (depending on model type)
4.
Brightness control
5.
2x RJ45 - socket for cable remote control / connection of several lamps
6.
Clamping screw
7.
Tripod shot
8.
Locking screw for tilt angle
9.
Barndoors
10. Holder
11. Diffuser plate
NOTE
The colour temperature cannot be changed on each device.
Type dependent.
20
5. Preparing the devices for use
Mounting the device on a tripod
•
•
Fasten the video lamp with the tripod receptacle securely and reliably on
a tripod.
NOTE
Pay attention to the max. loading capacity of the tripod. Mind the weight of
the device – see technical data in these operating instructions.
NOTE
Ensure secure fastening of the individual lamp.
•
When used with cable remote control:
Connect the remote control with your device, using the RJ45 socket.
When using several lamps at the same time:
•
Use the RJ45 cable to connect the individual lamps
