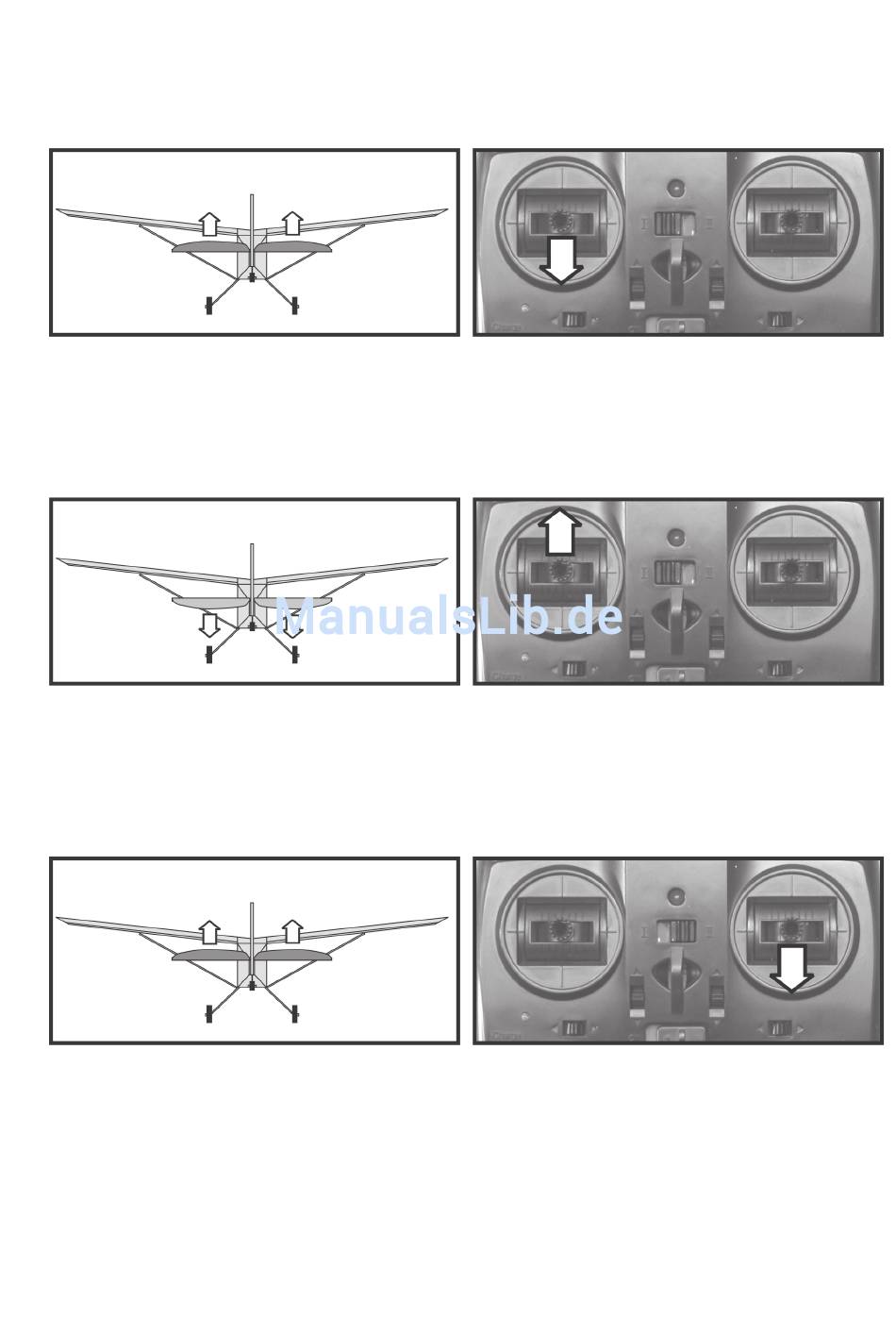

Elevator Function (Mode 1)
If the control stick for the elevator function (see figure 2, item 12) is moved down, the elevator must deflect to the top.
The rear rudder edge must be deflected upwards by approx. 4 - 5 mm. In flight, the landing gear is pressed downwards
and the model ascends.
If the control stick for the elevator function (see figure 2, item 12) is moved up, the elevator must deflect to the top. The
rear rudder edge must be deflected downwards by approx. 4 - 5 mm. In flight, the landing gear is pressed upwards and
the model dives. This control function is required to put the model into a normal light position if it wants to ascend too
much due to a control error or a gust of wind.
Elevator Function (Mode 2)
If the control stick for the elevator function (see figure 2, item 4) is moved down, the elevator must deflect to the top.
The rear rudder edge must be deflected upwards by approx. 4 - 5 mm. In flight, the landing gear is pressed downwards
and the model ascends.
50
Figure 13
Figure 14
Figure 15
