b) Installing the Wing Braces

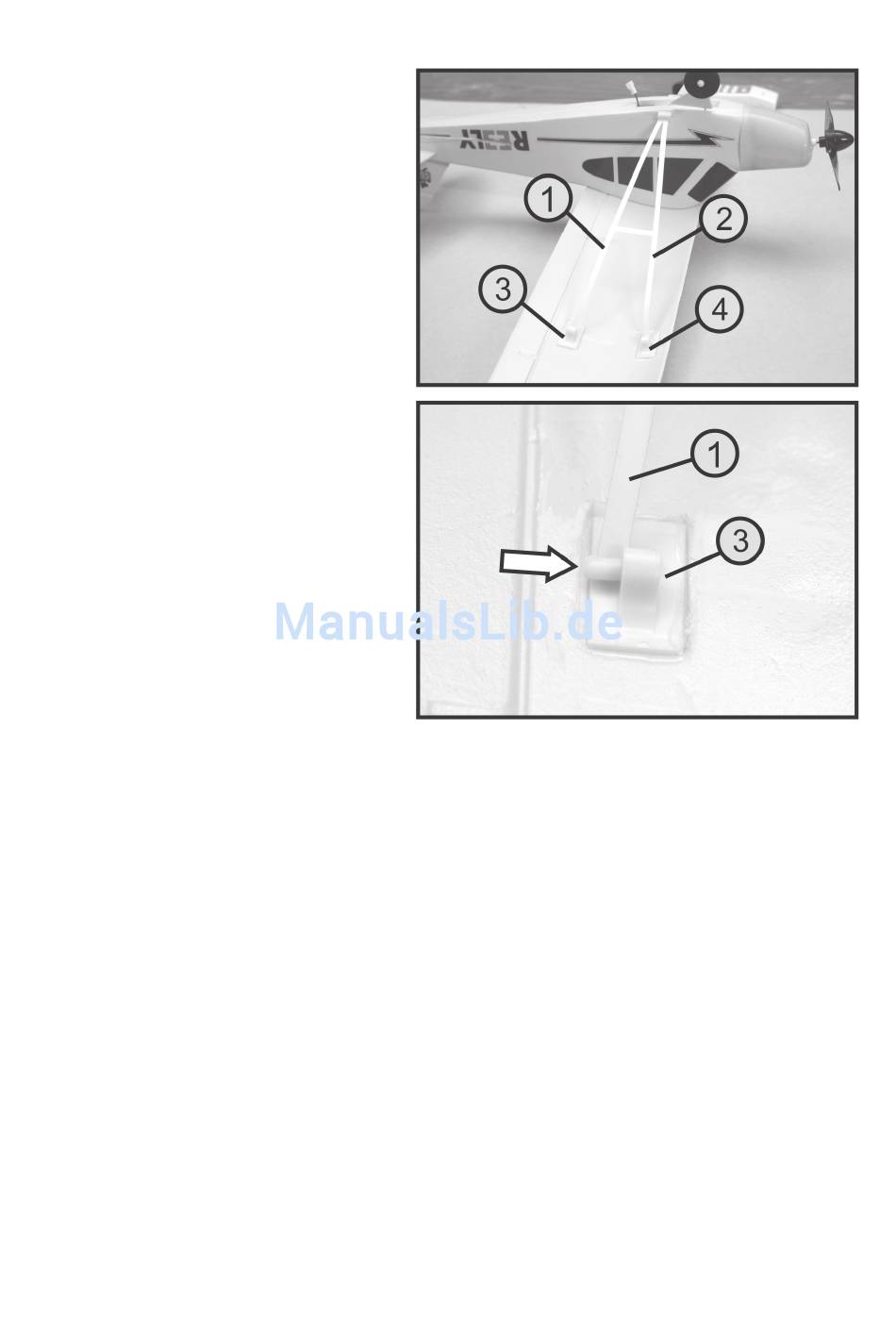

The two V-shaped wing braces have a slightly longer
arm (1) and an arm that is about 2 mm shorter (2).
Apply the braces to the model from below so that the
longer one of the two arms is connected to the rear
attachment point of the wind (3). The shorter arm is
connected to the front attachment point (4).
For this, the ends of the braces or the brace arms are
carefully inserted into the attachment points from the
die.
Figure 7
45
