SIW 6MU - SIW 11MU

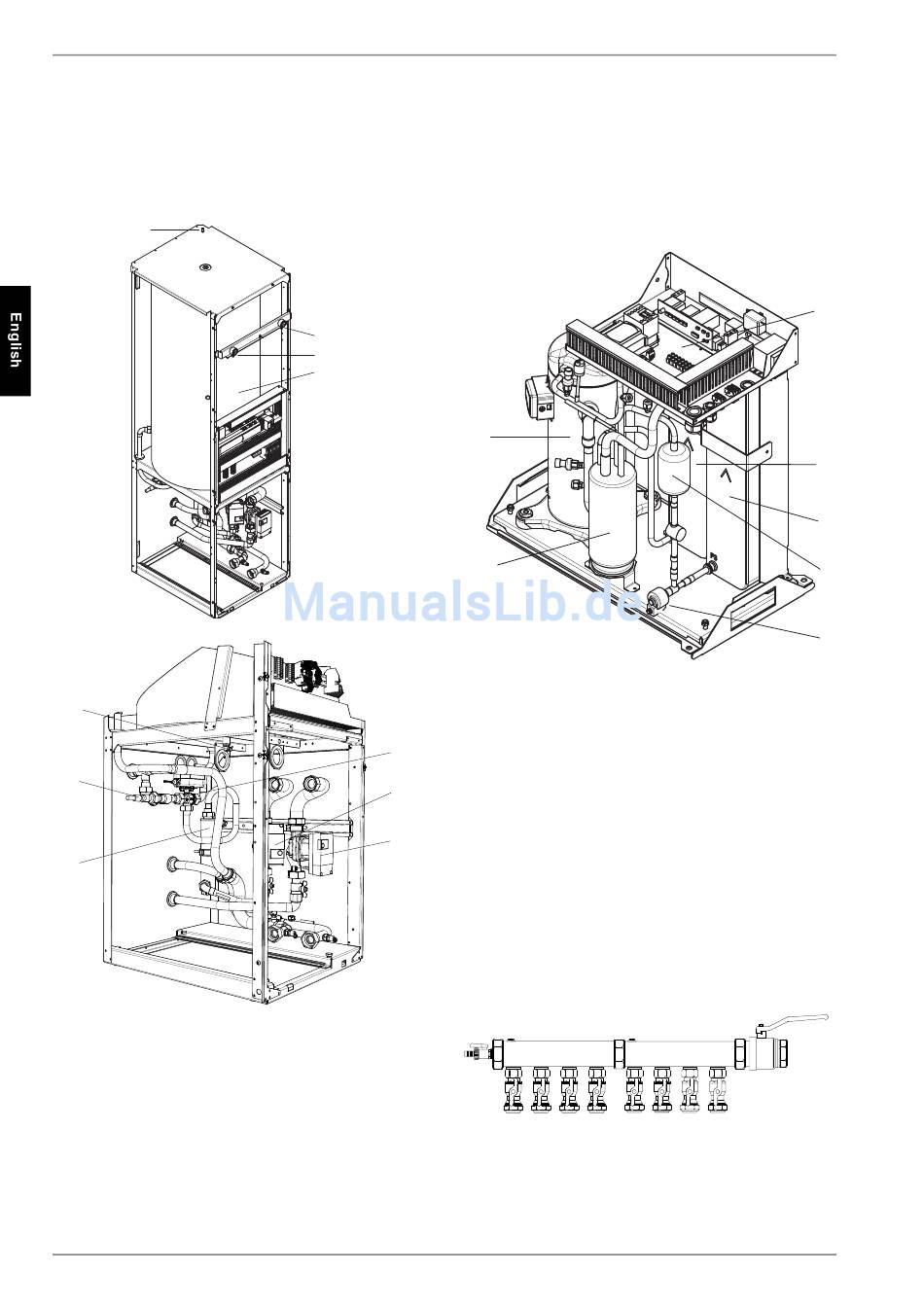

3.2 Brine-to-water hydraulic
module
The brine-to-water hydraulic module contains the components of
the heating and brine circuit required for connecting the heat
pump.
1
1 0
6
7
1) De-aeration
2) Heating pressure gauge
3) Brine pressure gauge
4) Domestic hot water cylinders
5) Reversing valve heating / hot water
6) Overflow valve
7) Pipe heater
8) Heat circulating pump
9) Brine circulating pump
10) Cylinder drainage
EN-4

3.3 Heat pump module

The refrigeration circuit is "hermetically sealed". It contains the
Kyoto protocol approved refrigerant R410A with a GWP value of
1975. It is CFC-free, does not deplete ozone and is non-flamma-
ble.
The heat pump module switch box contains all components re-
quired for operating the refrigeration circuit.
3
2
4
11
14
11) Compressor
12) Liquefier
13) Evaporator
14) Economiser
5
15) Filter dryer
16) Compensation pipe
8
17) Heat pump module switch box
9
4

4.1 Brine circuit manifold

The brine circuit manifold combines and connects the individual
collector or exchanger loops to create a main line connected to
the heat pump. The built-in ball valves can be closed off individ-
ually for de-aerating or emptying the brine circuits.
Fig. 4.1: Set-up of the brine circuit manifold or collector
The collector or heat exchanger pipes must be inserted into the
manifold from below in a bend (without tension), so that it is pos-
sible to compensate any length differences occurring between
the summer and winter months (tension cracks).
452236.66.02 · FD 9303

Accessories

17
12
13
15
16
