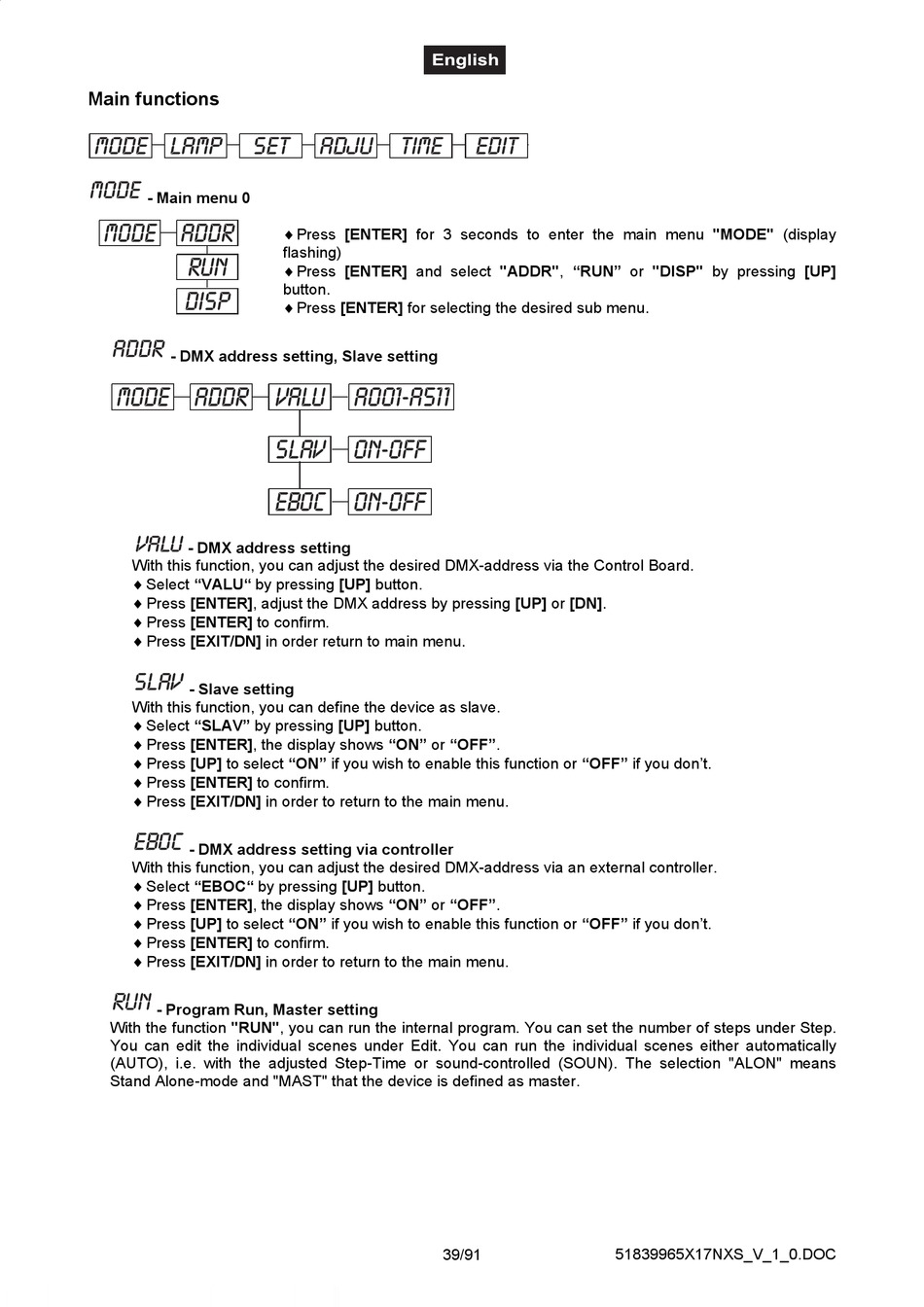

Main functions

- Main menu 0
- DMX address setting, Slave setting
- DMX address setting
With this function, you can adjust the desired DMX-address via the Control Board.
♦ Select "VALU" by pressing [UP] button.
♦ Press [ENTER], adjust the DMX address by pressing [UP] or [DN].
♦ Press [ENTER] to confirm.
♦ Press [EXIT/DN] in order return to main menu.
- Slave setting
With this function, you can define the device as slave.
♦ Select "SLAV" by pressing [UP] button.
♦ Press [ENTER], the display shows "ON" or "OFF".
♦ Press [UP] to select "ON" if you wish to enable this function or "OFF" if you don't.
♦ Press [ENTER] to confirm.
♦ Press [EXIT/DN] in order to return to the main menu.
- DMX address setting via controller
With this function, you can adjust the desired DMX-address via an external controller.
♦ Select "EBOC" by pressing [UP] button.
♦ Press [ENTER], the display shows "ON" or "OFF".
♦ Press [UP] to select "ON" if you wish to enable this function or "OFF" if you don't.
♦ Press [ENTER] to confirm.
♦ Press [EXIT/DN] in order to return to the main menu.
Run
- Program Run, Master setting
With the function "RUN", you can run the internal program. You can set the number of steps under Step.
You can edit the individual scenes under Edit. You can run the individual scenes either automatically
(AUTO), i.e. with the adjusted Step-Time or sound-controlled (SOUN). The selection "ALON" means
Stand Alone-mode and "MAST" that the device is defined as master.
♦ Press [ENTER] for 3 seconds to enter the main menu "MODE" (display
flashing)
♦ Press [ENTER] and select "ADDR", "RUN" or "DISP" by pressing [UP]
button.
♦ Press [ENTER] for selecting the desired sub menu.
39/91 51839965X17NXS_V_1_0.DOC
