(7) Take the device into operation and
set it up
f Observe chapter 6 „Putting into
operation and setup" on page 60
(8) Put the device on the magnetic carrier
5 Magnetic carrier is attached and the
device is placed
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
60
6

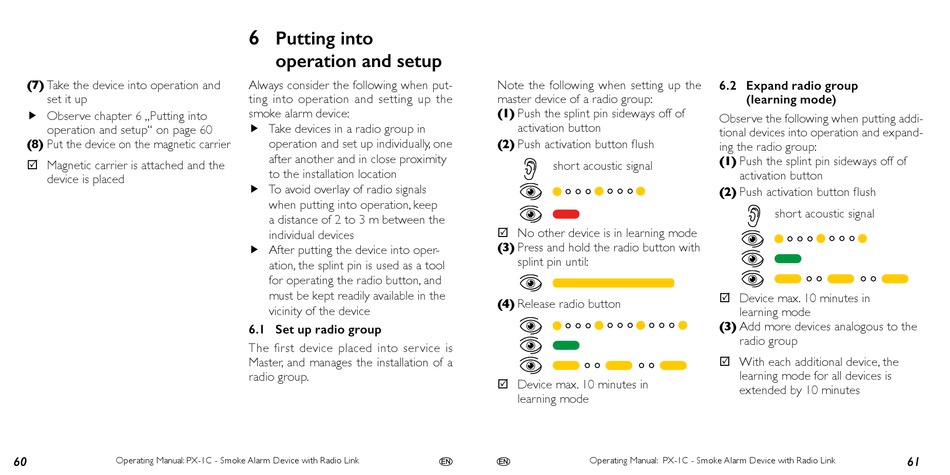

Putting into
operation and setup
Always consider the following when put-
ting into operation and setting up the
smoke alarm device:
f Take devices in a radio group in
operation and set up individually, one
after another and in close proximity
to the installation location
f To avoid overlay of radio signals
when putting into operation, keep
a distance of 2 to 3 m between the
individual devices
f After putting the device into oper-
ation, the splint pin is used as a tool
for operating the radio button, and
must be kept readily available in the
vicinity of the device
6.1 Set up radio group
The first device placed into service is
Master, and manages the installation of a
radio group.
Note the following when setting up the
master device of a radio group:
(1) Push the splint pin sideways off of
activation button
(2) Push activation button flush
short acoustic signal
5 No other device is in learning mode
(3) Press and hold the radio button with
splint pin until:
(4) Release radio button
5 Device max. 10 minutes in
learning mode
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
EN EN
6.2 Expand radio group
(learning mode)
Observe the following when putting addi-
tional devices into operation and expand-
ing the radio group:
(1) Push the splint pin sideways off of
activation button
(2) Push activation button flush
short acoustic signal
5 Device max. 10 minutes in
learning mode
(3) Add more devices analogous to the
radio group
5 With each additional device, the
learning mode for all devices is
extended by 10 minutes
