Splint pin (activation backup)
The splint pin (activation backup) is used
during the transport of the device to pro-
tect against accidental activation.
After commissioning the device, the splint
pin (activation backup) is used as a tool
for operating the radio button, and must
be kept readily available in the vicinity of
the device.
Activation button
The activation button is used to turn the
device on and off.
Magnetic carrier
The magnetic carrier is used for fastening
the device.
Signal LED
The signal LED displays results and inter-
mediate results during start-up of devices
and setting up of radio groups or shared
radio groups.
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
50
Radio button
The radio button is used for setting up
wireless connections between the devices.
Testing / stop button
(smoke alarm device cover)
The testing / stop button (smoke
a l a r m d e v i c e c ove r ) i s u s e d fo r
self-test, for correct wireless connection
between multiple devices, or between
devices of one radio group.
The testing / stop button (smoke alarm
device cover) can be actuated to interrupt
or stop the alarm and alert tones.
Smoke intake lamella
Through the smoke intake lamella, fire
smoke reaches the interior of the device
and can be detected by sensors.

4 Location selection

Attic
Top
Guest room
floor
Upper
floor
Bedroom
Ground
floor
Livingroom
Cellar
Heating

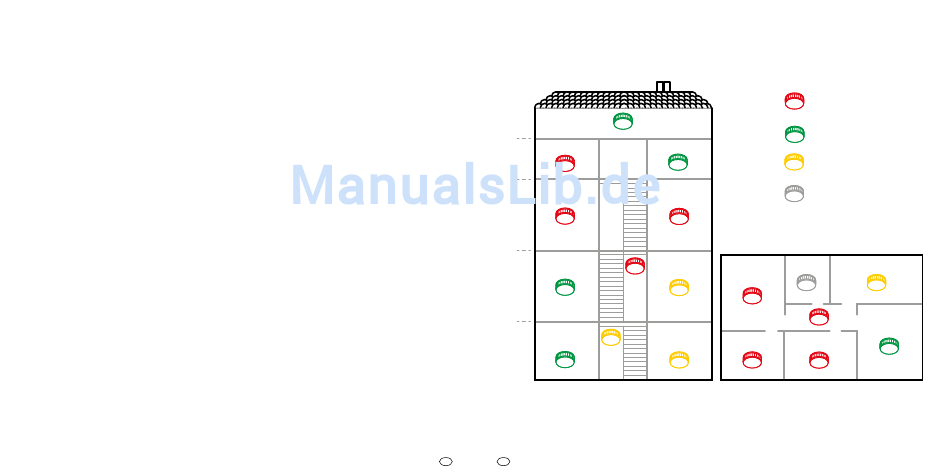

Fig. 3 Location selection
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
EN EN
Minimum equipment
Optimal equipment
Office
Conditional
Do not install due to
Children´s
steam
bedroom
Kitchen
Bedroom Bath-
room
Corridor
Workroom
Children´s
Children´s
Bedroom Bedroom
Kitchen
Livingroom
51
