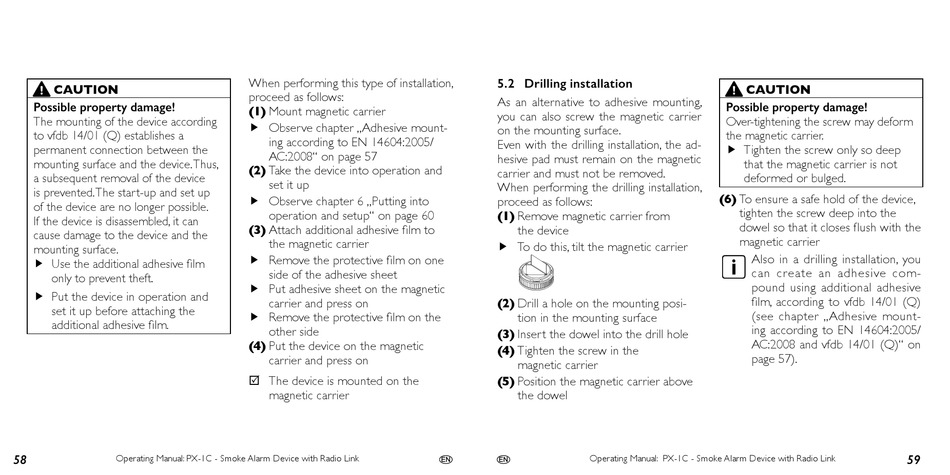

CAUTION
Possible property damage!
The mounting of the device according
to vfdb 14/01 (Q) establishes a
permanent connection between the
mounting surface and the device. Thus,
a subsequent removal of the device
is prevented. The start-up and set up
of the device are no longer possible.
If the device is disassembled, it can
cause damage to the device and the
mounting surface.
f Use the additional adhesive film
only to prevent theft.
f Put the device in operation and
set it up before attaching the
additional adhesive film.
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
58
When performing this type of installation,
proceed as follows:
(1) Mount magnetic carrier
f Observe chapter „Adhesive mount-
ing according to EN 14604:2005/
AC:2008" on page 57
(2) Take the device into operation and
set it up
f Observe chapter 6 „Putting into
operation and setup" on page 60
(3) Attach additional adhesive film to
the magnetic carrier
f Remove the protective film on one
side of the adhesive sheet
f Put adhesive sheet on the magnetic
carrier and press on
f Remove the protective film on the
other side
(4) Put the device on the magnetic
carrier and press on
5 The device is mounted on the
magnetic carrier
5.2 Drilling installation
As an alternative to adhesive mounting,
you can also screw the magnetic carrier
on the mounting surface.
Even with the drilling installation, the ad-
hesive pad must remain on the magnetic
carrier and must not be removed.
When performing the drilling installation,
proceed as follows:
(1) Remove magnetic carrier from
the device
f To do this, tilt the magnetic carrier
(2) Drill a hole on the mounting posi-
tion in the mounting surface
(3) Insert the dowel into the drill hole
(4) Tighten the screw in the
magnetic carrier
(5) Position the magnetic carrier above
the dowel
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
EN EN
CAUTION
Possible property damage!
Over-tightening the screw may deform
the magnetic carrier.
f Tighten the screw only so deep
that the magnetic carrier is not
deformed or bulged.
(6) To ensure a safe hold of the device,
tighten the screw deep into the
dowel so that it closes flush with the
magnetic carrier
Also in a drilling installation, you
can create an adhesive com-
pound using additional adhesive
film, according to vfdb 14/01 (Q)
(see chapter „Adhesive mount-
ing according to EN 14604:2005/
AC:2008 and vfdb 14/01 (Q)" on
page 57).
