EDID/DDC
HDCP
Mains unit
Dimensions

10. Available accessories

• RS232 cable pre-configurated (7447 000 410)
• VGA cable (7483 000 4xx)
• HDMI cable, typ A, 19-pin (5809 000 1xx)
• DP to HDMI cable (5809 000 60x)
• HDMI media switch cable (5809 000 099)
• VGA media switch cable (7483 000 300)
• Neets media control (5555 000 0x0)

11. Application examples

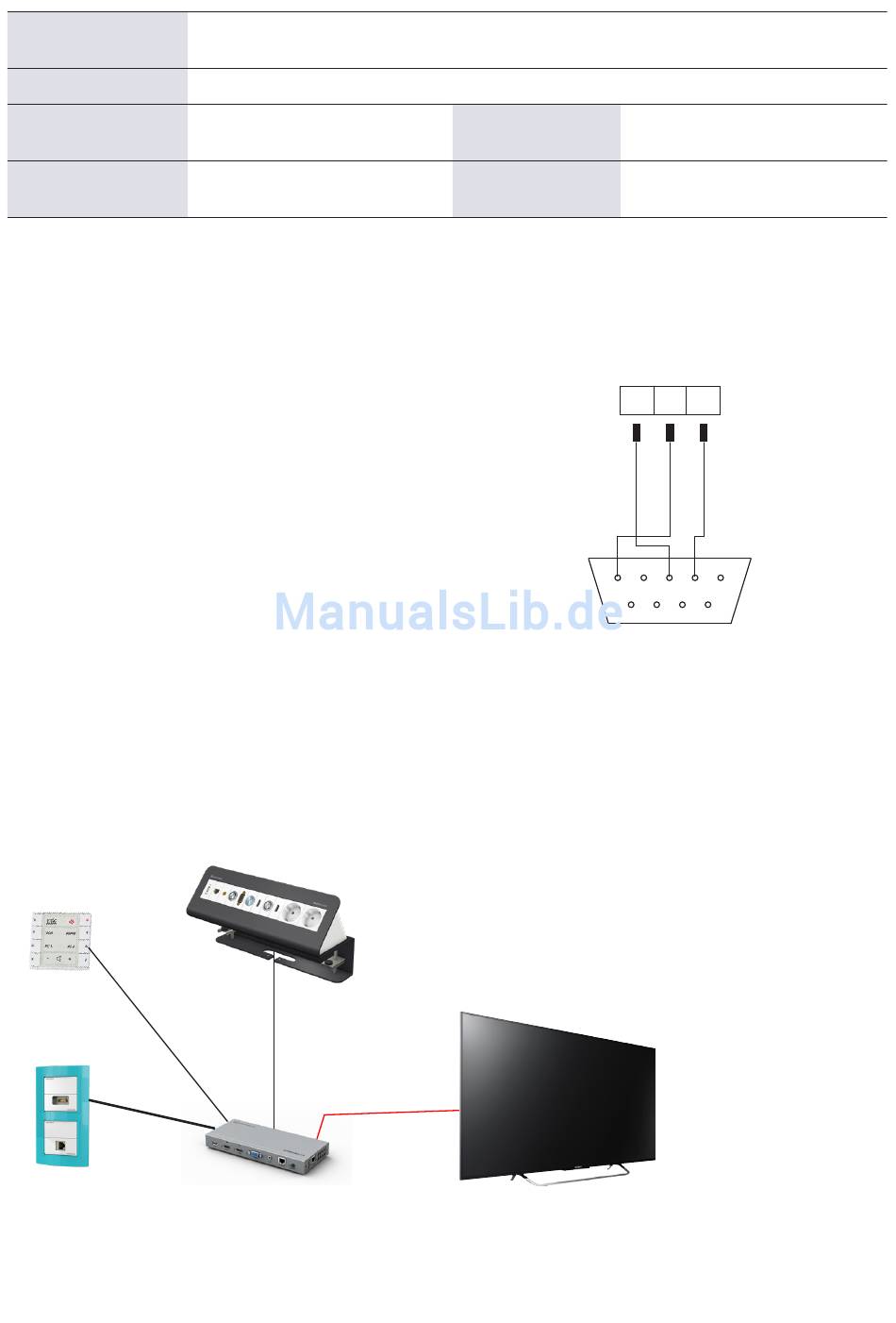

11.1 Single-table solution with HDBT wall-connection
Media control
RS232
(5555 000020)
Link Out
Link In
HDBT
Transmitter
(7456000 543)
Supports Extended Display Identification Data (EDID) and Display Data Channel
(DDC) data via DVI and HDMI Standards, EDID and DDC signals
Compatible with high-bandwidth Digital Content Protection (HDCP 2.0).
100 VAC ~ 240 VAC, 50/60 Hz
secondary 12 V DC, 3A
Transmitter:
223 x 26 x 99 mm (WxHxD)
2 x HDMI, VGA
Control + LED
Energy
consumption
Weight
HDMI
12 W max.
(without charging function)
approx. 0.8 kg
(without mains unit)
Rx GND Tx
5 1
RS232-Buchse
9 6
Sub-D9
RS232-Kabel
RS232
Quickselect
PC
