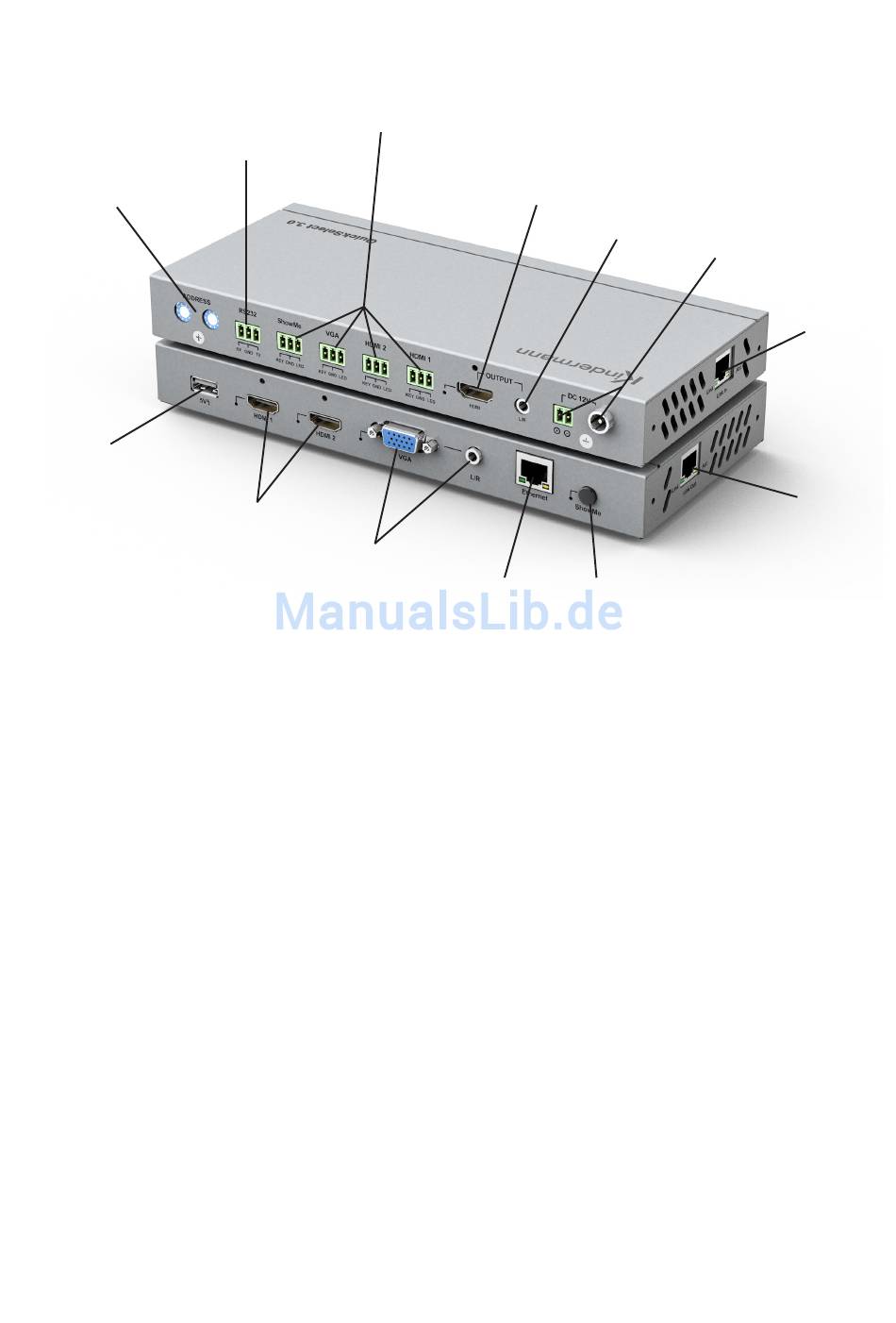

2. Connections on the front and rear
Device address:
Dial switch
00 to 99
(99 = Automatic)
Rear side
Front side
USB socket
for charging
Smartphone etc.
(max. 5V/2A)
and for firmware
updates

3. Scope of delivery

• 1 x Kindermann QuickSelect 3.0+
• 1 x mains unit 100-240 V~ / 12 V DC, 3 A, with screwable extra-low voltage connection
• 2 x mounting bracket for under-desk mounting of the device
• 4 x device feet
• 5 x screw/plug connection terminal, 3-pin; 1 x 2-pin for mains unit
• 1 x screw/plug connection terminal, 3-pin; with short-circuit (Quick-Setup jumper)
• 1 x quick setup manual
The free configuration software for download can be found on our dealer portal (for resellers only):
http://shop.kindermann.de/erp/webshop/navigationPath/7447000500.html

4. System description

The QuickSelect 3.0+ is a multi-format switch for transmission of analogue and digital AV signals via a
HDBT bus system in serial circuit (Daisy Chain) or ring circuit.
The QuickSelect 3.0+ is transmitter and receiver at the same time. The device has signal inputs for:
2 x HDMI, 1 x VGA plus analogue stereo-audio, 1x HDBT-In as well as an Ethernet connection. If a Quick-
Select of the chain is connected to a network switch via an Ethernet connection, the network access is
available on every device.
Up to 32 devices devices can be connected in series with a Cat-6 cable (AWG 23) (Daisy Chain). The
maximum length of the cat cable between two devices is 100 metres each (1080p). When used in a setup
of a closed ring circuit (ring topology) the same picture can be output at all seats. The device has signal
outputs for 1x HDMI plus analogue stereo-audio and 1x HDBT-Out.
22
ShowMe connections
for external buttons
with status-LED feedback
RS232-
connection
2x HDMI
input
VGA + audio
input
HDMI
output
Audio
output
Ethernet
ShowMe
10/100Mbit
button
Mains unit
DC 12V 3A
HDBT
input
link in
HDBT
output
link out
