VGA Timing characteristics
VGA signals: Available resolutions and refresh rates
Native/preferred timing
Modeline
Detailed timing #1
Modeline
Detailed timing #2
Modeline
Standard timings supported

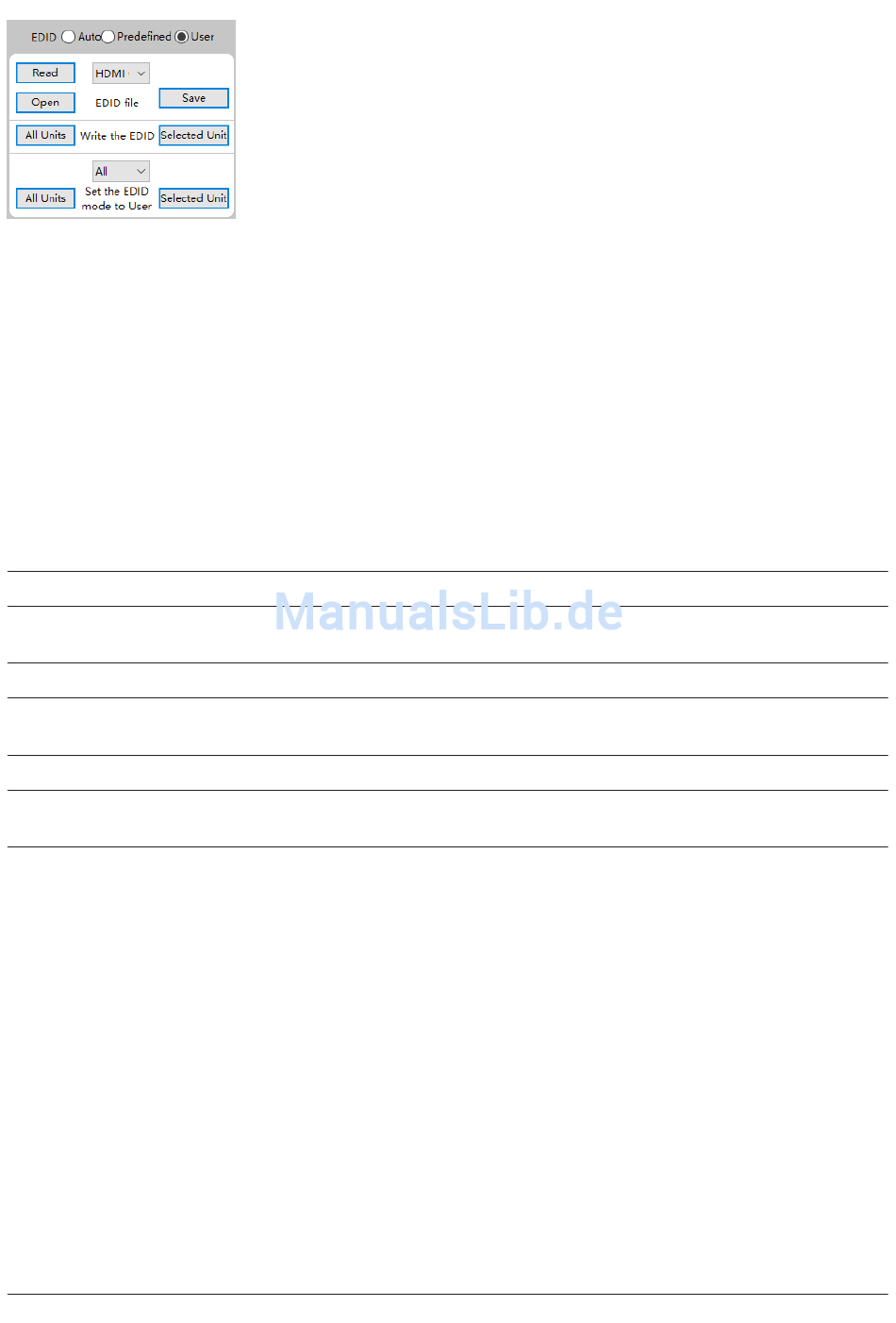

3. In EDID mode ‚User', you can load customized EDID tables and
write to the respective HDMI inputs:
In the upper pulldown menu, you can read out the respective EDID
table of the connected output device or the tables filed in the inputs
Note: This in turn can be saved locally as a file. Under 'Open', you can
load a customized table that will be filed in the memory for ‚user-
specific EDID' under ‚Write the EDID'. To activate this table, the EDID
mode of the respective QuickSelect 3.0 + must be set to 'User'. In the
pulldown menu 'Set the EDID mode to User Mode', you can choose if
the user EDID memory is to be activated for the input HDMI1, HDMI2
or for both. On the left, for all devices that were found under ‚Auto
Detect'; on the right only for the selected device (framed red).
Note: The EDID information of the VGA input cannot be changed!
1920x1080p at 60Hz (16:9)
„1920x1080" 148,500 1920 2008 2052 2200 1080
1081 1085 1125 +hsync +vsync
1366x768p at 60Hz
„1366x768" 85,500 1366 1436 1579 1792 768 771
774 798 +hsync +vsync
1920x1200p at 60Hz (16:10)
„1920x1200" 154,000 1920 1968 2000 2080 1200
1203 1209 1235 +hsync -vsync
720 x 400p at 70Hz - IBM VGA
640 x 480p at 60Hz - IBM VGA
640 x 480p at 72Hz - VESA
640 x 480p at 75Hz - VESA
800 x 600p at 60Hz - VESA
800 x 600p at 72Hz - VESA
800 x 600p at 75Hz - VESA
832 x 624p at 75Hz - Apple Mac II
1024 x 768p at 60Hz - VESA
1024 x 768p at 70Hz - VESA
1024 x 768p at 75Hz - VESA
1280 x 1024p at 75Hz - VESA
1152 x 870p at 75Hz - Apple Mac II
1280 x 960p at 75Hz - VESA STD
1600 x 1200p at 60Hz - VESA STD
1280 x 800p at 60Hz - VESA STD
1920 x 1080p at 60Hz - VESA STD
1400 x 1050p at 75Hz - VESA STD
