3. switch on external power amps
When switching the power off, please proceed in the opposite order.
58 - MIDI IN/OUT
The MIDI IN/OUT ports allow connecting MIDI devices to the PowerMate. Next to the PC MIDI interface controlling the
effect unit is possible via MIDI IN, please see page 26 for details.
59 - S O R
PEAKER UTPUTS IGHT
The PowerMate is equipped with professional Speakon high-performance connectors, offering electrical and mechanical
secure connection, which complies to all security regulations. It also allows the use of high quality speaker cables with
2
diameters of 4 x 2,5mm . The pin assignment is shown at the rear panel of the PowerMate.
CAUTION: The symbol representing the speaker connectors indicates the presence of touch-sensible voltages,
which can cause harm to body and health. Please, be sure to adhere to corresponding notes and
instructions in this owner's manual when establishing speaker connections.
HINT: Using passive subwoofers, that add the input signal of the left and right channel, is not possible for techni-
cal reasons.
22
/ L
EFT

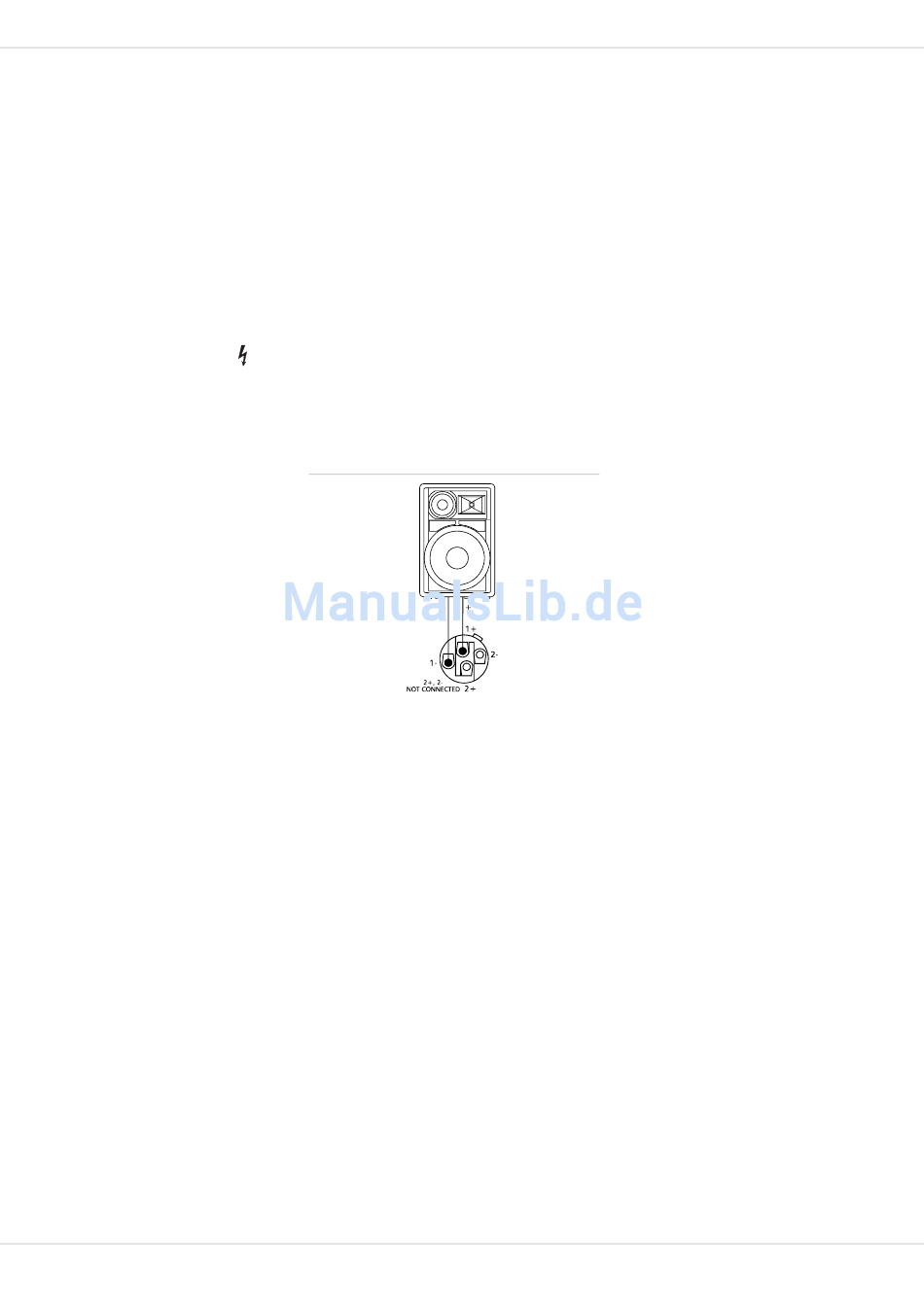

Illustration 2-11: Connection of a passive speaker
