Radio Insert Switch RSL Mini, 3500 W
Item no. 1181990
Intended use
With the built-in radio receiver switch, a connected device can be turned on and off wirelessly using a suitable
radio remote control from the RSL system. For example, this includes RSL radio remote controls, door and
window contacts, wall-mounted switches and wireless motion detectors.
The built-in radio receiver switch is only suitable for use on a mains connection with a voltage of 230 V/ AC,
50 Hz. A maximum load of 3500 W (ohmic load) / 600 W (inductive load) can be connected. Ohmic
loads arise mainly from devices that execute their functions through electrical resistance. Devices with
a predominantly ohmic load include incandescent bulbs, heating appliances and other similar devices.
Devices with an inductive load include motors, ballasts, conventional transformers (no switched-mode power
supplies), energy-saving light sources and other similar devices. These contain coils which produce electrical
resistance that counteracts the flow of the current.
For safety and approval purposes (CE), you must not rebuild and/or modify this product. If you use the
product for purposes other than those described above, the product may be damaged. In addition, improper
use can cause hazards such as short circuiting, fire, electric shock etc. Read the instructions carefully and
keep them. Make this product available to third parties only together with its operating instructions.
This product complies with the statutory national and European requirements. All company names and
product names are trademarks of their respective owners. All rights reserved.
Delivery content
• Radio Insert Switch RSL Mini 3500 W
• Operating instructions
Safety instructions
Read the operating instructions carefully and especially observe the safety information.
If you do not follow the safety instructions and information on proper handling in this
manual, we assume no liability for any resulting personal injury or damage to property.
Such cases will invalidate the warranty/guarantee.
a) Persons / Product
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. These may become dangerous
playing material for children.
• Protect the product from extreme temperatures, direct sunlight, strong jolts, high humidity,
moisture, flammable gases, vapours and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and protect it from
any accidental use. Safe operation can no longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height can damage
the product.
• Also observe the safety and operating instructions of any other devices which are connected
to the product.
• The product must only be installed by a qualified electrical technician (e.g. electrician) who is
familiar with the relevant regulations (e.g. VDE)!
• Conducting improper work on mains electricity endangers not only yourself but also others!
• If you do not possess the technical knowledge necessary for the installation, do not undertake
the installation work yourself; consult a technician.
• In industrial facilities, the accident prevention regulations for electrical equipment and facilities
issued by the Industrial Employers' Liability Association must be adhered to!
• Do not use this product in hospitals or medical facilities. Although the sensors of the RSL
system transmit relatively weak radio signals, they could lead to malfunctions in life-support
systems. The same could also apply to other areas.
• The product must only be operated using mains voltage (see "Connection and installation" and
"Technical data"). Never try to operate the device using another voltage as this will destroy
the product.
• Installation may only take place when all the cables to the receiver switch have been isolated
from the mains connection. Failure to do so may result in risk of death due to electrical shock!
• The product must only be installed and operated in dry, enclosed rooms. It must not become
damp or wet! Never touch the product with damp or wet hands! Doing so may result in risk of
death due to electrical shock!
• An all-pole disconnection from the mains voltage (e.g. RCD) must be provided as part of the
wiring set-up.
• The product must only be installed and operated in a fixed position. For example, mount the
product in a suitable flush-mounting or surface-mounting box.
• The product must not be subjected to extreme temperatures, strong vibrations or strong
mechanical loads.
b) Miscellaneous
• Consult an expert when in doubt about operation, safety or connection of the device.
• Maintenance, modifications and repairs are to be performed exclusively by an expert or at a
qualified shop.
Version 03/15
• If you have questions which remain unanswered by these operating instructions, contact our
technical support service or other technical personnel.
Preparations for installation
Be sure to refer to the "Safety instructions" section.
• The receiver switch must be mounted and operated in a suitable flush-mounting / surface-mounting box or
other suitable housing (with a depth of at least 40 mm).
• The receiver switch must only be installed and operated in a fixed position.
• The receiver switch must only be installed when the mains supply is disconnected. Disconnect the mains
power supply by disconnecting the circuit breaker and unscrewing the fuse. Protect against unauthorized
reconnection, e.g. with a warning sign.
• In addition, disconnect the residual current operated circuit breaker (RCCB) so that the mains cable is fully
isolated from the mains voltage.
• For safety, check that there is no current in the power wires using a suitable measuring device.
Connection and installation
Refer to the "Preparations for installation" section.

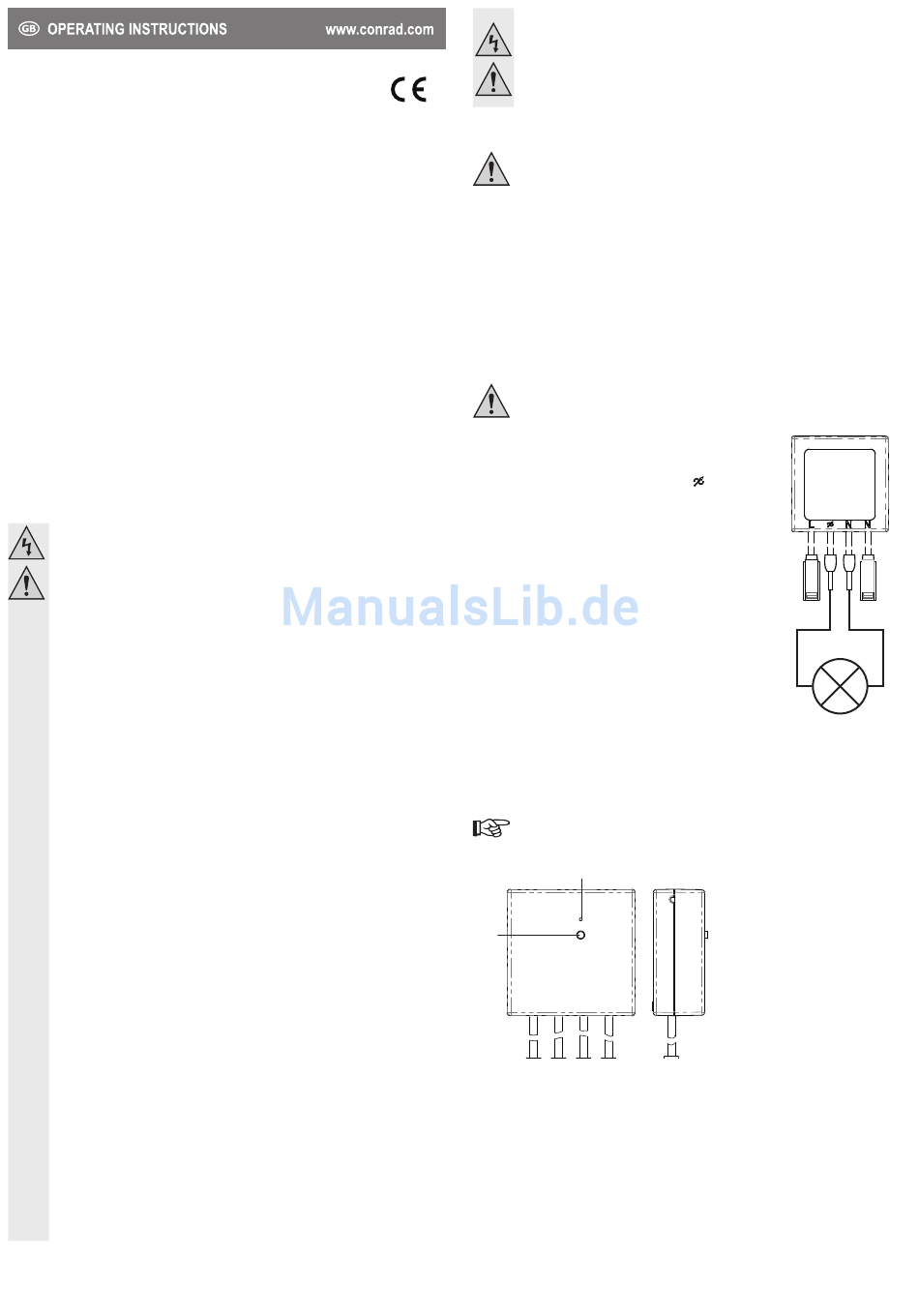

1. Connect the device that you wish to switch to the two inner
connections on the receiver switch; see the schematic diagram
on the right.
2. The "N" connection is the neutral conductor; the " " connection is
the switched output/phase/L.
3. The outer connections with the two push terminals are for
connection to the mains ("N" = neutral conductor, "L" = phase).
4. The RSL Mini 3500 W built-in radio receiver switch is designed to
be inserted directly into a flush-mounted or surface-mounted box.
5. When mounting, ensure that the button on the back of the housing
is exposed and not pressed accidentally.
6. The button on the back of the housing is used (among other
things) to train the receiver switch to connect to a radio transmitter
on the RSL system.
Observe the following sections before sealing the flush-mounted or
surface-mounted box and putting the product into

Operation

a) Training the receiver switch to connect to a remote control
The receiver switch can be taught to connect to a radio transmitter on an RSL system such as a wall-
mounted radio transmitter or a radio remote control. Pay attention to the details in the instruction manual for
the transmitter you are using.
Up to 8 different radio transmitters on the RSL system can be learnt. The receiver switch can
then be turned on or off from different places.
1
1 Button
Follow the steps below to train the switch:
Usage scenario: No radio codes saved
1. Connect the receiver switch to the mains. The LED indicator (2) begins to flash red; the receiver switch
is in learning mode.
2. Press the control button on the RSL radio transmitter. The on/off control buttons are often marked with
"ON" or "OFF". Keep the button on the RSL radio transmitter pressed down until the LED indicator next
to the button on the receiver switch stops flashing. The radio code for this transmitter is now recognised
and saved.
3. The learning procedure has been successfully completed; the device exits automatically from the
learning mode.
operation.-
2
2 LED indicator
