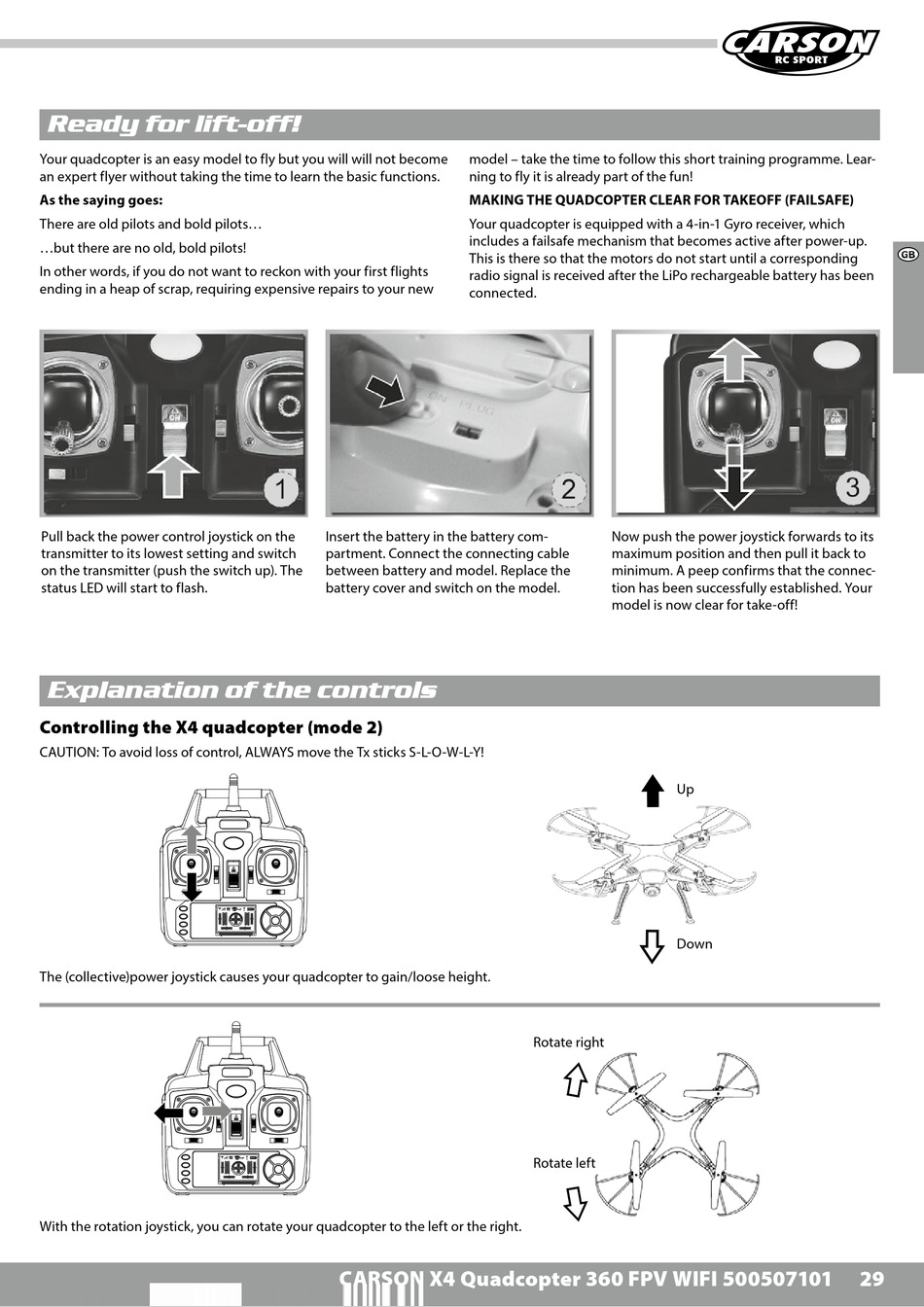

Ready for lift-off!

Your quadcopter is an easy model to fly but you will will not become
an expert flyer without taking the time to learn the basic functions.
As the saying goes:
There are old pilots and bold pilots...
...but there are no old, bold pilots!
In other words, if you do not want to reckon with your first flights
ending in a heap of scrap, requiring expensive repairs to your new
Pull back the power control joystick on the
transmitter to its lowest setting and switch
on the transmitter (push the switch up). The
status LED will start to flash.

Explanation of the controls

Controlling the X4 quadcopter (mode 2)
CAUTION: To avoid loss of control, ALWAYS move the Tx sticks S-L-O-W-L-Y!
The (collective)power joystick causes your quadcopter to gain/loose height.
With the rotation joystick, you can rotate your quadcopter to the left or the right.
model – take the time to follow this short training programme. Lear-
ning to fly it is already part of the fun!
MAKING THE QUADCOPTER CLEAR FOR TAKEOFF (FAILSAFE)
Your quadcopter is equipped with a 4-in-1 Gyro receiver, which
includes a failsafe mechanism that becomes active after power-up.
This is there so that the motors do not start until a corresponding
radio signal is received after the LiPo rechargeable battery has been
connected.
Insert the battery in the battery com-
partment. Connect the connecting cable
between battery and model. Replace the
battery cover and switch on the model.
CARSON X4 Quadcopter 360 FPV WIFI 500507101
Now push the power joystick forwards to its
maximum position and then pull it back to
minimum. A peep confirms that the connec-
tion has been successfully established. Your
model is now clear for take-off!
Up
Down
Rotate right
Rotate left
