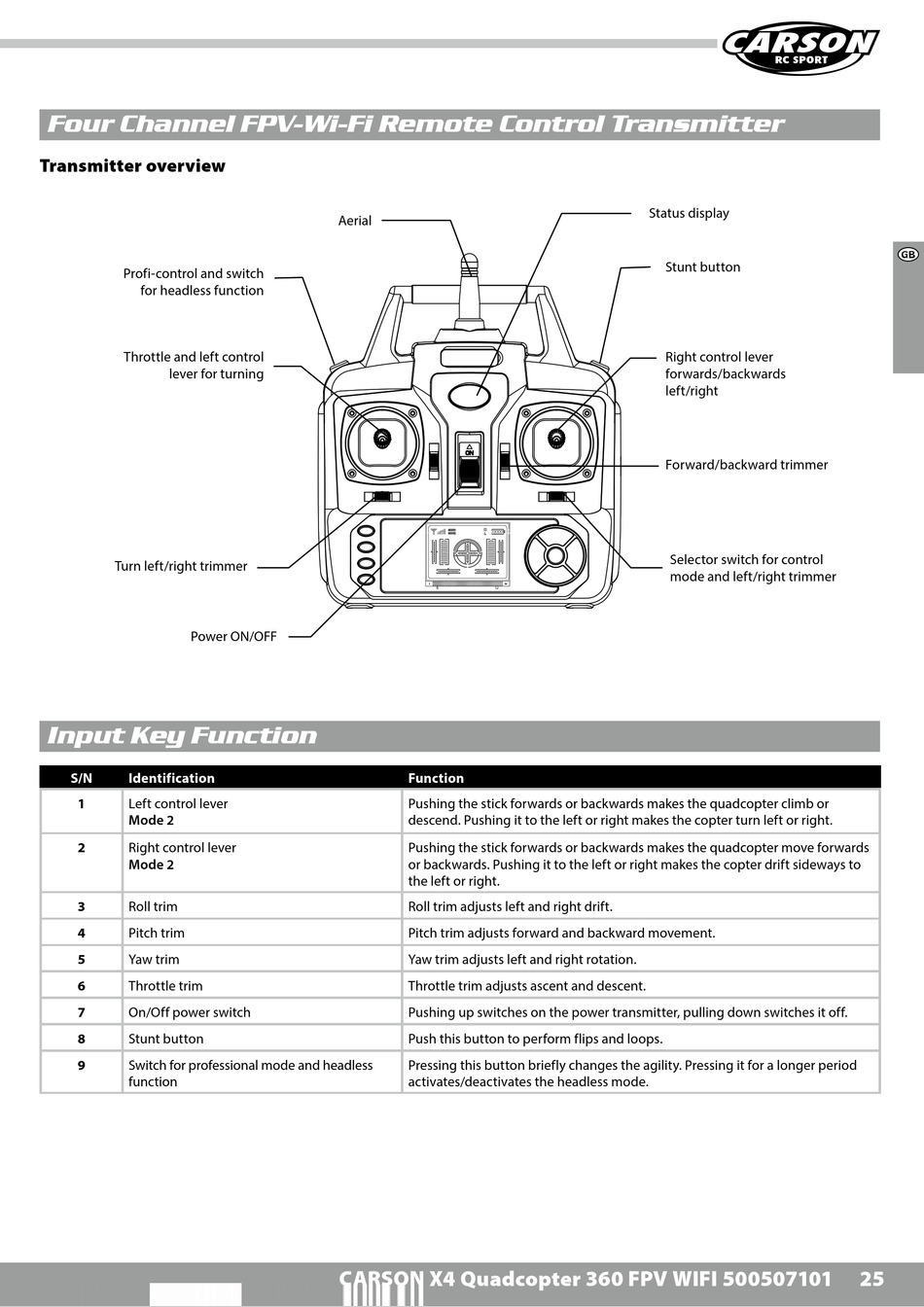

Four Channel FPV-Wi-Fi Remote Control Transmitter
Transmitter overview
Profi-control and switch
for headless function
Throttle and left control
lever for turning
Turn left/right trimmer
Power ON/OFF

Input Key Function

S/N Identification
1
Left control lever
Mode 2
2
Right control lever
Mode 2
3 Roll trim
4
Pitch trim
5
Yaw trim
6
Throttle trim
7
On/Off power switch
8 Stunt button
9 Switch for professional mode and headless
function
Aerial
Function
Pushing the stick forwards or backwards makes the quadcopter climb or
descend. Pushing it to the left or right makes the copter turn left or right.
Pushing the stick forwards or backwards makes the quadcopter move forwards
or backwards. Pushing it to the left or right makes the copter drift sideways to
the left or right.
Roll trim adjusts left and right drift.
Pitch trim adjusts forward and backward movement.
Yaw trim adjusts left and right rotation.
Throttle trim adjusts ascent and descent.
Pushing up switches on the power transmitter, pulling down switches it off.
Push this button to perform flips and loops.
Pressing this button briefly changes the agility. Pressing it for a longer period
activates/deactivates the headless mode.
