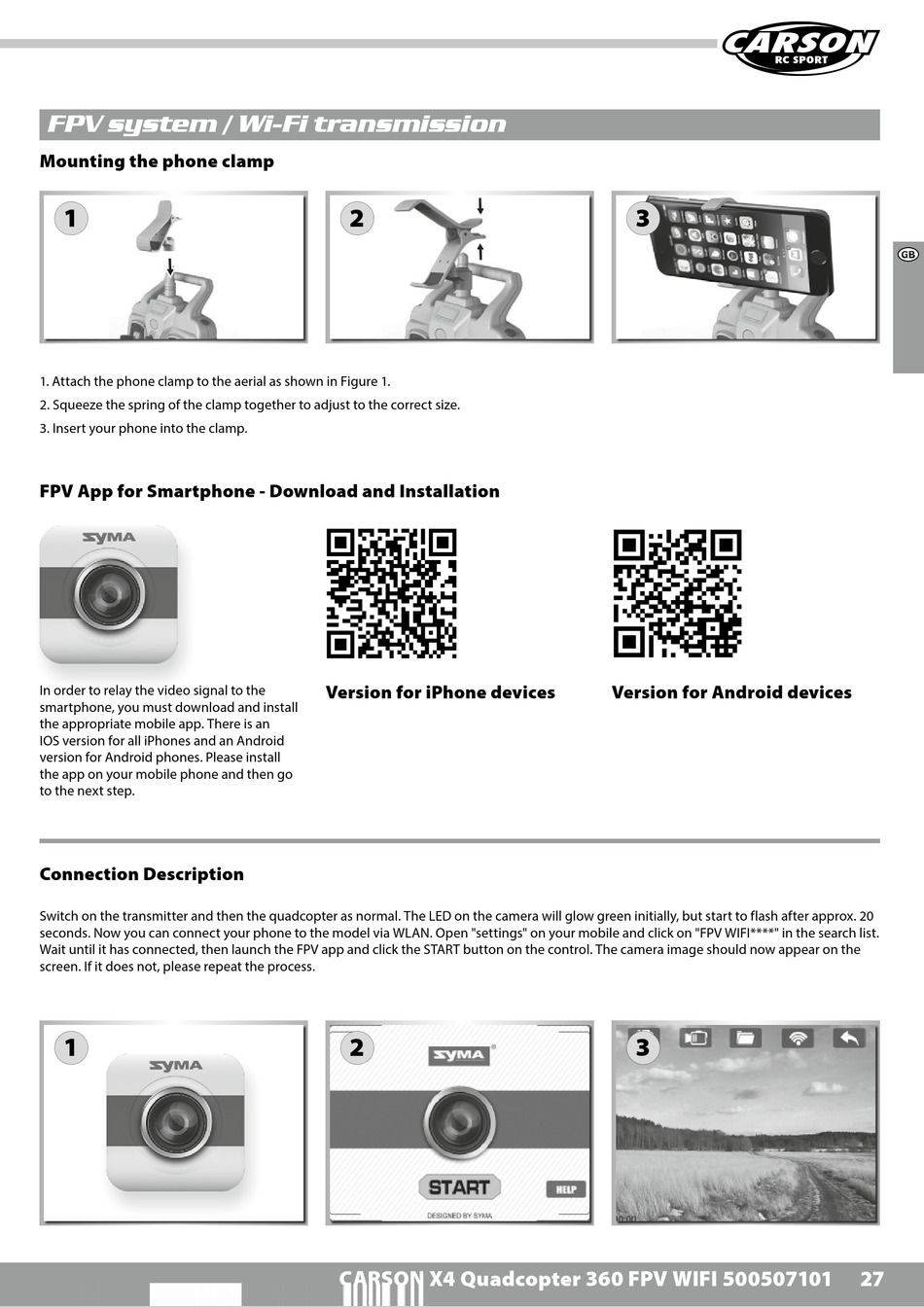

FPV system / Wi-Fi transmission

Mounting the phone clamp
1
1. Attach the phone clamp to the aerial as shown in Figure 1.
2. Squeeze the spring of the clamp together to adjust to the correct size.
3. Insert your phone into the clamp.
FPV App for Smartphone - Download and Installation
In order to relay the video signal to the
smartphone, you must download and install
the appropriate mobile app. There is an
IOS version for all iPhones and an Android
version for Android phones. Please install
the app on your mobile phone and then go
to the next step.
Connection Description
Switch on the transmitter and then the quadcopter as normal. The LED on the camera will glow green initially, but start to flash after approx. 20
seconds. Now you can connect your phone to the model via WLAN. Open "settings" on your mobile and click on "FPV WIFI****" in the search list.
Wait until it has connected, then launch the FPV app and click the START button on the control. The camera image should now appear on the
screen. If it does not, please repeat the process.
1
2
Version for iPhone devices
2
CARSON X4 Quadcopter 360 FPV WIFI 500507101
3
Version for Android devices
3
