ENGLISH

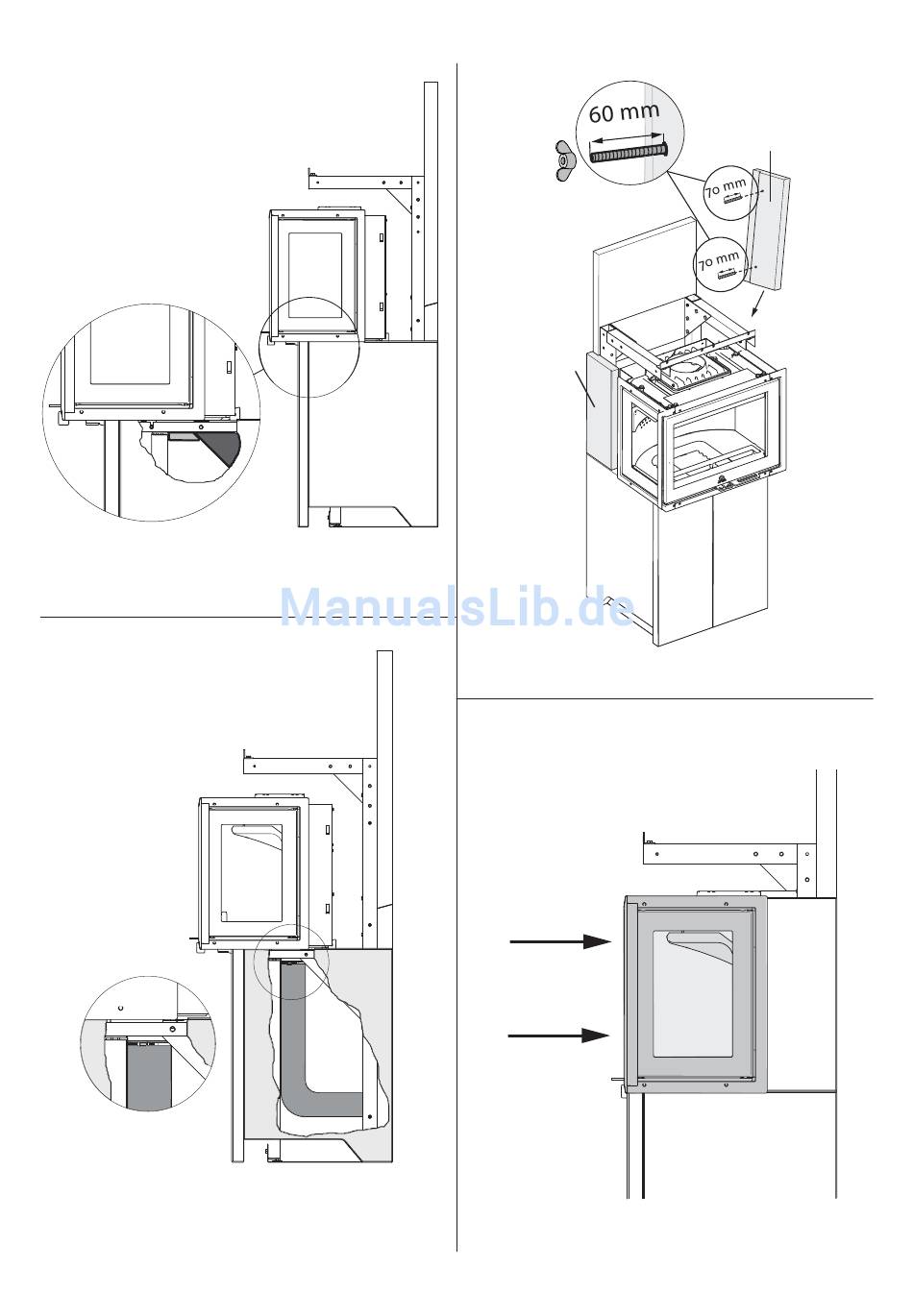

Fig. 18B
• Do not push the burnchamber completely into position until
the flexible hose has been connected.
Fig. 18C
• If a flexible outside air supply duct is to be installed, attach it
to the air supply connector on the bottom of the burnchamber
(optional extra).
30
Fig. 18D
A
• Screw the soapstone side plates to the frame with the
screws and nuts (not too hard).
Fig. 18E
Now slide the burnchamber into place in the surround. Remember
to remove the cardboard/etc. used to protect the soapstone.
A
