Voltage Measurement

Do not connect more than 600 V AC / DC to the input sockets. Exceeding these va-
lues can endanger the operator, and may result in damage to the instrument.
Before switching to a new function, disconnect the probes from the UUT.
Only handle test leads and probes on the grips provided. Avoid touching the pro-
bes under any circumstances.

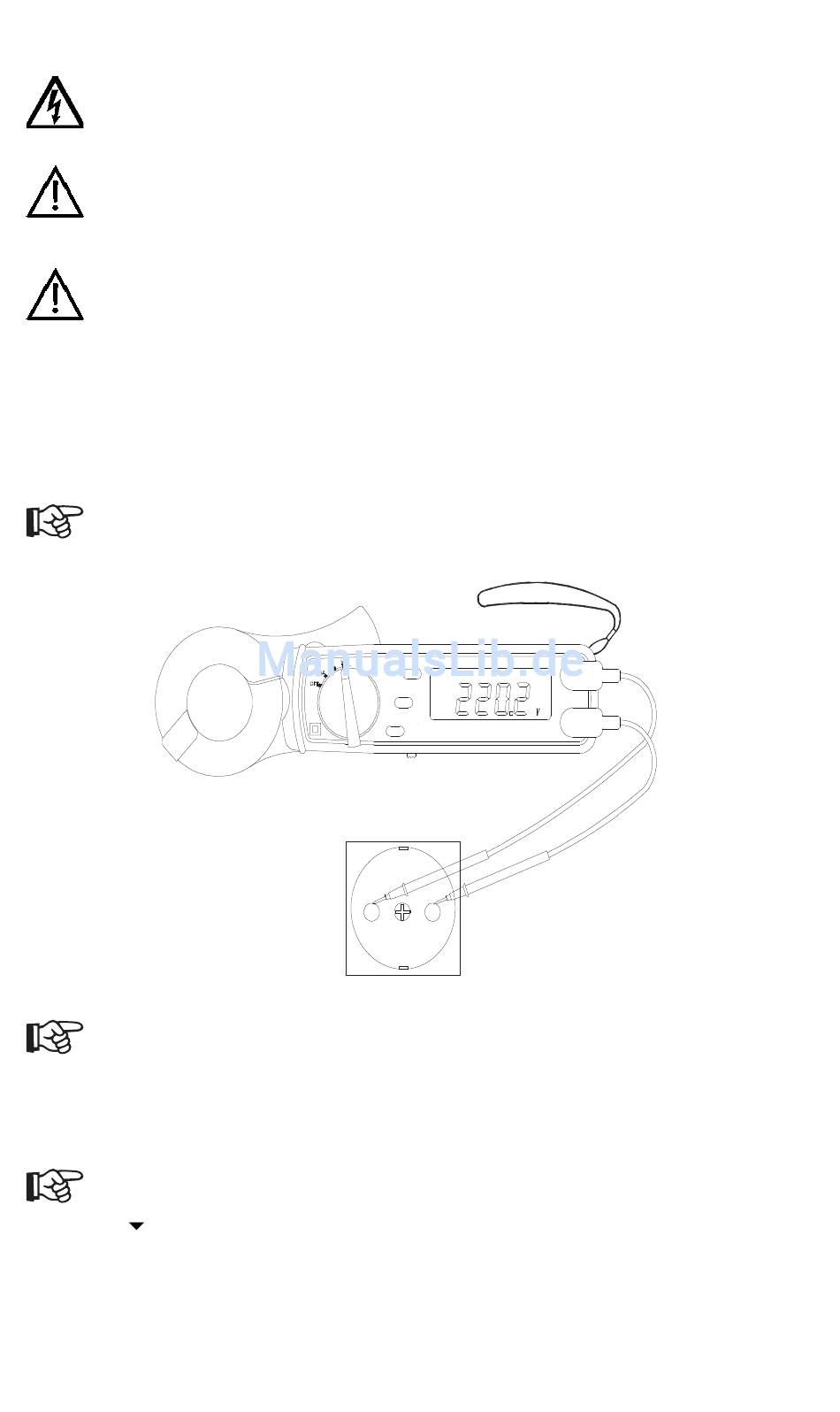

1) Turn selector switch (3) to "~V"
2) Plug the black test lead into the "COM" socket and the red lead into the "VΩ"
socket
3) Connect the probes to the UUT and read the display
Only use the frequency range switch (10) for hamrmonics wave
measurement.
If the display is not visible during measurement, press the "HOLD" button (4) to
retain the display. The clamp can then be removed from the conductor and the sto-
red value read.
Addtional it´s possible to activate the MAX.-MIN.- PEAK measurement. Press the
key (4) to select the mode.
